Description
Our ASTM D412 sample cutter die enables consistent preparation of dogbone-shaped specimens for tensile testing of rubbers and elastomers. This die conforms strictly to the dimensional requirements outlined in the ASTM D412 standard.
Whether you're in a materials testing lab, a plastic manufacturing facility, or a quality assurance department, our ASTM D412 cutter die ensures your specimens meet the standard every time.
Need More Than Just the Die?
We also offer a full range of Universal Testing Machines and grips designed to run ASTM D638 tests with accuracy and reliability. Contact us to configure a complete testing solution for your lab.
Features and Benefits
- Standard-Compliant: Fully meets ASTM D412 specifications for tensile test specimens.
- Produces consistent dogbone shapes for reliable tensile test comparisons.
- Suitable for manual presses.

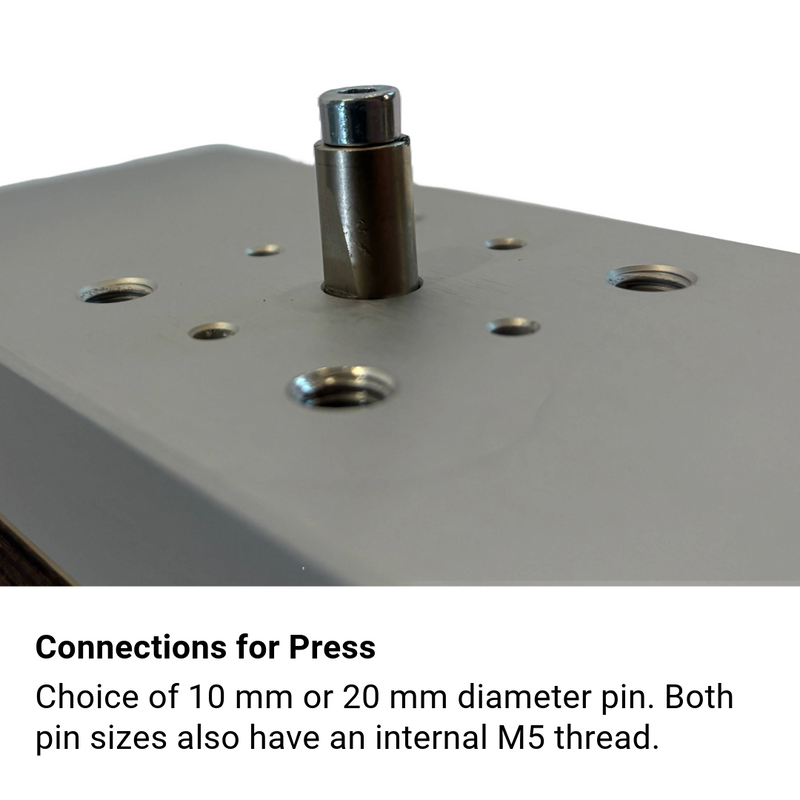

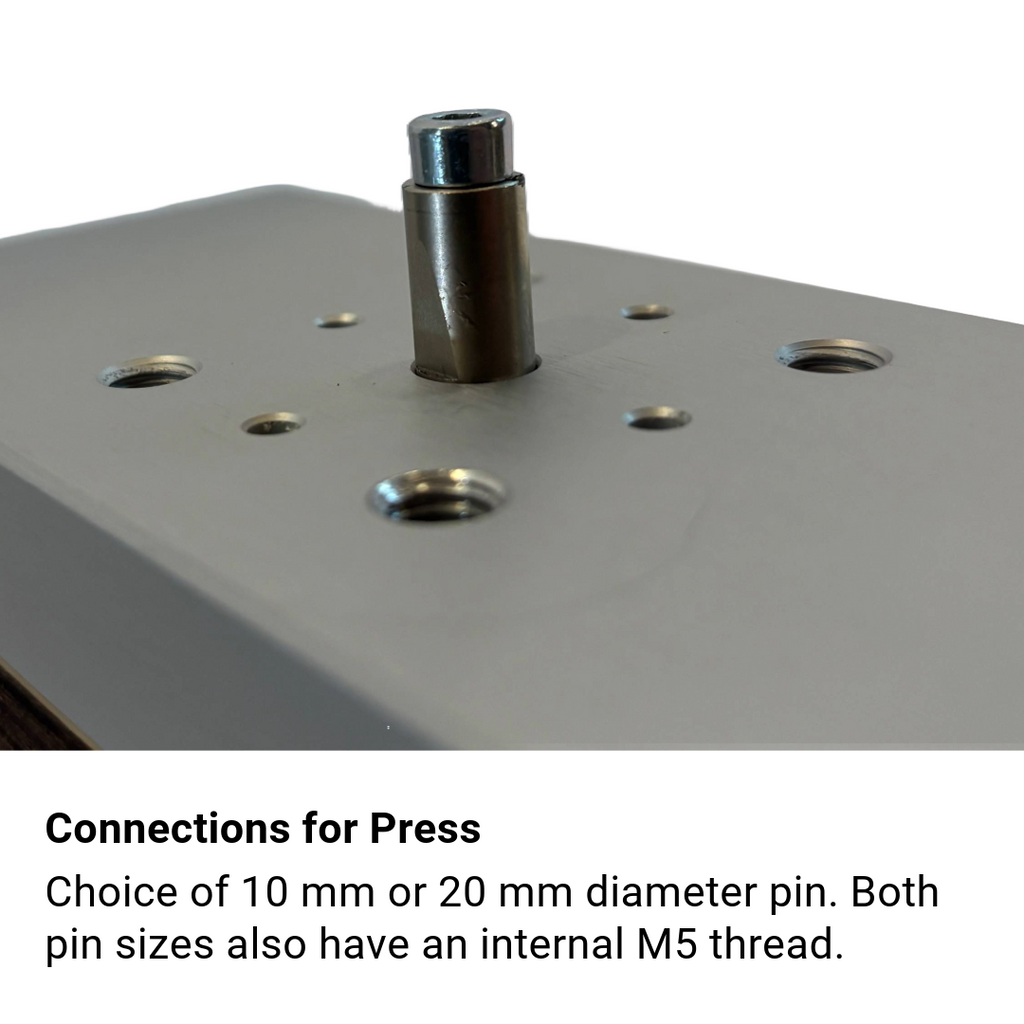

- Coupling: 10 mm or 20 mm diameter
Applications
- Evaluating the tensile properties of vulcanized rubber and thermoplastic elastomers
- Specimen preparation for universal testing machines (UTMs)
- Automotive: Tires, seals, hoses, gaskets, belts.
- Medical Devices: Gloves, tubing, elastomeric components in medical equipment.
- Aerospace: Seals, insulation, grommets.
- Consumer Goods: Footwear, sporting goods, wearable products.
- Construction: Expansion joints, roofing membranes, sealants.
- Electronics: Cable insulation, connectors, and rubberized protective components.
Models and Dimensions
| Model Number | Type (Dimensions A x B) | Cutter Die Type | Adapter Pin |

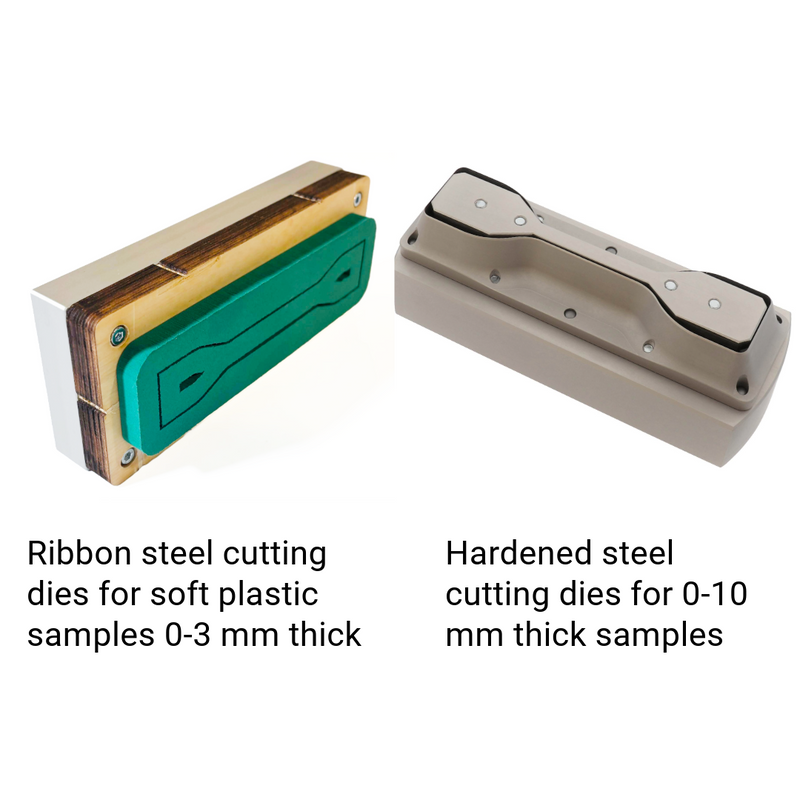

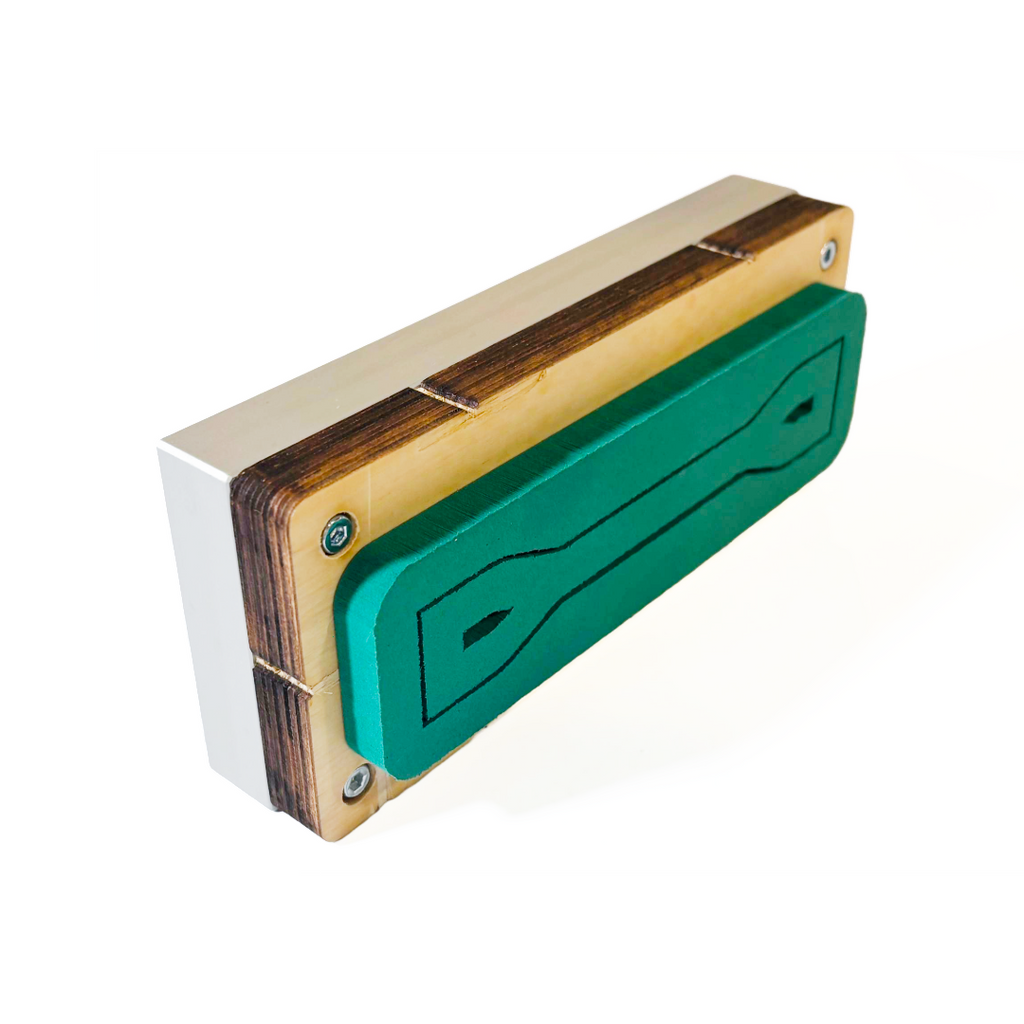

| JLW-D412-DA-RS-P10 | DA: Die A (12x59 mm) | RS: Ribbon steel die for soft plastic samples 0-3 mm thick | P10: 10 mm diameter |
| JLW-D412-DA-RS-P12 | DA: Die A (12x59 mm) | RS: Ribbon steel die for soft plastic samples 0-3 mm thick | P12: 12 mm diameter |

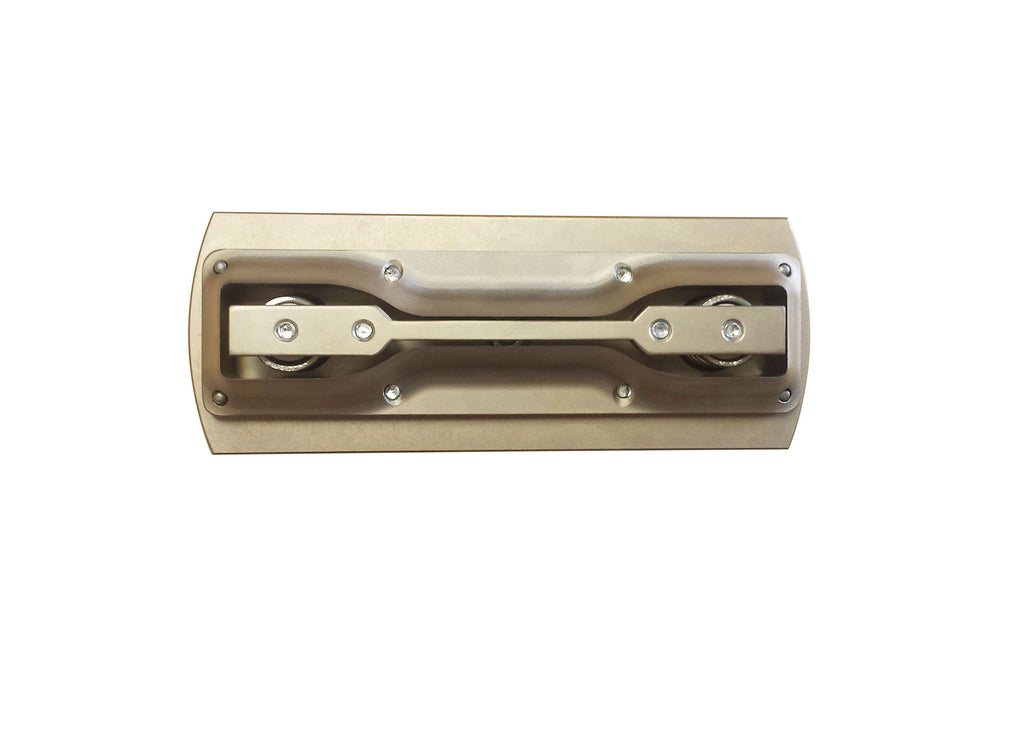

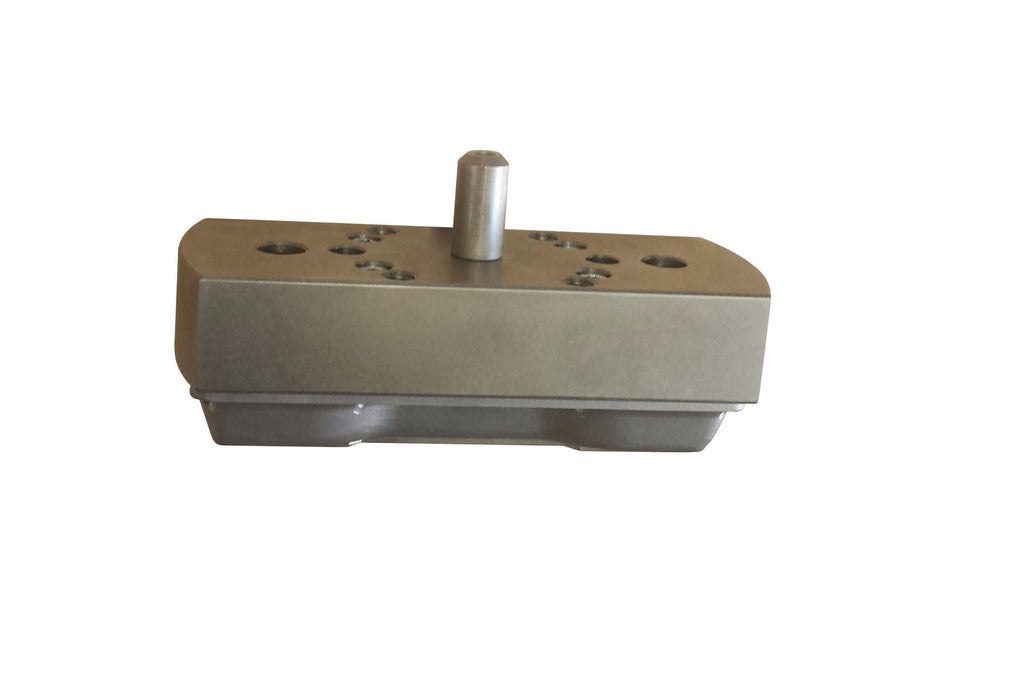

| JLW-D412-DA-HS-P10 | DA: Die A (12x59 mm) | HS: Hardened steel die for 0-10 mm thick samples | P10: 10 mm diameter |
| JLW-D412-DA-HS-P12 | DA: Die A (12x59 mm) | HS: Hardened steel die for 0-10 mm thick samples | P12: 12 mm diameter |
| JLW-D412-DB-HS-P10 | DB: Die B (6x59 mm) | HS: Hardened steel die for 0-10 mm thick samples | P10: 10 mm diameter |
| JLW-D412-DB-HS-P12 | DB: Die B (6x59 mm) | HS: Hardened steel die for 0-10 mm thick samples | P12: 12 mm diameter |
| JLW-D412-DC-RS-P10 | DC: Die C (6x33 mm) | RS: Ribbon steel die for soft plastic samples 0-3 mm thick | P10: 10 mm diameter |
| JLW-D412-DC-RS-P12 | DC: Die C (6x33 mm) | RS: Ribbon steel die for soft plastic samples 0-3 mm thick | P12: 12 mm diameter |
| JLW-D412-DC-HS-P10 | DC: Die C (6x33 mm) | HS: Hardened steel die for 0-10 mm thick samples | P10: 10 mm diameter |
| JLW-D412-DC-HS-P12 | DC: Die C (6x33 mm) | HS: Hardened steel die for 0-10 mm thick samples | P12: 12 mm diameter |
| JLW-D412-DD-RS-P10 | DD: Die D (3x33 mm) | RS: Ribbon steel die for soft plastic samples 0-3 mm thick | P10: 10 mm diameter |
| JLW-D412-DD-RS-P12 | DD: Die D (3x33 mm) | RS: Ribbon steel die for soft plastic samples 0-3 mm thick | P12: 12 mm diameter |
| JLW-D412-DD-HS-P10 | DD: Die D (3x33 mm) | HS: Hardened steel die for 0-10 mm thick samples | P10: 10 mm diameter |
| JLW-D412-DD-HS-P12 | DD: Die D (3x33 mm) | HS: Hardened steel die for 0-10 mm thick samples | P12: 12 mm diameter |
