Spring Scales >

Medio Line Spring Scales

Pesola Starting at $62.29
Model: 40003

Regular price Price: $62.29

Choose a Model
Lead Time: Ships in 3-6 business days
Free Shipping
Free Shipping on orders $100 and up.
Credit card, PayPal and Amazon Pay are available at checkout. If you need a quote or want to pay with a PO please contact info@jlwinstruments.com.

A multifunctional  instrument for weighing, measuring traction/tension and pressure/compression forces (optional). Always ready for use, needs no batteries.

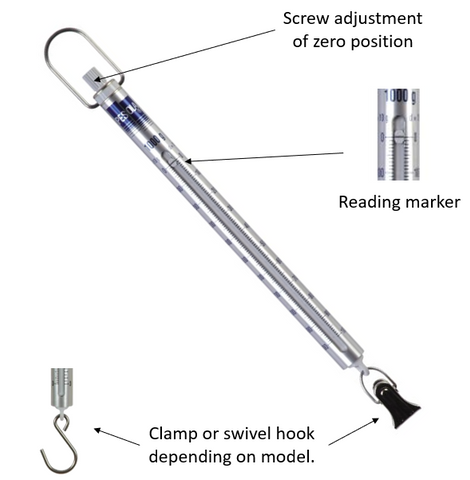

Precise and handy Spring Balance with durable anodized aluminum tube. Tare and zero adjustment. Swivel, rotatable and removable suspension handle.

Lower hook swivels, rotates and can be changed using different accessories. Suspension elements out of stainless steel. Drag pointer and convenient, removable handle are included.


Features and Specifications

  • Click and Go attachments
  • Tare (zero adjustment)~ 20%
  • Precision: 0.3%
  • Componentsnon-corroding (spring only protected)
  • Warranty: 3 years
  • Country of origin: Switzerland (CH)
  • Optional pressure/Compression attachment




Models and Capacities Available

Model Capacity Division Color Standard
suspension
40003 3 N 0.02 N Black Hook
40006 6 N 0.05 N Purple Hook
40010 10 N 0.1 N Blue Hook
40025 25 N 0.2 N Bordeaux Hook
40300 300 g 2 g Black Clamp
40300/1 300 g 2 g Black Hook
40310 300 g / 10 oz 2 g / 1/8 oz Black Clamp
40600 600 g 5 g Purple Clamp
40600/1 600 g 5 g Violet Hook
41000 1000 g 10 g Blue Clamp
41000/1 1000 g 10 g Blue Hook
41002 1000 g / 2 lbs 10 g / 1/2 oz Blue Clamp
42500 2500 g 20 g Bordeaux Hook
43000 3000 g 20 g Green Hook




Dimensions



Model S
Scale length
L0
Length without load
Lm
Maximum length
Lp
with optional pressure set 4.004
Ø
Diameter
Net weight
40003 100 mm 225 mm 325 mm 300 mm 12 mm 32 g
40006 100 mm 225 mm 325 mm 300 mm 12 mm 33 g
40010 100 mm 225 mm 325 mm 300 mm 12 mm 36 g
40025 100 mm 225 mm 325 mm 300 mm 12 mm 38 g
40300 100 mm 225 mm 325 mm 300 mm 12 mm 32 g
40300/1 100 mm 225 mm 325 mm 300 mm 12 mm 32 g
40310 100 mm 225 mm 325 mm 300 mm 12 mm 32 g
40600 100 mm 225 mm 325 mm 300 mm 12 mm 33 g
40600/1 100 mm 220 mm 325 mm 305 mm 12 mm 33 g
41000 100 mm 225 mm 325 mm 305 mm 12 mm 36 g
41000/1 100 mm 225 mm 325 mm 300 mm 12 mm 36 g
41002 100 mm 225 mm 325 mm 300 mm 12 mm 36 g
42500 100 mm 225 mm 325 mm 300 mm 12 mm 38 g
43000 100 mm 225 mm 325 mm - 12 mm 36 g




Video

Click and go attachments



Optional pressure set assembly
