Spring Scales >

Micro Line
Spring Scales

Regular price $55.95

Choose a Model
SKU: 2001
Brand: Pesola
Lead Time: Ships in 1-3 business days
Free Shipping
Free Shipping on orders $100 and up.

A multifunctional  instrument for weighing, measuring traction/tension and pressure/compression forces (optional). Always ready for use, needs no batteries.

Precise and handy Spring Balance with durable anodized aluminum tube. Tare and zero adjustment. Swivel, rotatable and removable suspension handle.

Lower hook swivels, rotates and can be changed using different accessories. Suspension elements out of stainless steel. Drag pointer and convenient, removable handle are included.


Features and Specifications

  • Click and Go attachments
  • Measuring position: Vertical
  • Tare (zero adjustment)~ 20%
  • Precision: 0.3%
  • Componentsnon-corroding (spring only protected)
  • Warranty: 3 years
  • Country of origin: Switzerland (CH)
  • Optional pressure/Compression attachment




Models and Capacities Available

Model Capacity Division Color Standard
Suspension
20001 1 N 0.01 N Green Hook
20010 10 g 0.1 g Grey Clamp
20010/1 10 g 0.1 g
Grey Hook
20030 30 g 0.25 g Red Clamp
20030/1 30 g 0.25 g Red Hook
20031 30 g / 1 oz 0.25 g / 1/32 oz Red Clamp
20060 60 g 0.5 g Purple Clamp
20060/1 60 g 0.5 g Purple Hook
20100 100 g 1.0 g Green Clamp
20100/1 100 g 1.0 g Green Hook
20103 100 g / 3 1/2 ozs 1.0 g / 1/16 oz Green Clamp





Dimensions





Model S
Scale length
L0
Length without load
Lm
Maximum length
Ø
Diameter
Weight
20001 80 mm 225 mm 305 mm 12 mm 25 g
20010 80 mm 220 mm 300 mm 12 mm 25 g
20010/1 80 mm 225 mm 305 mm 12 mm 25 g
20030 80 mm 220 mm 300 mm 12 mm 25 g
20030/1 80 mm 225 mm 305 mm 12 mm 25 g
20031 80 mm 220 mm 300 mm 12 mm 25 g
20060 80 mm 220 mm 300 mm 12 mm 25 g
20060/1 80 mm 225 mm 305 mm 12 mm 25 g
20100 80 mm 220 mm 300 mm 12 mm 25 g
20100/1 80 mm 225 mm 305 mm 12 mm 25 g
20103 80 mm 220 mm 300 mm 12 mm 25 g





Video

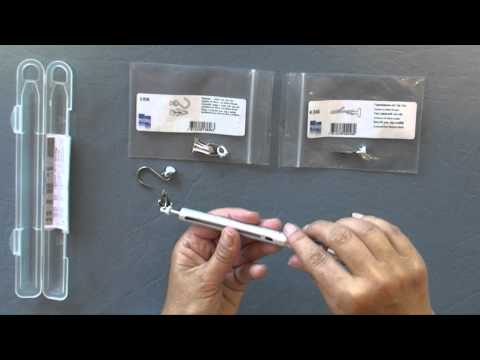

Click and go attachments



Optional pressure set assembly
