ERG1-P Eccentric Roller Grip

Eccentric Roller Grips

JLWForce SKU: ERG1-P
Price:
$381.00 USD
Lead Time: Ships in 1-3 business days
Free Shipping
Free Shipping on orders $200 and up for orders placed online.
Credit card and PayPal are available at checkout. If you need a quote or want to issue a purchase order with payment terms please contact info@jlwinstruments.com or call 312-666-0595.

If the adapter you need isn't listed above, we offer a variety of additional adapter options.

Please call if you need help identifying the correct adapter, 312-666-0595.

Description

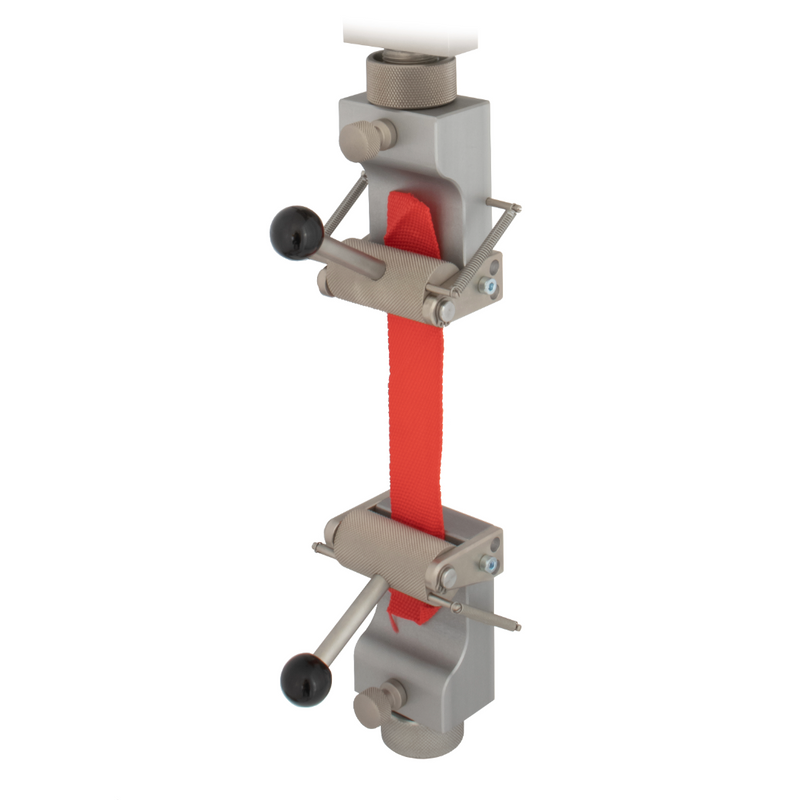

ERG1-P eccentric roller grips are self-tightening grips designed for testing flat samples, rubber, plastic film, plastic dumbbells, paper, cardboard, sheet metal and foils.

The roller on this grip has a crosscut surface.

Features and Specifications

  • Tensile Force Capacity: 1 kN [225 lbF]
  • Roller
    • Surface: Pyramid [serrated] faced roller
    • Diameter: 25 mm [1 in]
    • Steel, nickel-plated
  • Backstop Surface: Plain
  • Max Sample Size
    • Width: Up to 50 mm [2 in]
    • Thickness: 0-7 mm
  • Connection: 15.9 mm [5/8 in] eye end
  • Body: aluminium anodized
  • Temperature range: 0 … +130°C
  • Weight: 0.5 kg [1.1 lbs]
  • Scope of delivery is 1 grip

Dimensions [mm]

Grip Connection Dimensions
