WG256-10, 10 kN Wedge Grip

Wedge Grips

JLWForce SKU: WG256-10
Price:
$1,331.00 USD
Lead Time: Ships in 3-6 business days
Free Shipping
Free Shipping on orders $100 and up for orders placed online.
Credit card and PayPal are available at checkout. If you need a quote or want to pay with a PO please contact info@jlwinstruments.com or call 312-666-0595.

Description

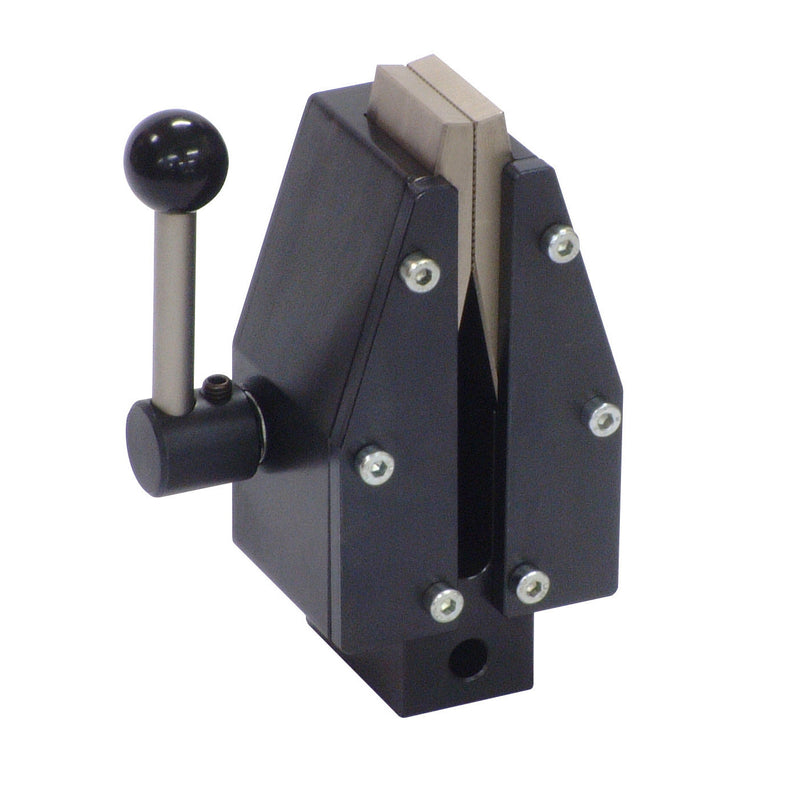

Wedge grips can be used in a variety of tensile testing applications. The WG256-10 comes with pyramid jaw faces and can be used up to 10 kN force.

Easy clamping and unclamping action makes specimen loading faster. Self-tightening wedge design eliminates slippage. Can be used for tensile testing of wires, plastics, metals, elastomers.

This grip is designed to mount on a standard 5/8" eye ends. This connection type is commonly used on test stands and load cells. Adapters are available to accommodate other connection types.

Specifications

  • Force capacity:  2,250 lbF [10 kN]
  • Jaw opening: 0-0.3 in [0-8 mm]
  • Jaw face dimensions: 1.2 in x 1.2 in [30 mm x 30 mm]
  • Connection: 5/8" female eye end [15.9 mm]
  • Weight: 4.0 lbs [1.8 kg]
  • Body: Steel
  • Jaws
    • Pyramids 1.2 x 45°
    • Hardened steel 58 HRC

Included Items

  • 1 Wedge grip with pyramid jaws

Dimensions [mm]

Wedge Grip Dimensional Drawing
Detailed Connection Dimensions [mm]





Accessories

Male 5/8" Eye End to Thread Adapter, AC1047 Series Eye Ends
AC1045 Series Eye End Adapter for Force Gauges
