A318-20 1.25 inch Female Eye End to 20 mm Female Eye End Adapter
A318-20 1.25 inch Female Eye End to 20 mm Female Eye End Adapter
Roll over image to zoom in Click on image to zoom
A318-20 1.25 inch Female Eye End to 20 mm Female Eye End Adapter
A318-20 1.25 inch Female Eye End to 20 mm Female Eye End Adapter

A318-20 1.25 inch Female Eye End to 20 mm Female Eye End Adapter

Thread and Eye End Adapters

JLWForce SKU: A318-20
Price:
$284.00 USD

Lead time: Ships in 1-2 weeks
Free Shipping
Free Shipping on orders $200 and up.
Credit card and PayPal are available at checkout. If you need a quote or want to pay with a PO please contact info@jlwinstruments.com or call 312-666-0595.

Description

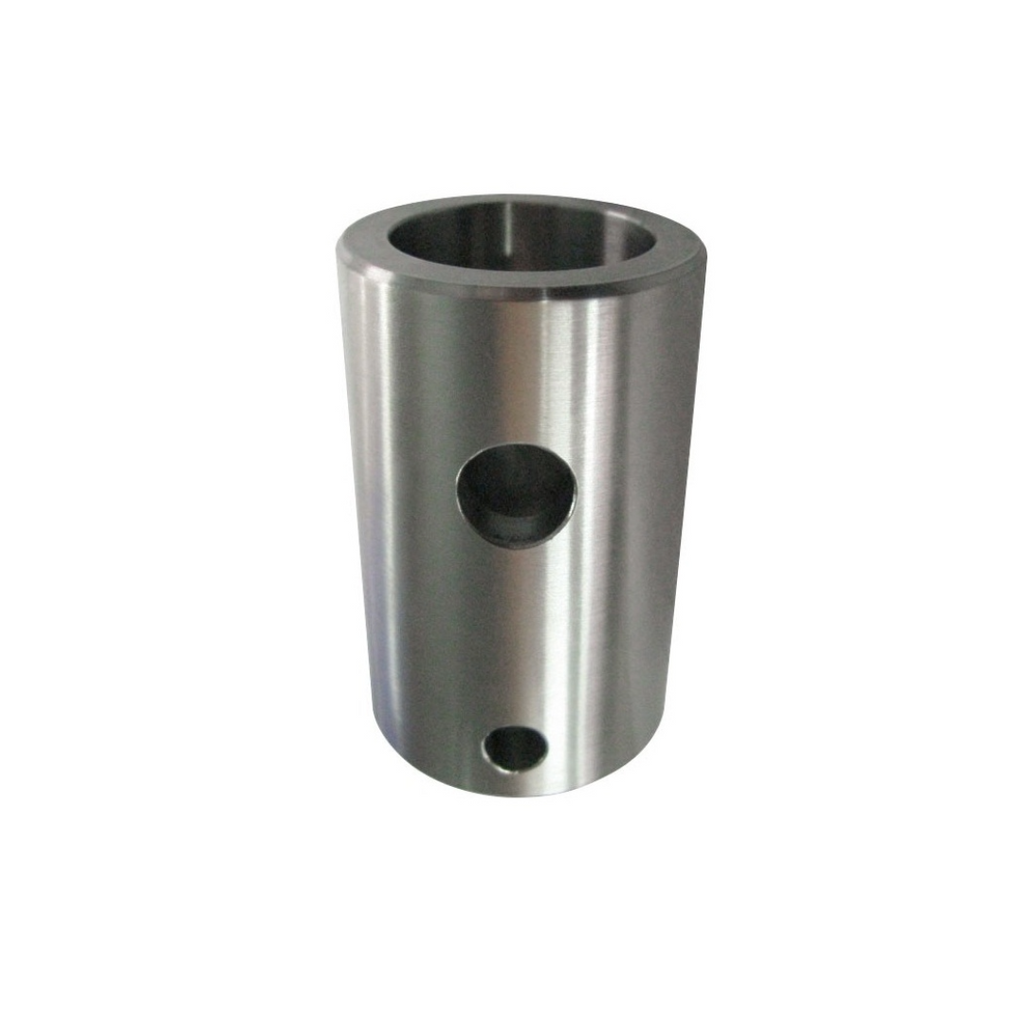

This Eye End Adapter, A318-20, has a 1.25" female eye end and a 20 mm female eye end.

Eye end adapters ensure a secure and reliable mounting of grips.

Specifications

  • Connection: 1.25 in. [31.8 mm] female eye end with 1/2 in. [12.8 mm] pin hole
  • Connection: 20 mm female eye end with 8 mm pin hole
  • Material: Steel, Nickel Plated

Included Items

  • (1) Adapter
  • (2) Clevis pins

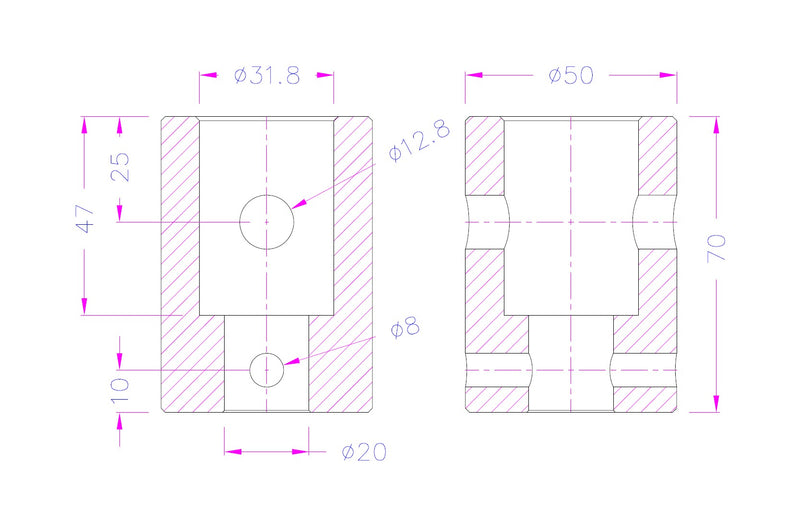

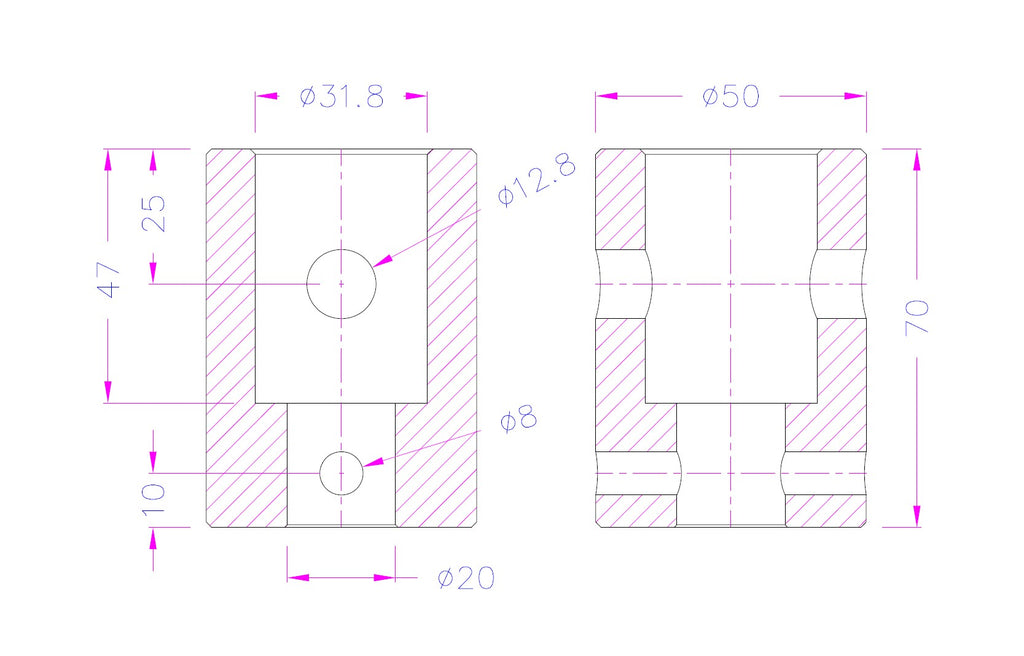

Dimensions - mm
