This eye end can be used to mount a grip that has #10-32F thread to some Instron test stand or load cells. For example attaching a G1008 paper and film grip, or a G1062 miniature wedge grip to an Instron 6.0 mm Clevis Pin (Type Of).
Eye ends are used on most universal testing machines, motorized test stands and some manual test stands. These ends can be used to convert from one size of an eye end to another allowing more options for grips that can be mounted.
Connection: 12 mm diameter male eye end with 6 mm clevis pin
- Connection: #10-32M UNF thread

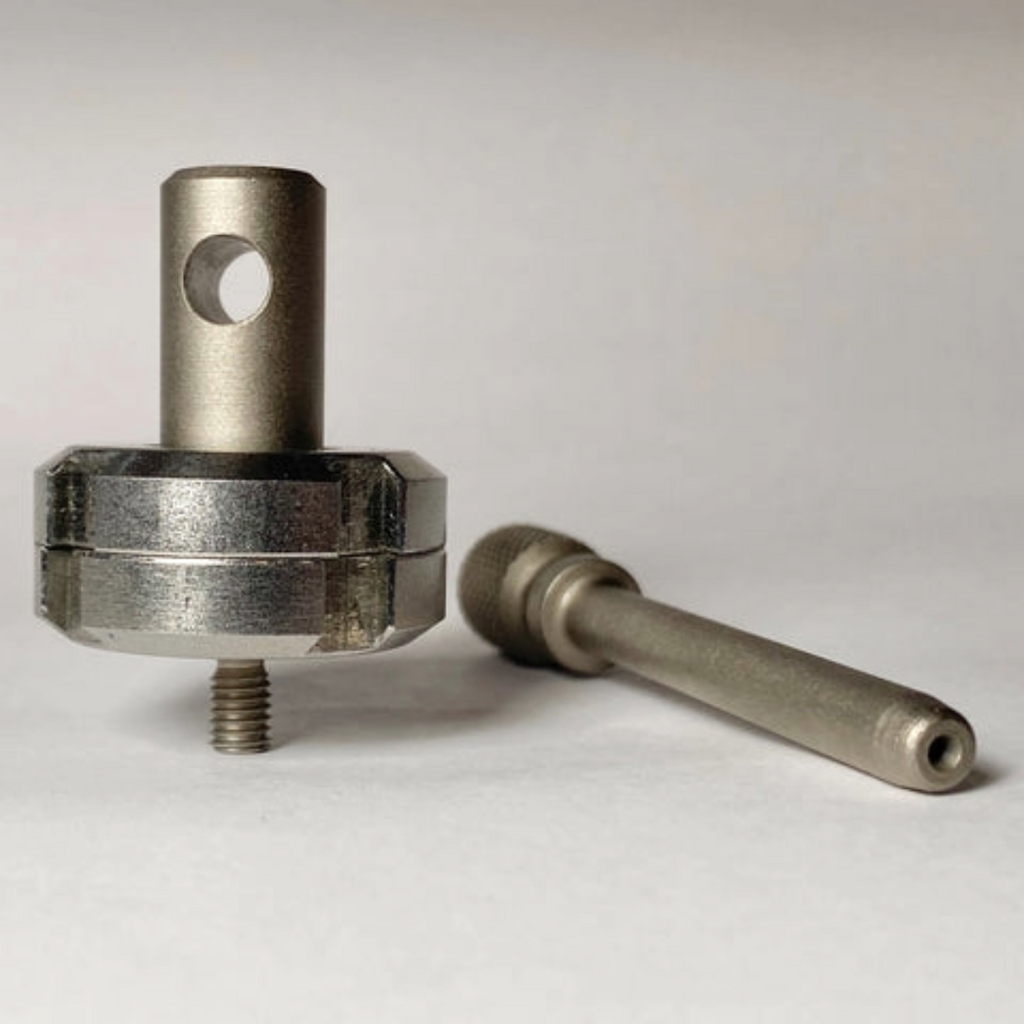

- (1) Adapter
- (2) Locking rings
- (1) Clevis pins

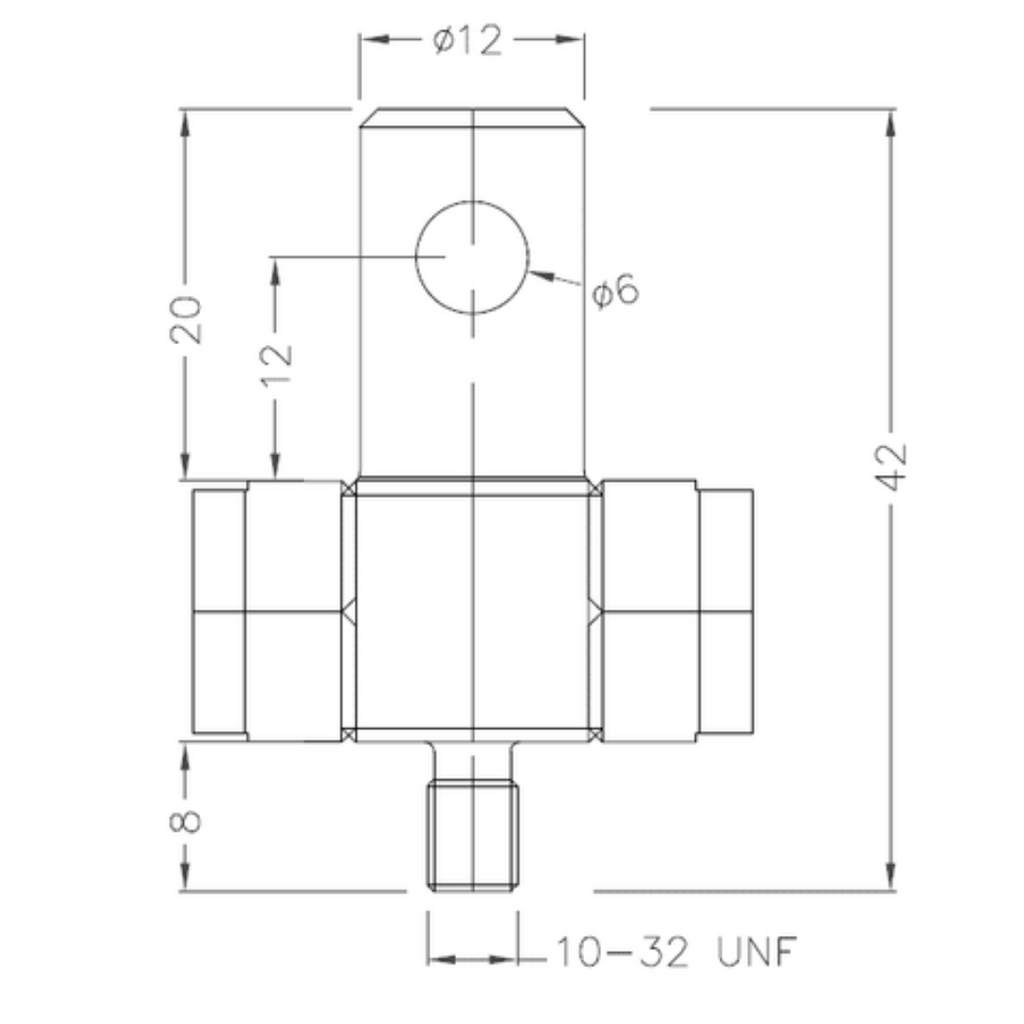

Dimensions - mm
