Description

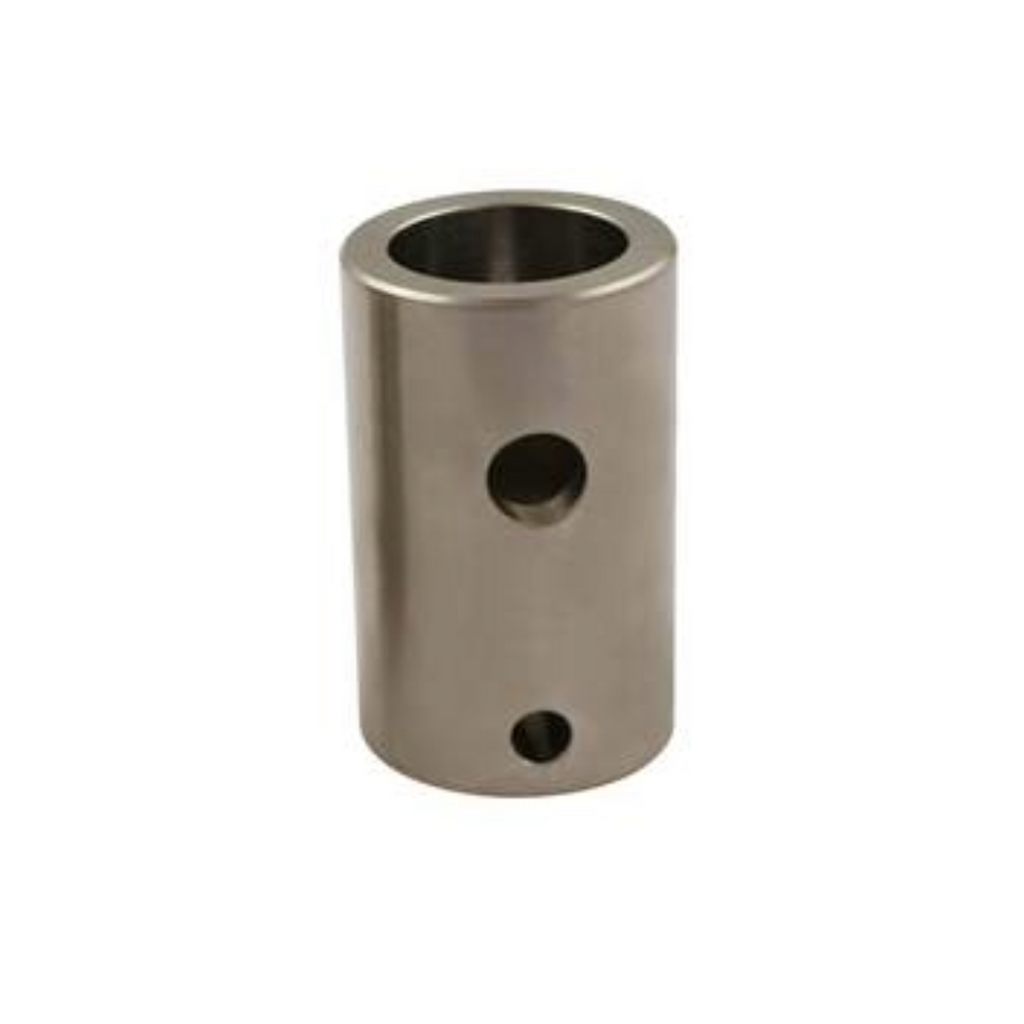

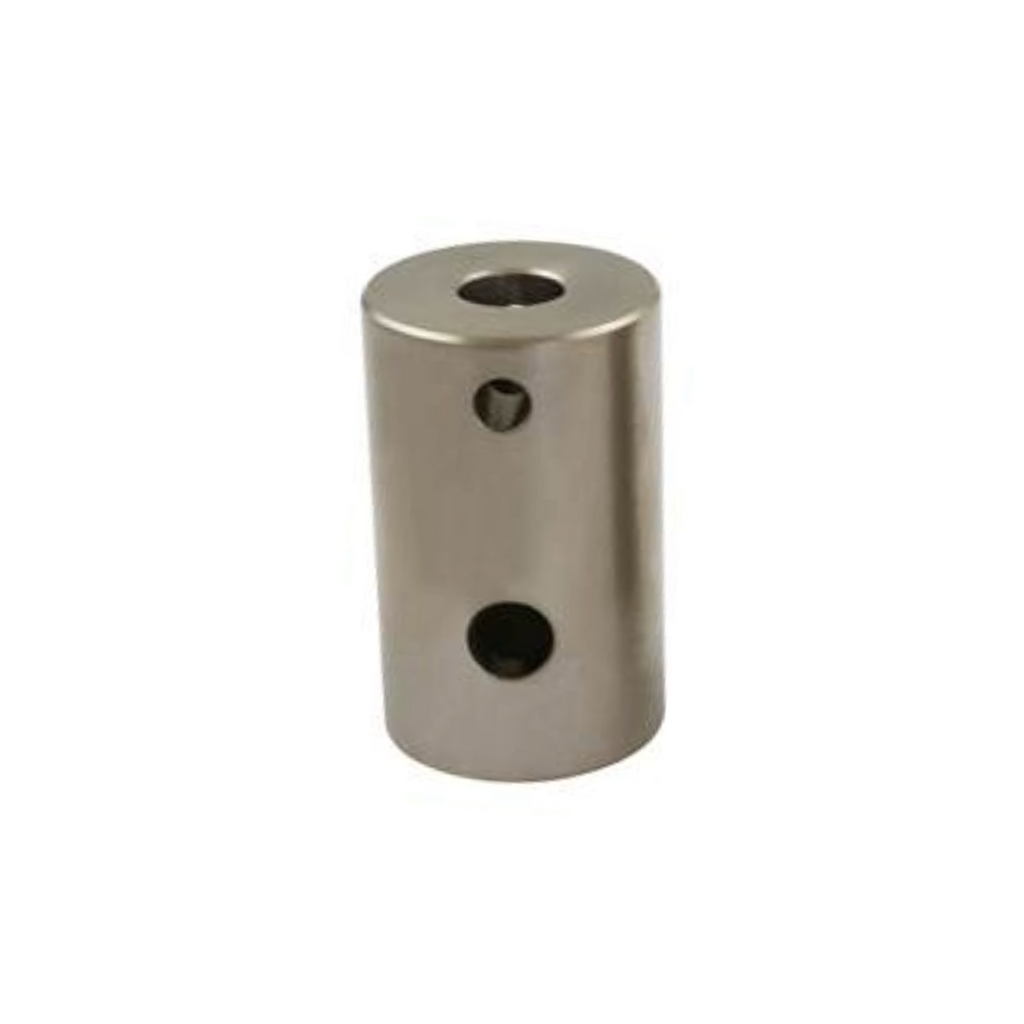

The Eye End Adapter (A159-318) is designed to connect grips, fixtures, and accessories to force test stands and universal testing machines (UTMs). Featuring a 5/8 in. female eye end on one side and a 31.8 mm female eye end on the other, it provides a secure mechanical interface between test frames and load-bearing attachments.
Eye end adapters are an essential component in modular test systems, allowing users to adapt different grips and fixtures to a wide range of test stands and UTMs while preserving rated load capacity and system integrity.
Specifications
-
Connection: 5/8" [15.8 mm] male eye end with 8 mm pin pin hole
- Connection: 1.25 in. [31.8 mm] female eye end with 1/2 in. [12.8 mm] pin hole
- Capacity: 20 kN
-
Material: Steel, Nickel Plated
Included Items
- (1) Adapter
- (2) Clevis pins

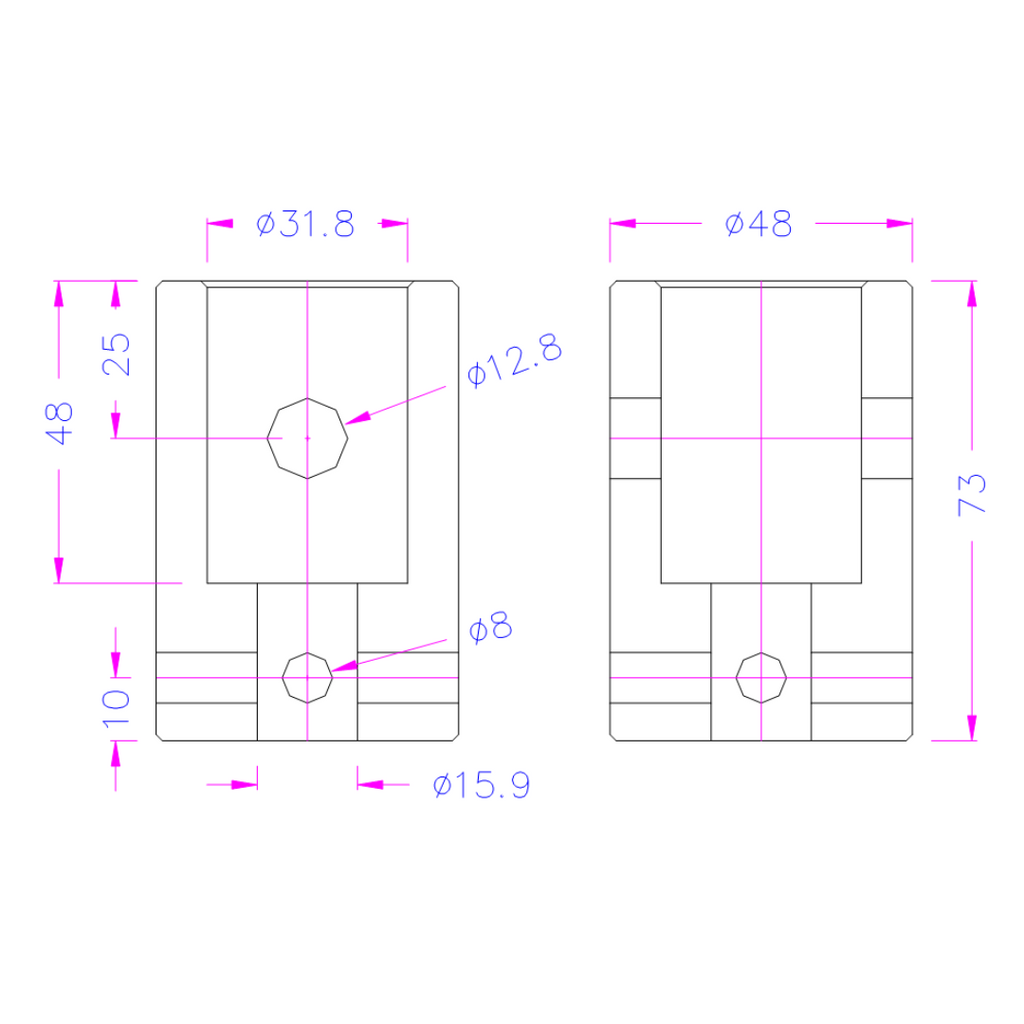

Dimensions - mm
