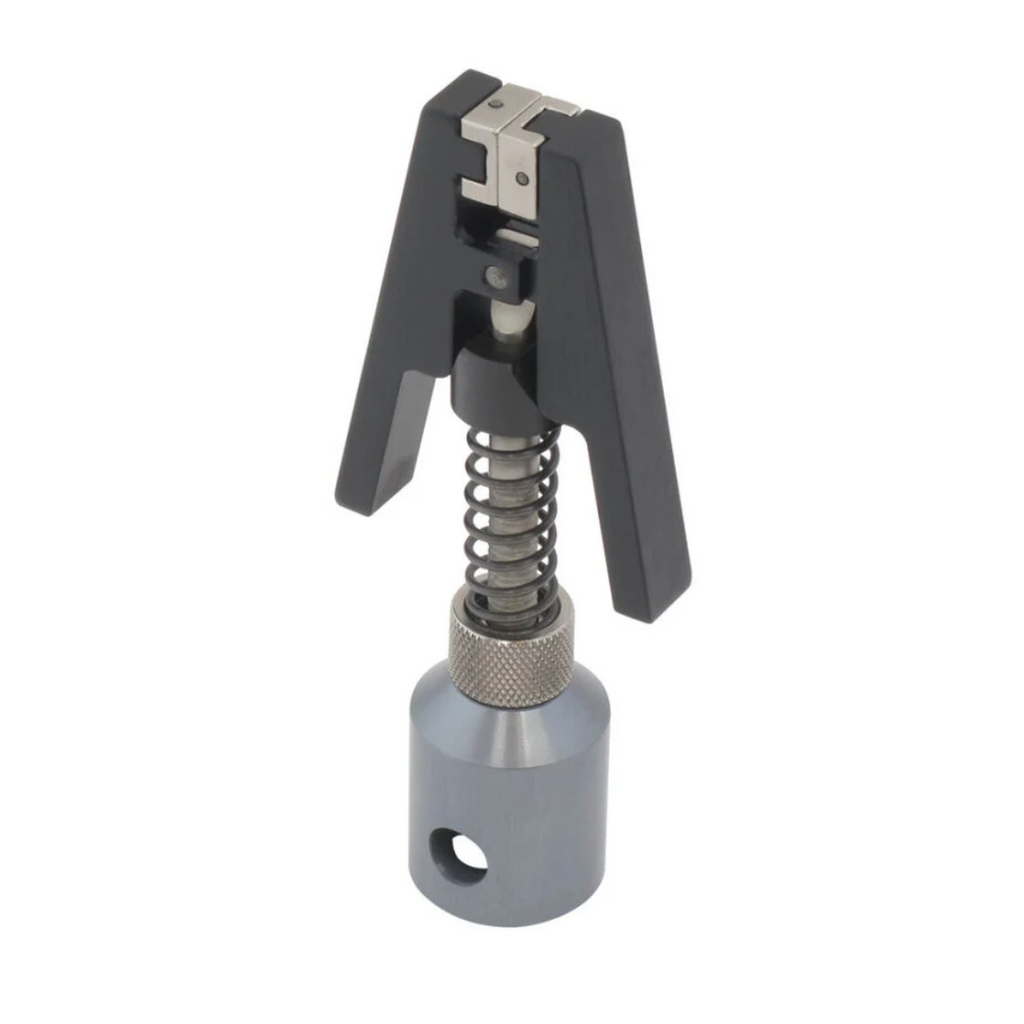

FG20-P Fiber & Filament Lightweight Spring Loaded Grip
Roll over image to zoom in Click on image to zoom
FG20-P Fiber & Filament Lightweight Spring Loaded Grip

FG20-P Fiber & Filament Lightweight Spring Loaded Grip

Wire, Cord, Filament, Bollard Grips

JLWForce SKU: FG20-P
Price:
$524.00 USD
Lead Time: Ships in 10-15 business days
Free Shipping
Free Shipping on orders $200 and up for orders placed online.
Credit card and PayPal are available at checkout. If you need a quote or want to pay with a PO please contact info@jlwinstruments.com or call 312-666-0595.

Description

Versatile, easy to use. Suitable for small forces, pull off tests, fiber, filaments, adhesive bonds.



Specifications
  • Force capacity: 20 N (5 lbF)
  • Opening: 0 - 3.4 mm
  • Material: Aluminum
  • Weight: 98 g
  • Temperature Range: 0 … +180°C
  • Jaw Type: Pyramid, 10 mm x 10 mm surface
  • Includes1 grip with jaws
Dimensions - mm

Dimensions for Filament Grip
