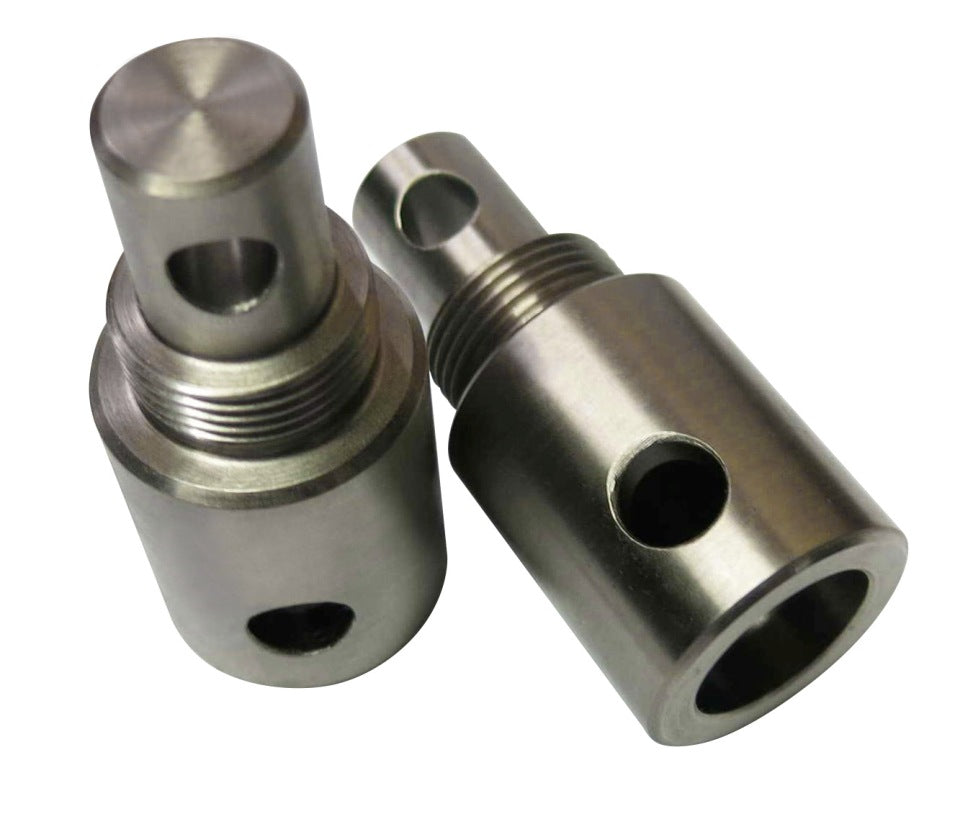

Grip Adapter 3/4 Female Eye End to 158 Male Eye End - A158-191

The Eye End Adapter (A158-191) is designed to connect grips, fixtures, and accessories to force test stands and universal testing machines (UTMs). Featuring a 3/4 in. female eye end on one side and a 15.8 male eye end on the other, it provides a secure mechanical interface between test frames and load-bearing attachments.

Eye end adapters are an essential component in modular test systems, allowing users to adapt different grips and fixtures to a wide range of test stands and UTMs while preserving rated load capacity and system integrity.

Specifications

• Connection: 5/8" [15.9 mm] female eye end with 8 mm pin

• Connection: 3/4 in. [19.1 mm] female eye end with 9.7 mm pin hole
• Capacity:
  • Steel, Nickel Plated: 20 kN


Included Items

• (1) Adapter

• (2) Clevis pins

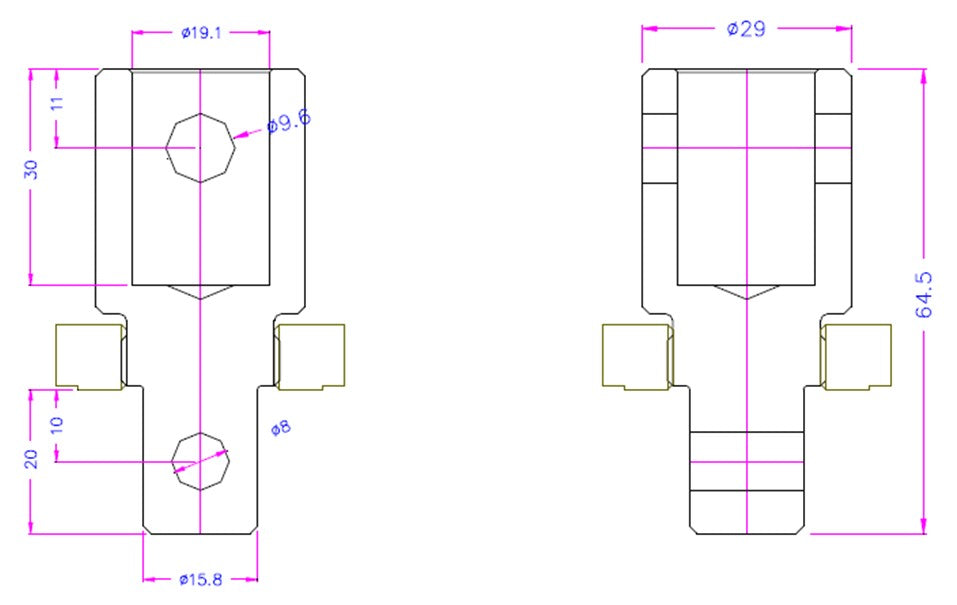

Dimensions - mm
