Description

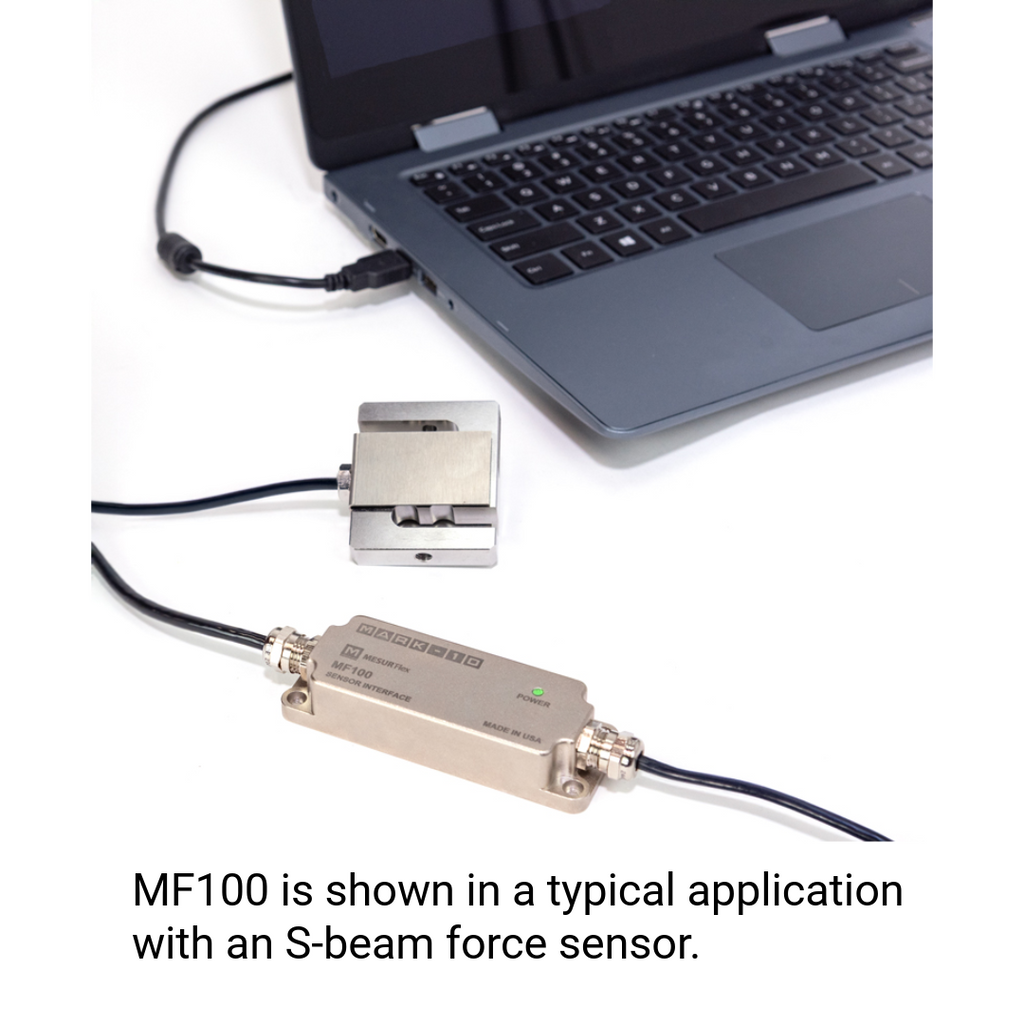

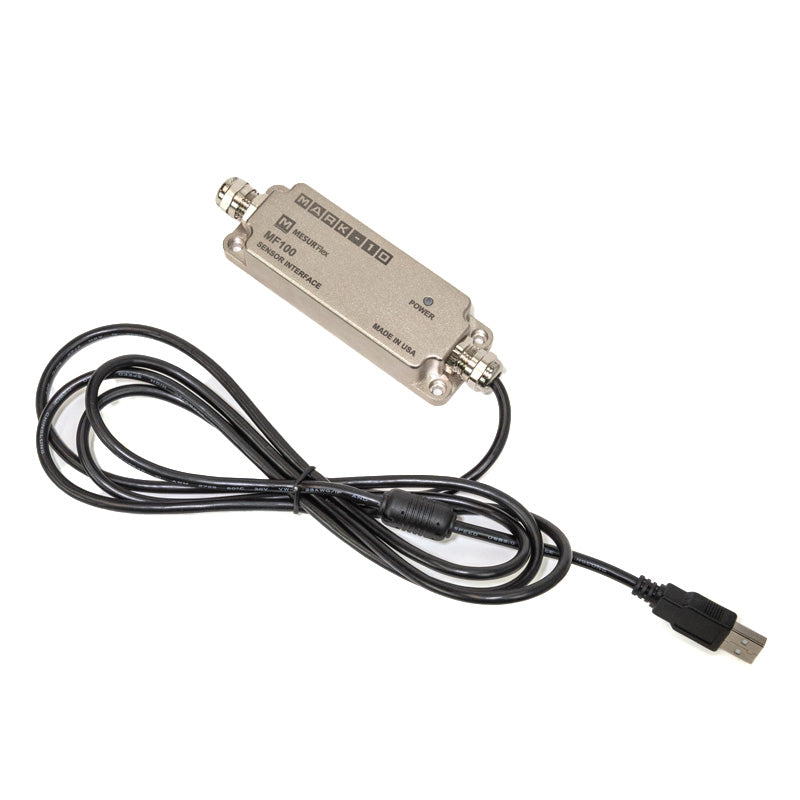

The Mark-10 MF100 USB Sensor Interface bridges your strain gage–based load cells, force sensors, and torque sensors directly to your PC or USB hub. Engineered for seamless integration, this adapter works in tandem with MESUR®Flex configuration software to deliver real-time data acquisition and sensor management. Ideal for precision testing applications requiring reliable connectivity and straightforward setup, the MF100 streamlines your measurement workflow without compromising accuracy or control.
MESUR®Flex supports a wide range of applications in weighing, force, and torque measurement. It accommodates force sensors from 0.12 to 750,000 lbF (0.5 N to 4,000 kN) and torque sensors from 10 ozFin to 40,000 lbFft (7 Ncm to 57,000 Nm). A built-in screw terminal block allows quick, solder-free connection of sensor wires to the interface.

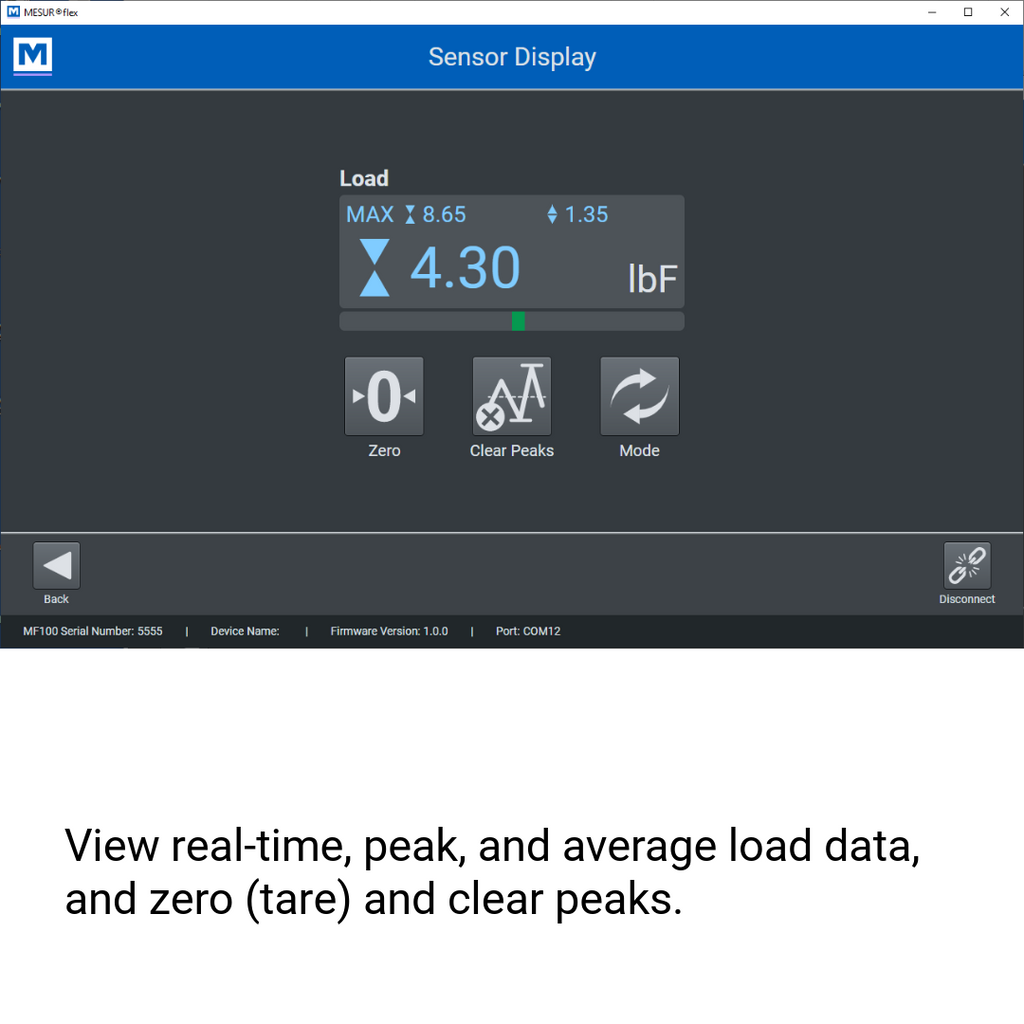

Through MESUR®Flex, select the sensor's capacity, add a unique identifier, and calibrate the sensor through a step-by-step wizard. The software contains basic settings for changing measurement units, viewing peak, real-time, and time-averaged data. Or, control the sensor and acquire data via an extensive library of serial commands, ideal for integration into a data collection system.
Features
- Connect strain gage-based load cells, force sensors, and torque sensors to a PC

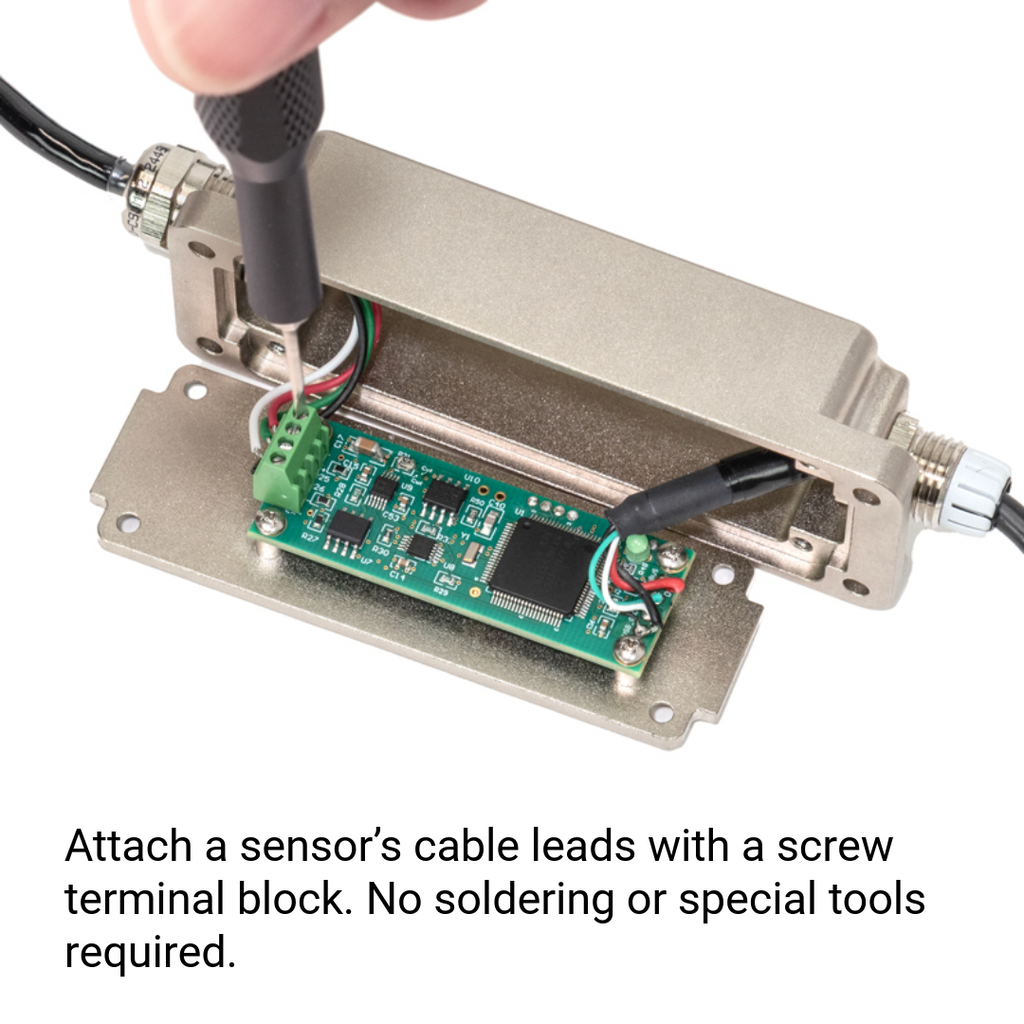

- Screw terminal block allows for easy connection of sensor wires

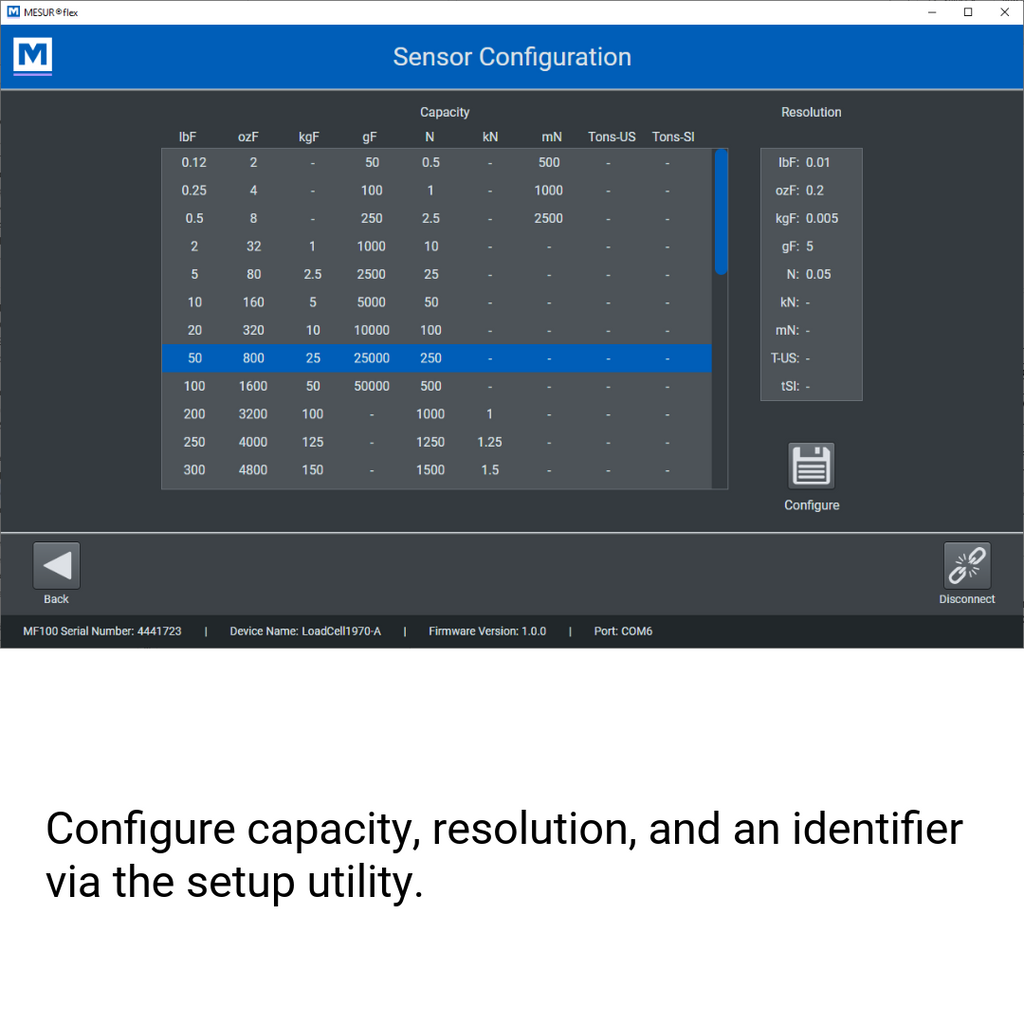

- Configure sensor capacity, resolution, and identifier via MESUR®Flex
- Calibrate the sensor on a PC with an intuitive step-by-step interface in MESUR®Flex
Specifications
Sensor Requirements:
- Type: Full bridge
- Resistance: 300 - 1000 ohms
- Sensitivity: 1–3mV/V full scale
Other Specifications:
- Force range: 0.12 lbF - 500 T [0.5 N - 5,000 kN]
- Torque range: 10 ozFin - 40,000 lbFft [7 Ncm - 57,000 Nm]
- Load accuracy: ±0.1% of full scale + sensor
- Load sampling rate: 7,000 Hz
- Data output rate: Up to 500 Hz, user-configurable
- Weight: 0.4 lb [0.2 kg]
- Shipping weight: 2.0 lb [0.9 kg]
- Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensing
- Conformance: CE, UKCA
- HS code: 9024100000
- ECCN: EAR99
- Warranty: 3 years (see individual statement for further details)
- Country of origin: USA
Force Capacity x Resolution
| Capacity x Resolution | ||||||||
| lbF | ozF | kgF | gF | N | kN | mN | T-US | t-Sl |
| 0.12 x 0.00002 | 2 x 0.0005 | - | 50 x 0.01 | 0.5 x 0.0001 | - | 500 x 0.1 | - | - |
| 0.25 x 0.00005 | 4 x 0.001 | - | 100 x 0.02 | 1 x 0.0002 | - | 1000 x 0.2 | - | - |
| 0.5 x 0.0001 | 8 x 0.002 | - | 250 x 0.05 | 2.5 x 0.005 | - | 2500 x0.5 | - | - |
| 2 x 0.0005 | 32 x 0.005 | 1 x 0.0002 | 1000 x 0.2 | 10 x 0.002 | - | - | - | - |
| 5 x 0.001 | 80 x 0.02 | 2.5 x 0.0005 | 2500 x 0.5 | 25 x 0.005 | - | - | - | - |
| 10 x 0.002 | 160 x 0.02 | 5 x 0.001 | 5000 x 1 | 50 x 0.01 | - | - | - | - |
| 20 x 0.005 | 320 x 0.05 | 10 x 0.002 | 10000 x 2 | 100 x 0.02 | - | - | - | - |
| 50 x 0.01 | 800 x 0.2 | 25 x 0.005 | 25000 x 5 | 250 x 0.05 | - | - | - | - |
| 100 x 0.02 | 1600 x 0.2 | 50 x 0.01 | 50000 x 10 | 500 x 0.1 | - | - | - | - |
| 200 x 0.05 | 3200 x 0.5 | 100 x 0.02 | - | 1000 x 02 | 1 x 0.0002 | - | - | - |
| 250 x 0.05 | 4000 x 1 | 125 x 0.02 | - | 1250 x 0.2 | 1.25 x 0.0002 | - | - | - |
| 300 x 0.05 | 4800 x 1 | 150 x 0.2 | - | 1500 x 0.2 | 1.5 x 0.0002 | - | - | - |
| 500 x 0.1 | 8000 x 2 | 250 x 0.05 | - | 2500 x 0.5 | 2.5 x 0.0005 | - | - | - |
| 750 x 0.2 | 12000 x 2 | 400 x 0.1 | - | 4000 x 1 | 4 x 0.001 | - | - | - |
| 1000 x 0.2 | 16000 x 2 | 500 x 0.1 | - | 5000 x 1 | 5 x 0.001 | - | - | - |
| 1500 x 0.2 | 24000 x 5 | 750 x 0.2 | - | 7500 x 2 | 7.5 x 0.002 | - | - | - |
| 2000 x 0.5 | 32000 x 5 | 1000 x 0.2 | - | 10000 x 2 | 10 x 0.002 | - | - | - |
| 5000 x 1 | - | 2500 x 0.5 | - | - | 25 x 0.005 | - | 2.5 x 0.0005 | 2.5 x 0.0005 |
| 10000 x 2 | - | 5000 x 1 | - | - | 50 x 0.01 | - | 5 x 0.001 | 5 x 0.001 |
| 15000 x 2 | - | 7500 x 2 | - | - | 75 x 0.02 | - | 7.5 x 0.002 | 7.5 x 0.002 |
| 20000 x 5 | - | 10000 x 2 | - | - | 100 x 0.02 | - | 10 x 0.002 | 10 x 0.002 |
| 25000 x 5 | - | 10000 x 2 | - | - | 100 x 0.02 | - | 10 x 0.002 | 10 x 0.002 |
| 30000 x 5 | - | 15000 x 2 | - | - | 150 x 0.02 | - | 15 x 0.002 | 15 x 0.002 |
| 50000 x 10 | - | 25000 x 5 | - | - | 250 x 0.05 | - | 25 x 0.005 | 25 x 0.005 |
| 75000 x 20 | - | 40000 x 10 | - | - | 400 x 0.1 | - | 40 x 0.01 | 40 x 0.01 |
| 100000 x 20 | - | 50000 x 10 | - | - | 500 x 0.1 | - | 50 x 0.01 | 50 x 0.01 |
| 150000 x 20 | - | 75000 x 20 | - | - | 750 x 0.2 | - | 75 x 0.02 | 75 x 0.02 |
| 200000 x 50 | - | 100000 x 20 | - | - | 1000 x 0.2 | - | 100 x 0.02 | 100 x 0.02 |
| 250000 x 50 | - | 100000 x 20 | - | - | 1000 x 0.2 | - | 100 x 0.02 | 100 x 0.02 |
| 300000 x 50 | - | 150000 x 20 | - | - | 1500 x 0.2 | - | 150 x 0.02 | 150 x 0.02 |
| 500000 x 100 | - | 250000 x 50 | - | - | 2500 x 0.5 | - | 250 x 0.05 | 250 x 0.05 |
| 750000 x 200 | - | 400000 x 100 | - | - | 4000 x 1 | - | 400 x 0.1 | 400 x 0.1 |
| 1000000 x 200 | - | 500000 x 100 | - | - | 5000 x 1 | - | 500 x 0.1 | 500 x 0.1 |
Torque Capacity x Resolution
| Capacity x Resolution | |||||||||
| lbFin | ozFin | lbFft | Ncm | Nm | Nmm | kgFmm | gFcm | kgFm | kgFcm |
| - | 10 x 0.001 | - | 7 x 0.001 | - | 70 x 0.1 | 7 x 00.1 | 700 x0.01 | - | - |
| - | 20 x 0.002 | - | 14 x 0.002 | - | 140 x 0.2 | 14 x 00.2 | 1400 x 0.2 | - | - |
| - | 50 x 0.005 | - | 35 x 0.005 | - | 350 x 0.5 | 35 x.005 | 3500 x 0.5 | - | - |
| - | 100 x 0.01 | - | 70 x 0.01 | - | 700 x 0.1 | 70 x 0.01 | 7000 x 1 | - | - |
| - | 1000 x 0.02 | - | 700 x 0.1 | - | 7000 x 1 | 700 x0.02 | 70000 x 10 | - | - |
| 12 x 0.002 | 192 x 0.05 | - | 135 x 0.02 | 1.35 x 0.0002 | - | - | - | - | 13.5 x 0.002 |
| 20 x 0.005 | 320 x 0.1 | - | 220 x 0.05 | 2.2 x 0.0005 | - | - | - | - | 22 x 0.005 |
| 25 x 0.01 | 400 x 0.2 | - | 290 x 0.05 | 2.9 x 0.0005 | - | - | - | - | 29 x 0.005 |
| 50 x 0.01 | 800 x 0.2 | - | 570 x 0.01 | 5.7 x 0.001 | - | - | - | - | 57 x 0.01 |
| 100 x 0.02 | 1600 x 0.2 | - | 1150 x 0.2 | 11.5 x 0.002 | - | - | - | - | 115x 0.02 |
| 150 x 0.02 | - | 12.5 x 0.002 | 1700 x 0.2 | 17 x 0.002 | - | 1700 x 0.2 | - | - | - |
| 200 x 0.05 | - | 16 x 0.02 | 2200 x 0.5 | 22 x 0.005 | - | 2200 x 0.2 | - | - | - |
| 250 x 0.5 | - | 20 x 0.05 | 2900 x 0.5 | 29 x 0.005 | - | 2900 x 0.2 | - | - | - |
| 400 x 0.1 | - | 32 x 0.05 | 4500 x 1 | 45 x 0.01 | - | 4500 x 1 | - | - | - |
| 500 x 0.1 | - | 40 x 0.01 | 5700 x 1 | 57 x 0.01 | - | 5700 x 1 | - | - | - |
| 600 x 0.1 | - | 50 x 0.01 | 6900 x 1 | 69 x 0.01 | - | 6900 x 1 | - | - | - |
| 1000 x 0.2 | - | 80 x 0.02 | 11500 x 2 | 115 x 0.02 | - | 11500 x 2 | - | - | - |
| 1500 x 0.2 | - | 125 x 0.2 | 17000 x 2 | 170 x 0.02 | - | 17000 x 2 | - | - | - |
| 2000 x 0.5 | - | 150 x 0.2 | 22000 x 5 | 220 x 0.05 | - | 22000 x 5 | - | - | - |
| 2500 x 0.5 | - | 200 x 0.5 | 29000 x 5 | 290 x 0.05 | - | 29000 x 5 | - | - | - |
| 5000 x1 | - | 400 x 0.1 | 57000 x 10 | 570 x 0.01 | - | 57000 x 10 | - | - | - |
| 6000 x 1 | - | 500 x 0.1 | 69000 x 10 | 690 x 0.01 | - | 69000 x 10 | - | - | - |
| 10000 x 2 | - | 800 x 0.2 | 115000 x 20 | 1150 x 0.2 | - | - | - | 115 x 0.02 | - |
| 15000 x 2 | - | 1250 x 0.2 | 170000 x 20 | 1700 x 0.2 | - | - | - | 170 x 0.02 | - |
| 20000 x 5 | - | 2000 x 0.5 | 220000 x 50 | 2200 x 0.5 | - | - | - | 220 x 0.05 | - |
| 50000 x 10 | - | 4000 x 1 | 570000 x 100 | 5700 x 1 | - | - | - | 570 x 0.1 | - |
| 100000 x 20 | - | 8000 x2 | - | 11500 x 2 | - | - | - | 1150 x 0.2 | 115000 x 20 |
| 150000 x 20 | - | 12500 x 2 | - | 17000 x 2 | - | - | - | 1700 x 0.2 | 170000 x 20 |
| 200000 x 50 | - | 15000 x 2 | - | 22000 x 5 | - | - | - | 2200 x 0.5 | 220000 x 50 |
| 500000 x 100 | - | 40000 x 10 | - | 57000 x 10 | - | - | - | 5700 x 1 | 570000 x 100 |
Included Items
- (1) MF100 Sensor Interface

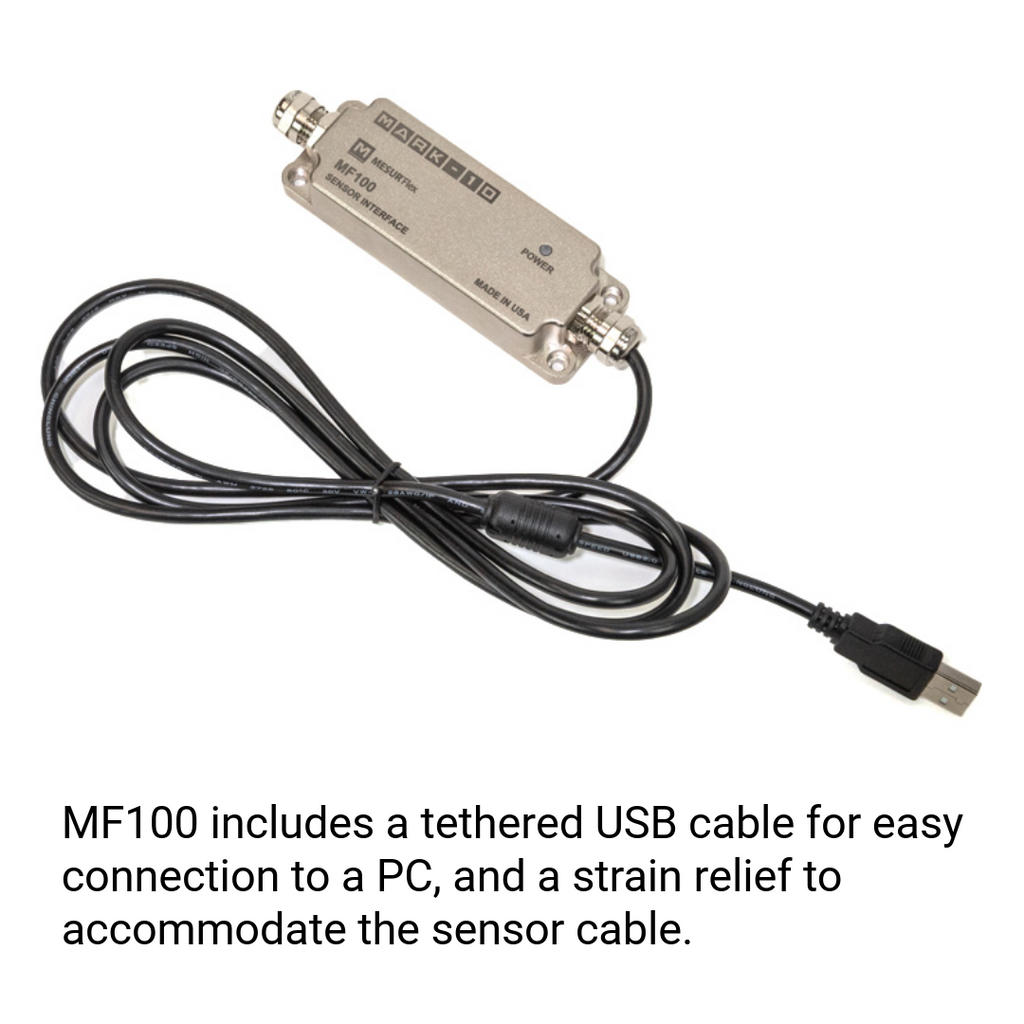

- (1) 5' [1.5 m] tethered USB cable
- (1) Strain relief for sensor cable
- (1) MESUR®Flex software
Dimensions - in[mm]
