Mark-10 Manual Wire and Crimp Pull Tester WT-205

Mark-10 SKU: WT-205

Price:
Sale price$2,489.00 USD Regular price$2,620.00 USD
Lead Time: Ships in 3-6 business days
Free Shipping
Free Shipping on orders $200 and up.
Credit card and PayPal are available at checkout. If you need a quote or want to pay with a PO please contact info@jlwinstruments.com or call 312-666-0595.

Do you already have this equipment and need it calibrated?

REQUEST CALIBRATON

Description

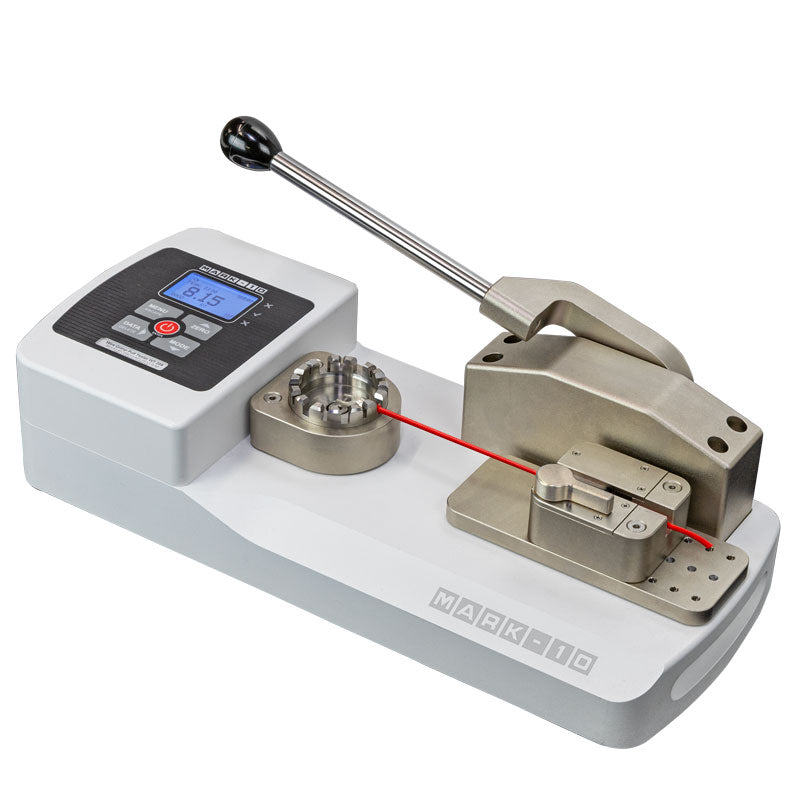

The Mark-10 WT-205 Wire Crimp Pull Tester is a portable, precision solution designed to streamline wire crimp testing while ensuring compliance with industry standards. With a force capacity of up to 200 lbF (1,000 N) and an ergonomic lever, it allows technicians to test quickly and accurately with minimal effort. The adjustable terminal fixture supports a wide range of wire sizes (up to AWG 3), and the self-tightening wedge grip provides a secure hold on the cable—delivering consistent, repeatable results.

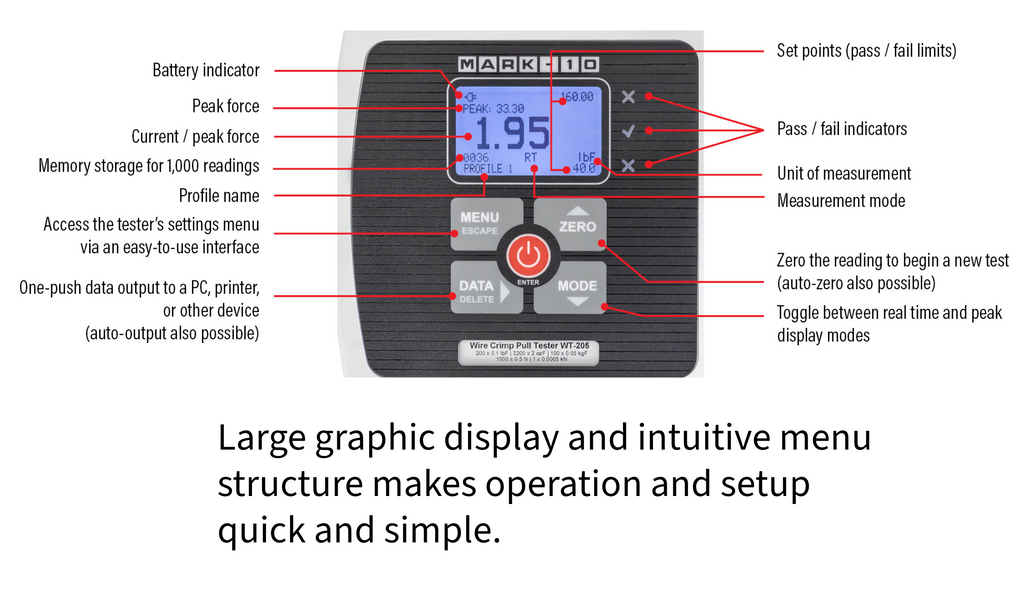

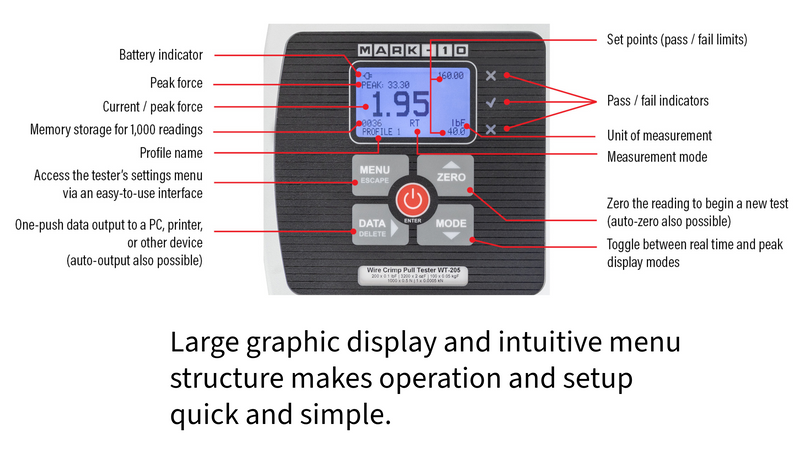

Equipped with a backlit LCD display, the WT-205 shows real-time and peak force readings, pass/fail indicators, and a load bar to prevent overload. It stores up to 1,000 readings, automatically captures peak force at break, and resets for the next test—boosting productivity and reducing manual input. With multiple output options (USB, RS-232, Mitutoyo, analog), it integrates seamlessly into QA systems. Whether you're in automotive, aerospace, electronics, or general manufacturing, the WT-205 delivers lab-grade performance in a compact, user-friendly package.

Features

  • Measures real-time and peak force values

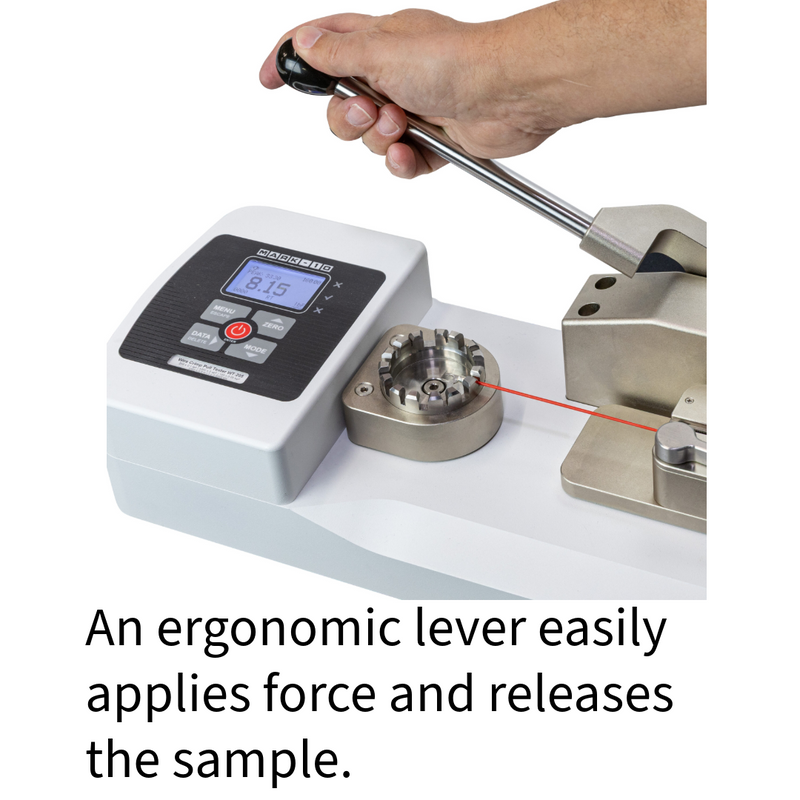

  • Ergonomic lever operation produces 200 lbF [1,000 N]

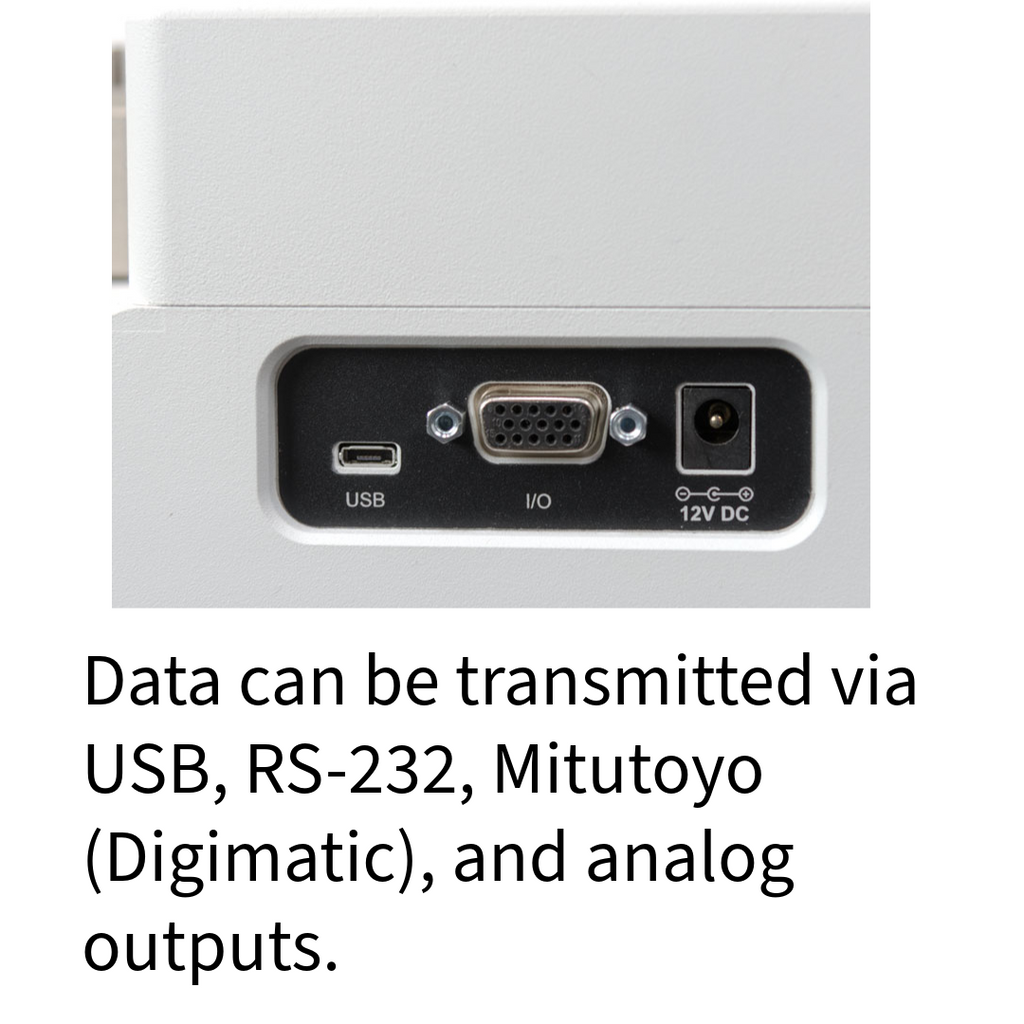

  • USB, RS-232, Mitutoyo (Digimatic), and analog outputs
  • Automatic output / data storage / zeroing upon sample break helps automate testing processes
  • 1,000-point data memory with statistics and outputs
  • Password protection prevents unauthorized changes
  • Programmable set point indicators and outputs for pass/ fail determination
  • High-speed 7,000 Hz sampling rate accurately captures peak force values
  • Configurable audio alarms and key tones
  • Mounting holes for bench mounting

Specifications

Capacity x Resolution: 200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN
Accuracy: ±0.2% of full scale
Wire gauge range*: AWG30 - AWG3*
Wire diameter range: 0.01 - 0.25 in [0.3 - 6.3 mm]
Minimum sample length: 2.1 in [53.3 mm], excluding termination
Maximum sample elongation: 1.7 in [43.2 mm]
Power: AC adapter: 100-240VAC, 50-60 Hz, 0.3A, Battery: Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and tester powers off automatically when power reaches critical stage.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Sampling rate: 7,000 Hz
Outputs: USB / RS-232: Configurable up to 115,200 baud. .
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity.
Set points: Three open drain lines.
Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 16.1 lb [7.3 kg]
Shipping weight: 24.5 lb [11 kg]
Warranty: 3 years (see individual statement for further details)
HS code:
Model no. HS code:
WT-205 9024100000
CERT
15-1004
WT3002
WT3003
WT3004
AC1049
AC1109
AC1111
AC1118
AC1030
AC1031
AC1032
AC1035
9024800000
ECCN: EAR99
Country of origin: USA
* Including insulation. To ensure the wire sample will fit into the WT-205, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination.
Included Items
  • (1) WT-205 Wire Crimp Pull Tester
  • (1) Removable lever
  • (1) USB cable
  • (1) Battery
  • (1) AC adapter
  • (1) Certificate of calibration without data

Optional Functions

Any of these optional functions may be purchased at time of order or may be enabled in the field at a later date through a simple activation process. A complete options package is also available, including all of the listed features at a discounted price. The tester is shipped in Demo Mode, during which time all available functions are enabled for 160 hours of operation.

Feature Part No. Description

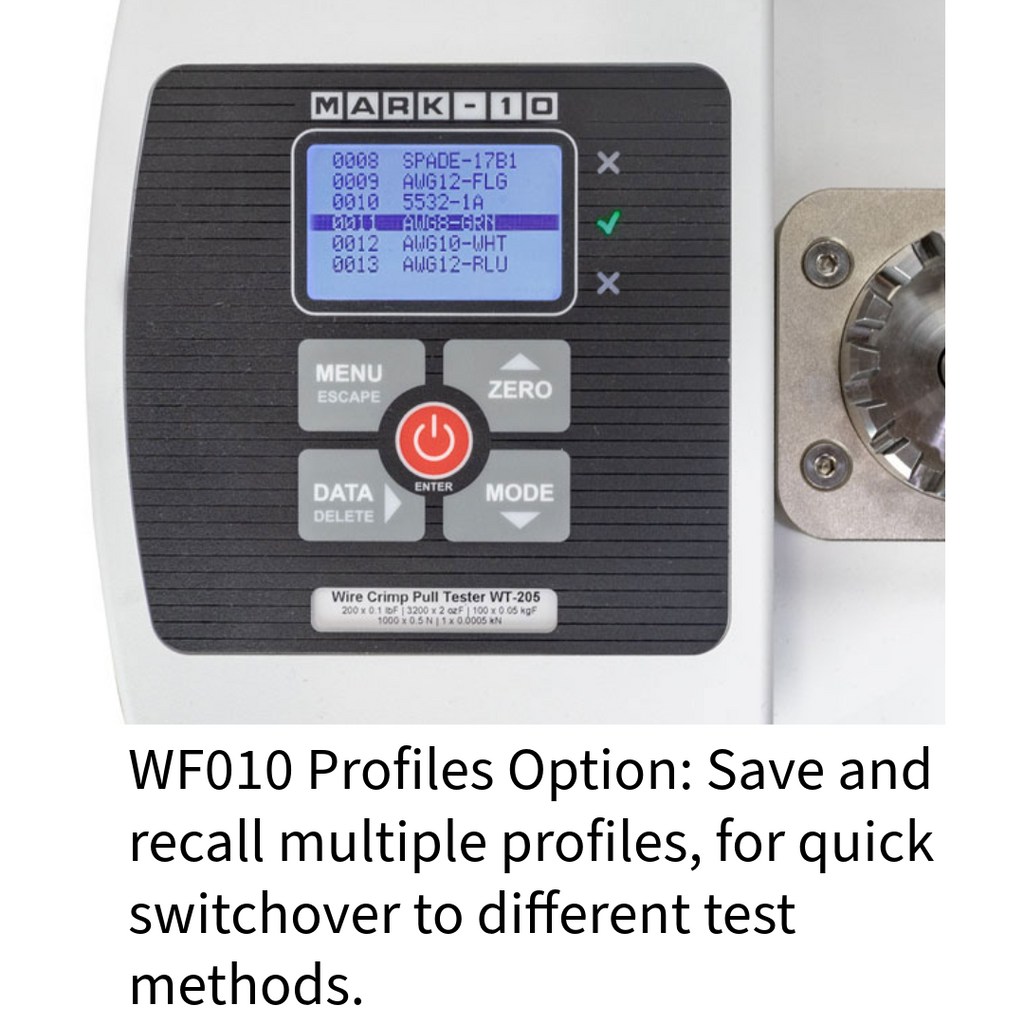

Profiles WF010 Save and recall sets of test parameters, such as speed, pass/fail limits, unit of measurement, etc.
Maximum of 500 profiles may be stored.
Date and time stamp WF013 A date and time stamp is applied to each saved data point.
Complete options package WFCOMP-205 Includes all optional functions listed above.

Dimensions - in [mm]
