Description

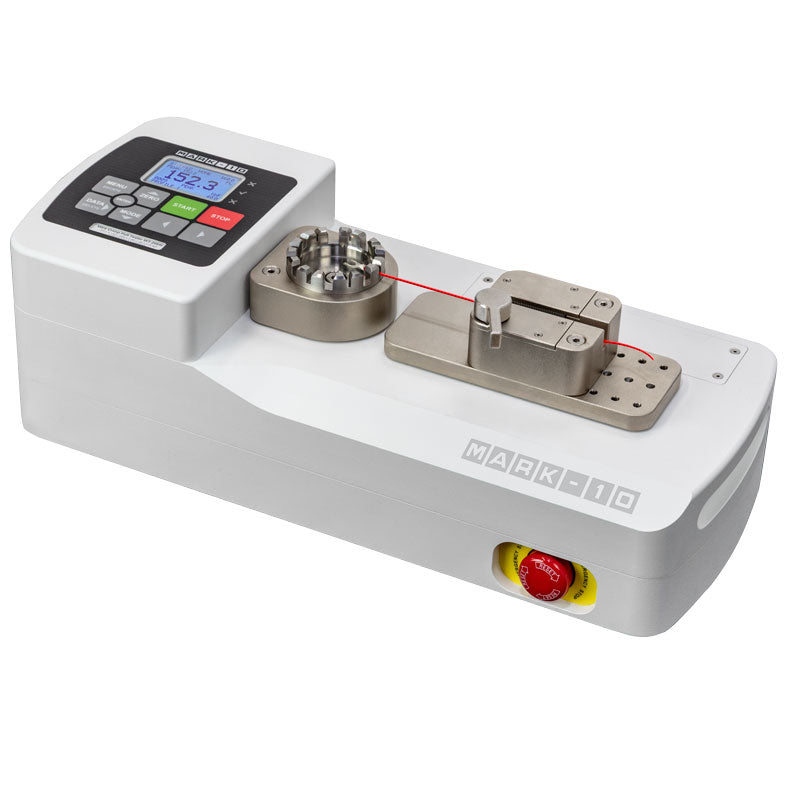

Accurately and efficiently measure wire crimp pull forces up to 200 lbF [1 kN] with the WT-205M motorized pull tester. This portable and customizable tester meets UL, ISO, ASTM, SAE, and MIL standards for both destructive and non-destructive testing.
Perform pull-to-break, pull-to-load, or load-hold tests per UL 486A/B requirements. Programmable pass/fail limits with visual and audio alerts ensure easy identification of non-conforming samples.

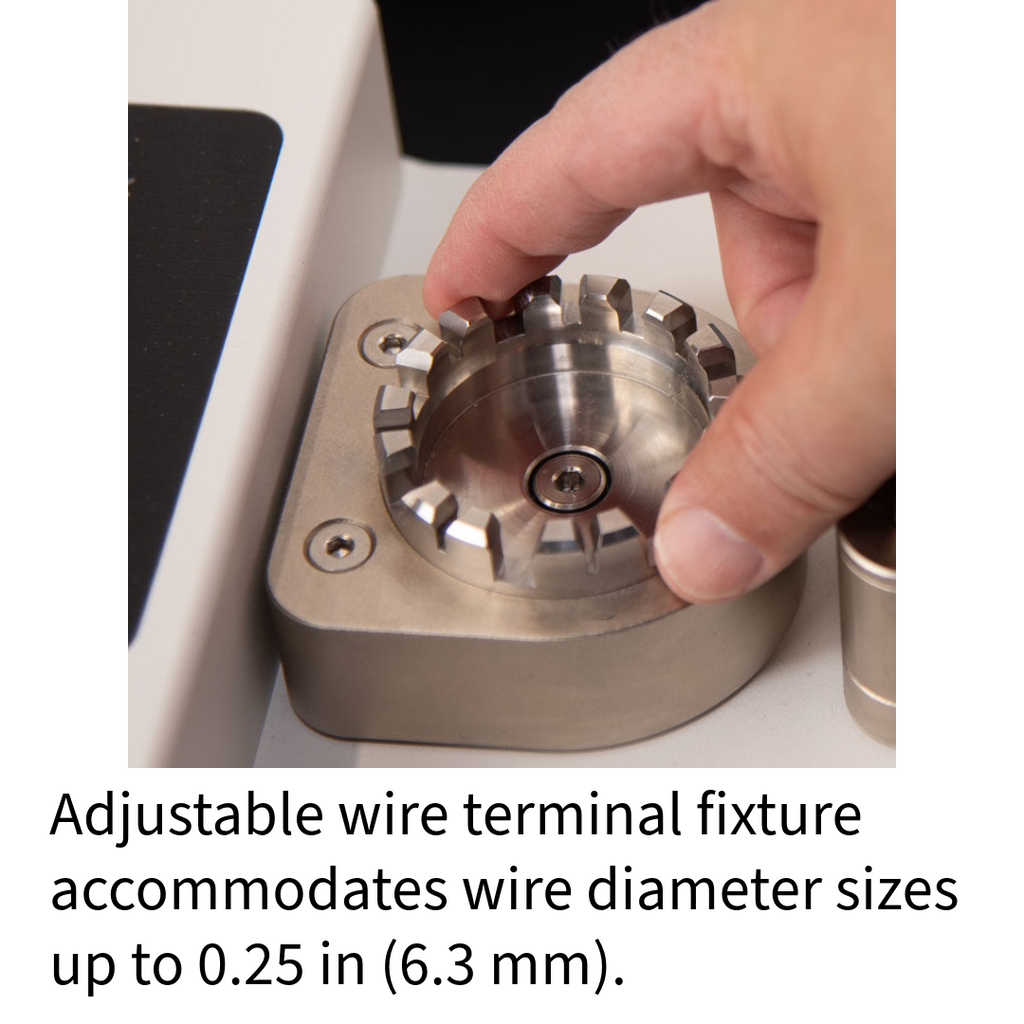

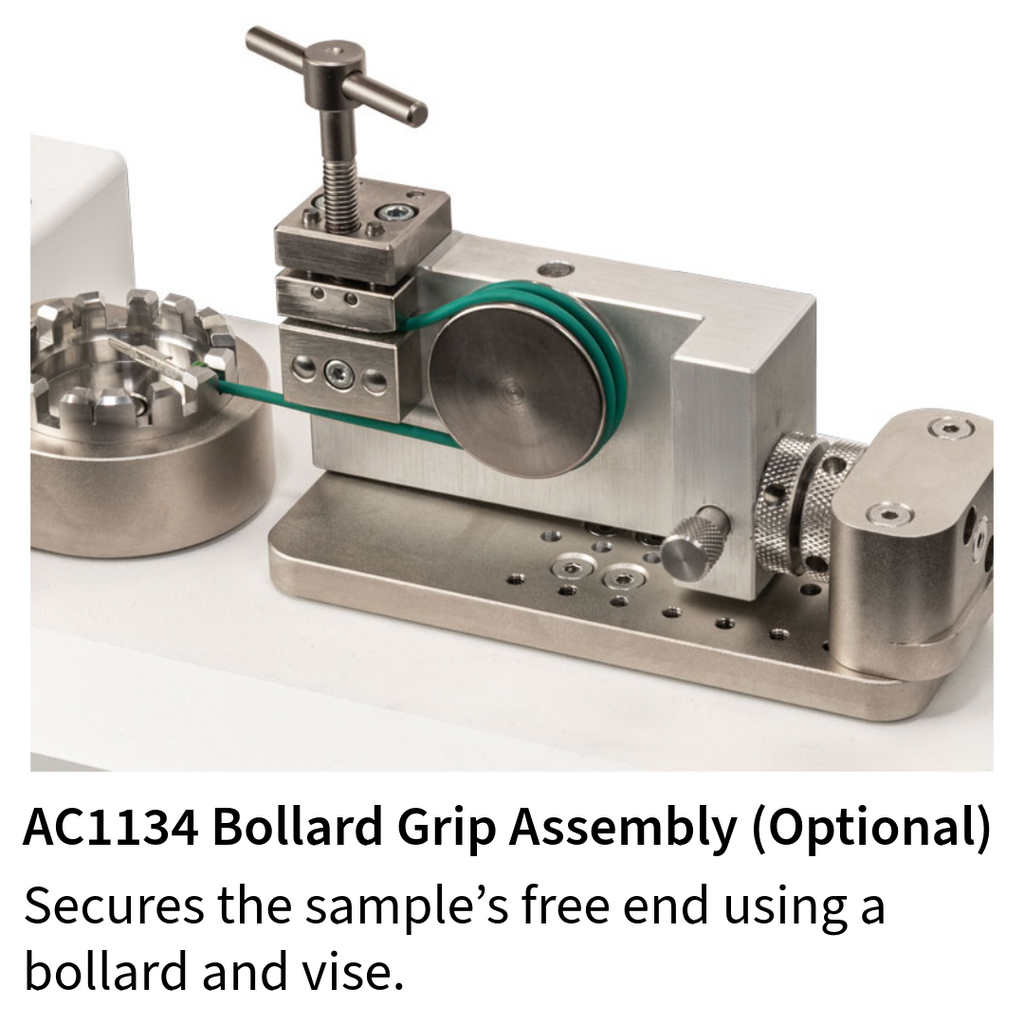

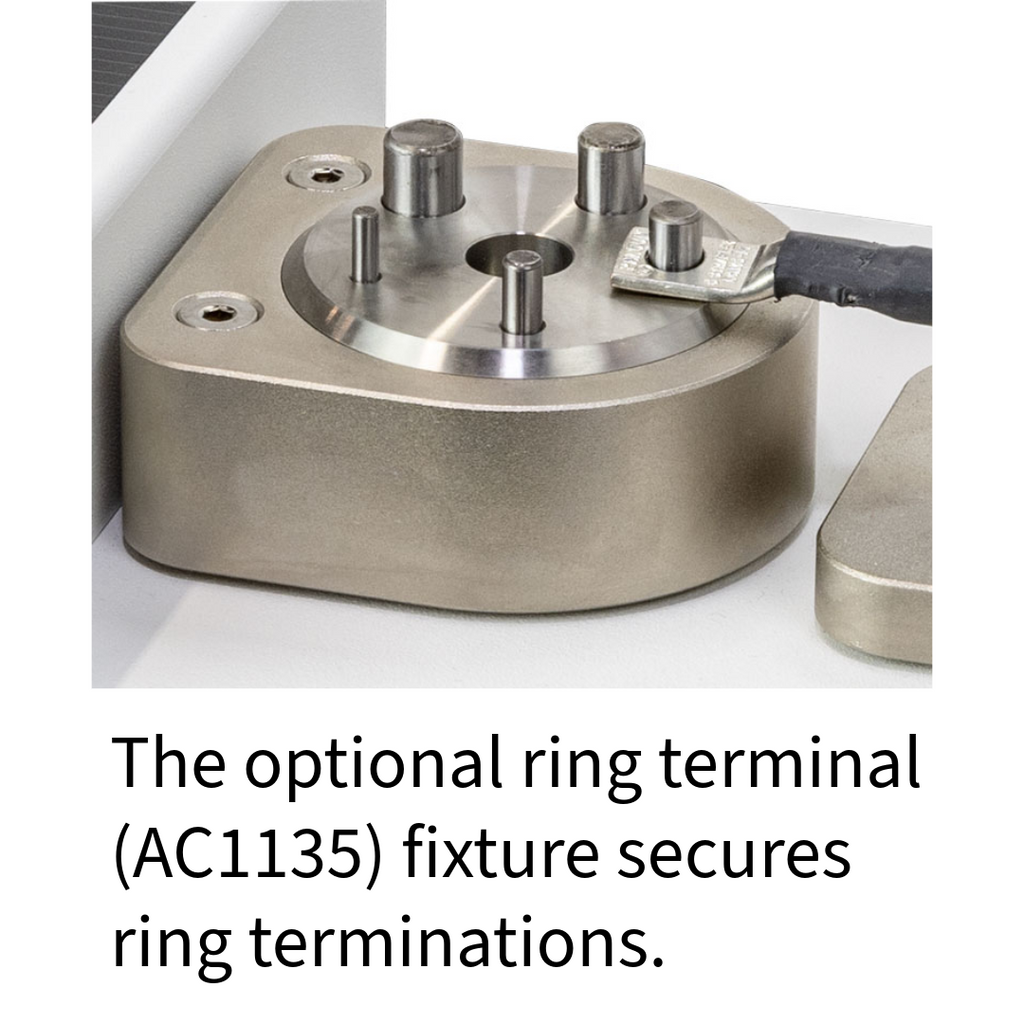

The standard terminal fixture fits wire sizes up to AWG 3 (0.25 in [6.3 mm]), while a self-tightening wedge grip secures the free end. Optional interchangeable grips accommodate a variety of materials—samples can be sent to Mark-10 for grip recommendations.

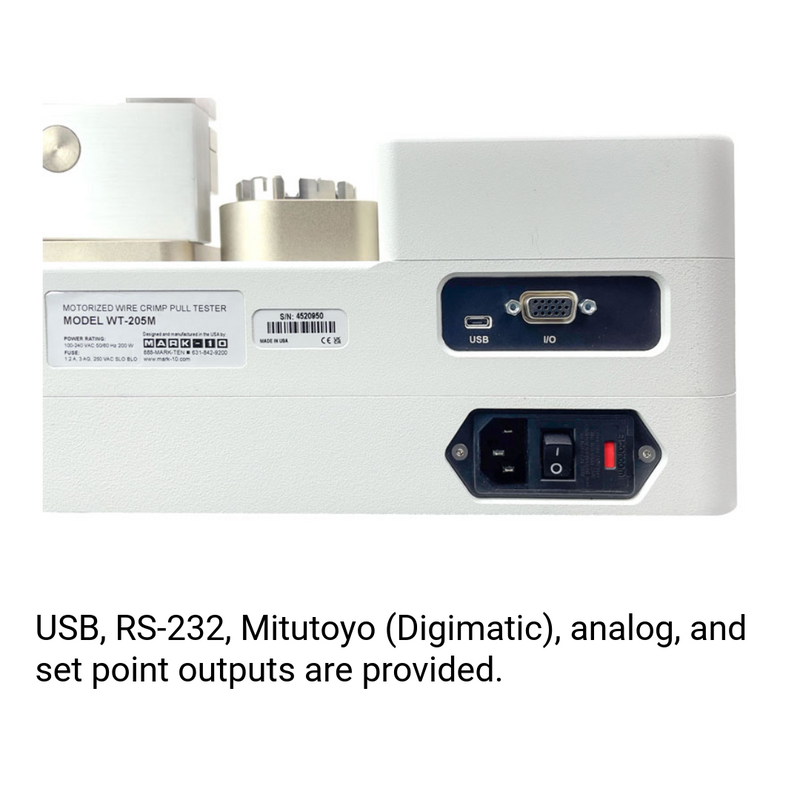

Store up to 2,000 test readings with date/time stamps. Export data via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. Auto-reverse, peak capture, and auto-zero functions enhance test efficiency. The Profiles feature allows quick setup recall.
Includes MESUR® Lite software for data acquisition and Excel export.
Features

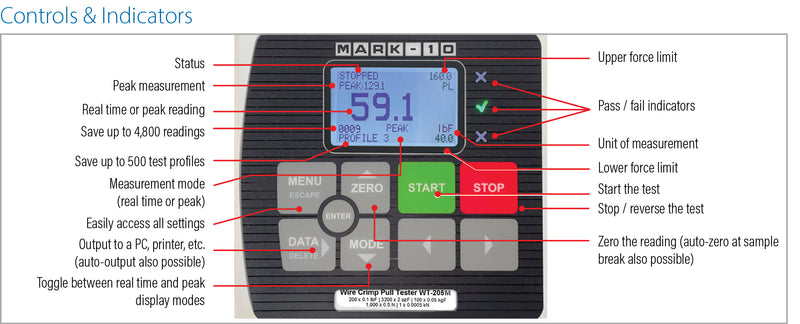

- Measures real-time and peak force values
- Selectable test speed, w/high speed approach and reverse
- Auto-reverse at sample break or load
- USB, RS-232, Mitutoyo (Digimatic), and analog outputs
- Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes
- 2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional)
- Password protection prevents unauthorized changes
- Pass / fail indicators, audio alerts, and outputs
- Save and recall up to 500 profiles for various test requirements (optional function)
- Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions)
- Date / time stamp for all saved data (optional function)
Specifications
| Capacity x Resolution: | 200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN | |
| Accuracy: | ±0.2% of full scale | |
| Wire gauge range*: | AWG30 - AWG 3* [0.01 - 0.25 in (0.3 - 6.3 mm) dia.] | |
| Sample length range: | 2.1 in [53.3 mm], excluding termination | |
| Max. elongation: | 2.3 in [58.4 mm] | |
| Speed range: |
Test speed: 0.4 - 12.0 in/min [10 - 300 mm/min] Approach/reverse speed: 12.0 - 25.0 in/min [300 - 625 mm/min] Return speed: 12.0 -45.0 in/min [300 - 1,125 mm/min] |
|
| Speed setting accuracy: | ±0.2% | |
| Speed variation with load: | ±0% [Stepper motor driven] | |
| Power: | Universal input 80-240 VAC, 50/60 Hz | |
| Sampling rate: | 7,000 Hz | |
| Outputs: |
USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC at capacity, ±0.25% of full scale. General purpose: Three open drain outputs, one input. Set points: Three open drain lines. |
|
| Overload protection: | Motor stops at 120% of full scale of the force sensor (display shows “OVER” at 110% and above) | |
| Weight: | 28 lb [12.7 kg] | |
| Shipping weight: | 33 lb [15.0 kg] | |
| Environmental requirements: | 40 - 100°F, max. 96% humidity, non-condensing | |
| Warranty: | 3 years (see individual statement for further details) | |
|
HS code:
|
Model no. | HS code: |
| WT-205M All optional functions |
9024100000 | |
| CERT 15-1004 WT3004 WT3002 WT3003 AC1049 AC1109 AC1111 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
Included Items
- (1) WT-205M Wire Crimp Pull Tester
- (1) USB cable
- (1) Power cord
- (1) Certificate of calibration without data
Optional Functions
Any of these optional functions may be purchased at time of order or may be enabled in the field at a later date through a simple activation process. A complete options package is also available, including all of the listed features at a discounted price. The tester is shipped in Demo Mode, during which time all available functions are enabled for 160 hours of operation.
| Feature | Part No. | Description |
| Profiles | WF010 | Save and recall sets of test parameters, such as speed, pass/fail limits, unit of measurement, etc. Maximum of 500 profiles may be stored. |
| Pull to load | WF011 | The tester will stop when the specified load has been reached. |
| Load holding | WF012 | The tester will stop and maintain a specified load for a specified period of time. |
| Date and time stamp | WF013 | A date and time stamp is applied to each saved data point. |
| Complete options package | WFCOMP-205M | Includes all optional functions listed above. |
