Load Cells

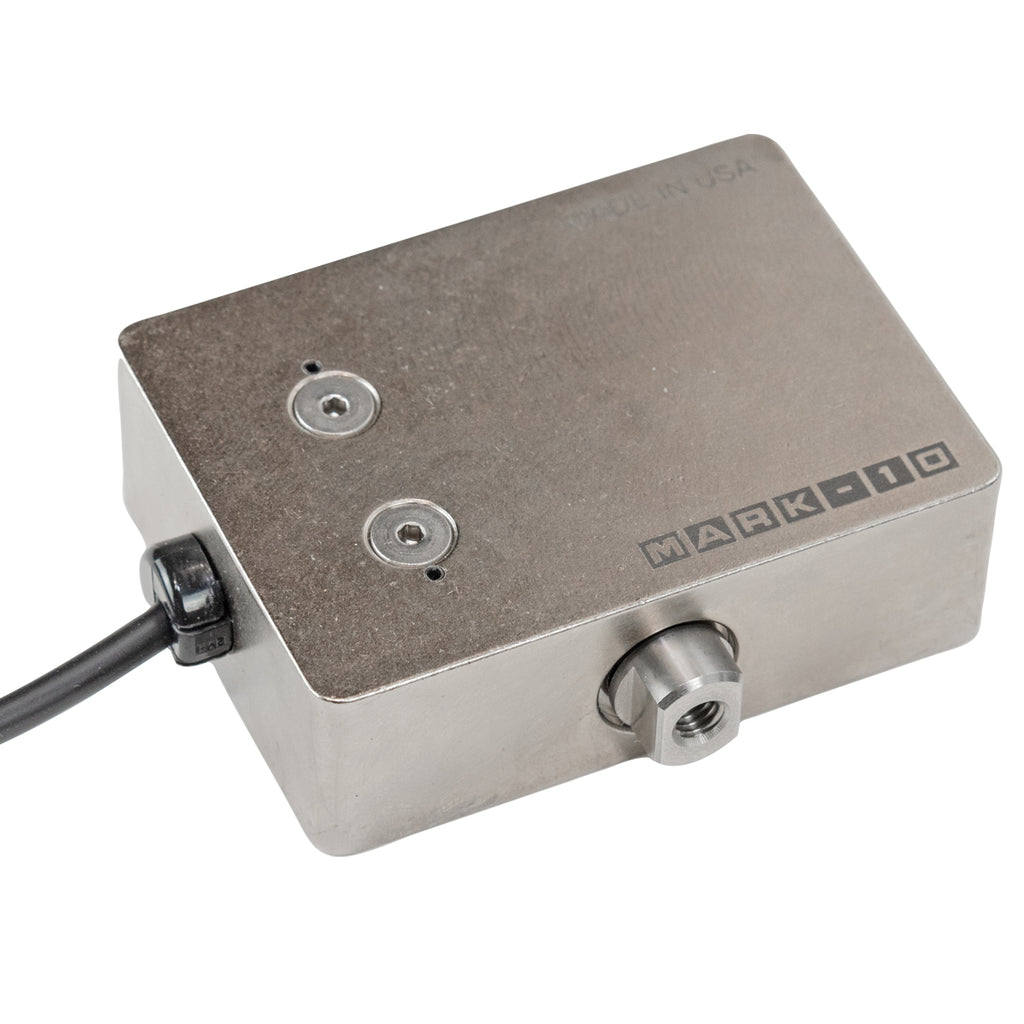

Series R03 Load Cell

Sale price $736.25 Regular price $775.00

Choose a model
SKU: MR03-025
Brand: Mark-10
Lead Time: Ships in 3-6 business days
Free Shipping
Free Shipping on orders $100 and up.

MR03 load cells are designed for measuring tension and compression force, with applications in virtually every industry.

The sensor can be integrated into an existing system or mounted to a Mark-10 test stand. A shortened cable is available for mounting to ESM1500LC, ESM303, and ESM303H test stands. Capacities available from 0.25 to 100 lbF [1 N to 500 N]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test™ technology.

  • Accuracy: +/-0.15% of full scale + indicator
  • Safe Overload: 150% of full scale
  • Interfaces with 7i, 5i, and 3i indicators

| Capacity x Resolution with Models 5i and 7i Indicator

Model lbF ozF gF kgF N mN
MR03-025 0.25 x 0.0001 4 x 0.002 100 x 0.05 - 1 x 0.0005 1000 x 0.5
MR03-05 0.5 x 0.0002 8 x 0.005 250 x 0.1 - 2.5 x 0.001 2500 x 1
MR03-2 2 x 0.001 32 x 0.02 1000 x 0.5 1 x 0.0005 10 x 0.005 -
MR03-5 5 x 0.002 80 x 0.05 2500 x 1 2.5 x 0.001 25 x 0.01 -
MR03-10 10 x 0.005 160 x 0.1 5000 x 2 5 x 0.002 50 x 0.02 -
MR03-20 20 x 0.01 320 x 0.2 10000 x 5 10 x 0.005 100 x 0.05 -
MR03-50 50 x 0.02 800 x 0.5 25000 x 10 25 x 0.01 250 x 0.1 -
MR03-100 100 x 0.05 1600 x 1 50000 x 20 50 x 0.02 500 x 0.2 -



| Capacity x Resolution with a Model 3i Indicator

Model

lbF gF kgF N
MR03-025 0.25 x 0.0002 100 x 0.1 - 1 x 0.001
MR03-05 0.5 x 0.0005 250 x 0.2 - 2.5 x 0.002
MR03-2 2 x 0.002 - 1 x 0.001 10 x 0.01
MR03-5 5 x 0.005 - 2.5 x 0.002 25 x 0.02
MR03-10 10 x 0.01 - 5 x 0.005 50 x 0.05
MR03-20 20 x 0.02 - 10 x 0.01 100 x 0.1
MR03-50 50 x 0.05 - 25 x 0.02 250 x 0.2
MR03-100 100 x 0.1 - 50 x 0.05 500 x 0.5


|
Dimensions

Mark-10 MR03 Dimensional Drawings
