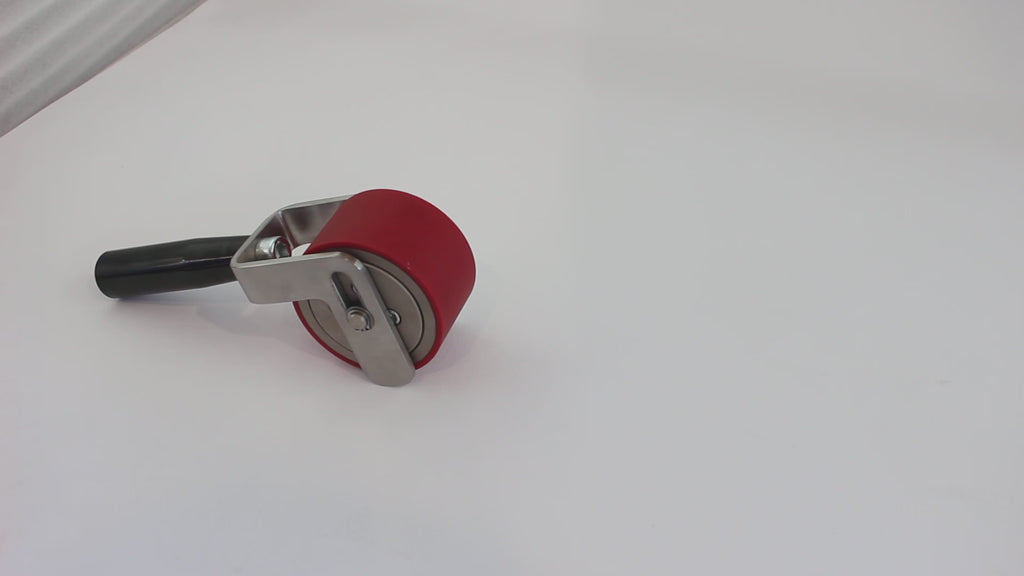

Peel Strength Test Roller According to ASTM-D3330

JLWForce SKU: PF989-95-45

Price:
Sale price$805.00 USD
Lead Time: Ships in 7-10 business days
Free Shipping
Free Shipping on orders $200 and up.
Credit card and PayPal are available at checkout. If you need a quote or want to pay with a PO please contact info@jlwinstruments.com or call 312-666-0595.

Description

Peel roller is used to apply adhesive sample to a test panel of the peel fixture with an even pressure.

According to ASTM-D3330, DIN EN1939, DIN EN ISO29862.

Why Use a Peel Roller?

  • Ensures the adhesive is applied with uniform pressure across the sample length and width.
  • Standardizes sample preparation, which is crucial for reliable comparison between tests.
  • Eliminate trapped air between adhesive layers and substrates, which could otherwise affect bond strength and lead to premature failure.
  • Uniform pressure promotes optimal contact between adhesive and substrate, allowing for better bonding performance.
  • Many test standards require or recommend using a standardized peel roller for sample prep. For example, ASTM D3330 for pressure-sensitive adhesives.
  • Reduces human error, especially in cases where subjective or inconsistent hand pressure would otherwise affect results.

Specifications

  • Rubber hardness: 80+/-5 Shore A
  • Rubber thickness: 6+/-0.5 mm
  • Roller width: 45 mm
  • Roller diameter: 95 mm
  • Weight: (only roller without handle): 2040 g +/-45 g
  • Roller (non-rubber parts): Steel, nickel-plated + Polyurethane coated
  • Handle: Stainless steel V2A + plastic
  • Temperature range: 0 … +70°C

Included Items

  • 1 peel roller
  • Certificate of conformance
