Description

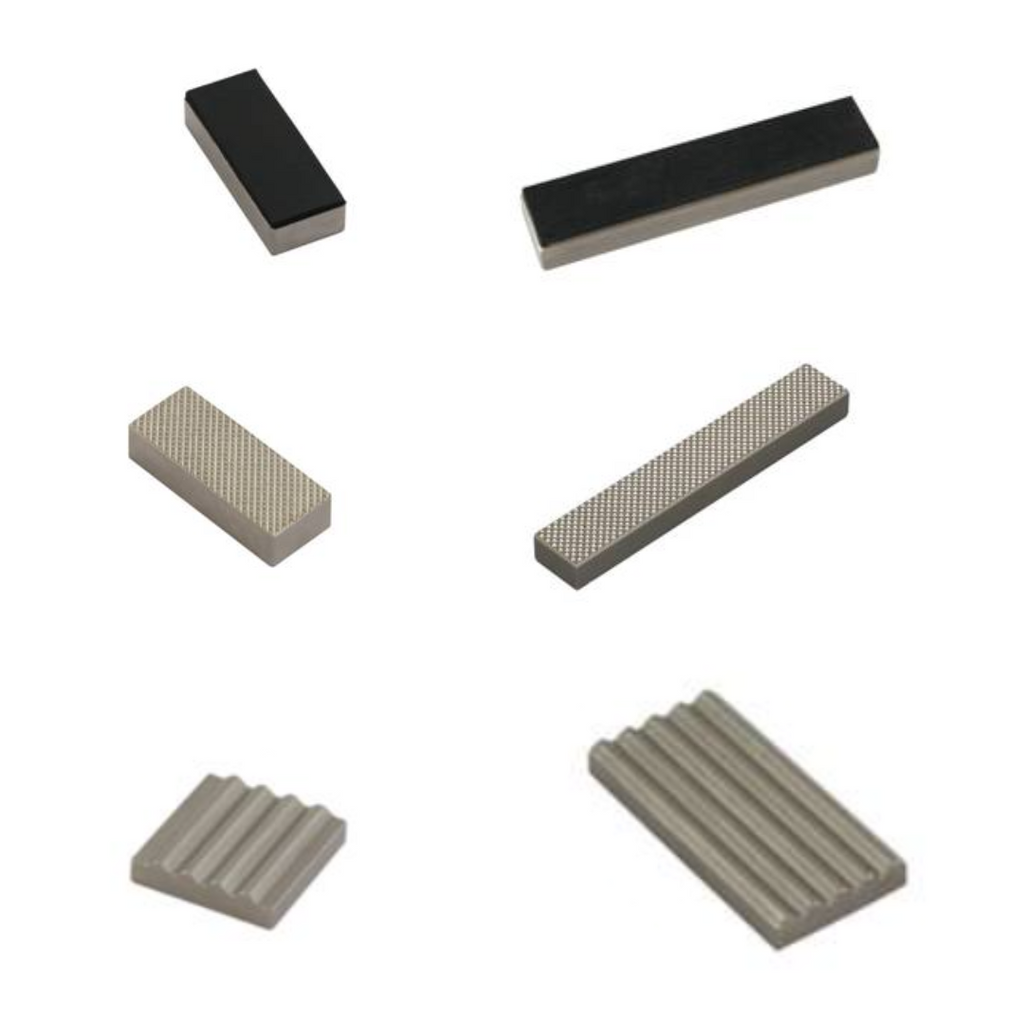

Jaws with different surface types and dimensions for PG220 pneumatic vice grips. The parts on this page are for ordering additional jaws.
Jaws can be replaced using a hex key.
Compatible Vice Grips
Models
| Jaw Model | Surface Type | Clamping Surface Dimensions | Weight (2 jaws) |
| JAWS-PG220-P25 | Pyramid | 10 x 25 mm | 17 g |
| JAWS-PG220-P50 | Pyramid | 10 x 50 mm | 43 g |
| JAWS-PG220-R25 | Rubber | 10 x 25 mm | 19 g |
| JAWS-PG220-R50 | Rubber | 10 x 50 mm | 48 g |
| JAWS-PG220-W25 | Wave | 25 x 25 mm | 47 g |
| JAWS-PG220-W50 | Wave | 25 x 50 mm | 100 g |
Jaw Surface Types
| Type | Description | Materials |
| Pyramid | -Pyramids 1.2x45° -Hardened steel 58 HRC -Nickel-plated |
Metal, wood, plastic, gypsum |
| Rubber | -1 mm rubber coating (NBR) -Nickel-plated -30°C..+70°C |
Paper, foils, cellulose, aluminum, single fibers, film, wire, monofilaments
|
| Wave | -Wave 5 mm -Hardened steel 58HRC -Nickel-plated |
Textiles, tissues, fabrics |
Included Items
- (2) Jaws
