Description

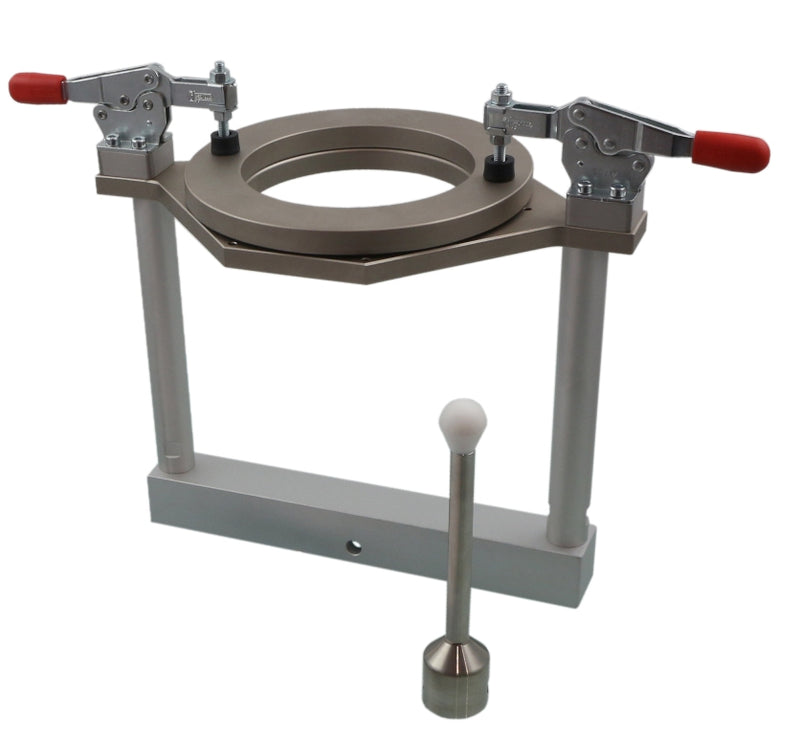

Puncture fixture according to ASTM-D5748 to determine protrusion puncture resistance of stretch wrap film.
This light version is designed to fit smaller machines.
Toggle clamps and a compression ring with concentric ridges effectively secure the material, while the included plunger with ball probe stretches and ruptures the sample.
Specifications
- Force capacity: 1 kN [200 lbF]
- Connection: 15.9 mm (5/8") female eye end - Adapters for other sizes
- Fixture body: Steel, nickel-plated
- Temperature Range: 0 C to +70 C
- Weight
- Fixture: 8.4 lbf [3.8 kg]
- Probe: 0.4 lb [0.2 kg]
Included Items
- (1) Bottom puncture fixture
- (1) Probe
Dimensions - mm
