Mark-10 Series 3 (M3) Digital Force Gauge

Mark-10 SKU: M3-012

Choose a model: M3-012 [0.12 lbF Capacity]
Price:
Sale price$1,220.75 USD Regular price$1,285.00 USD
Lead Time: Ships in 1-3 business days
Free Shipping
Free Shipping on orders $200 and up for orders placed online.
Credit card and PayPal are available at checkout. If you need a quote or want to issue a purchase order with payment terms please contact info@jlwinstruments.com or call 312-666-0595.
REQUEST CALIBRATON

Description

Series 3 digital force gauges are designed for tension and compression force testing in numerous applications from 0.12 lbF to 500 lbF (0.5 N to 2500 N).

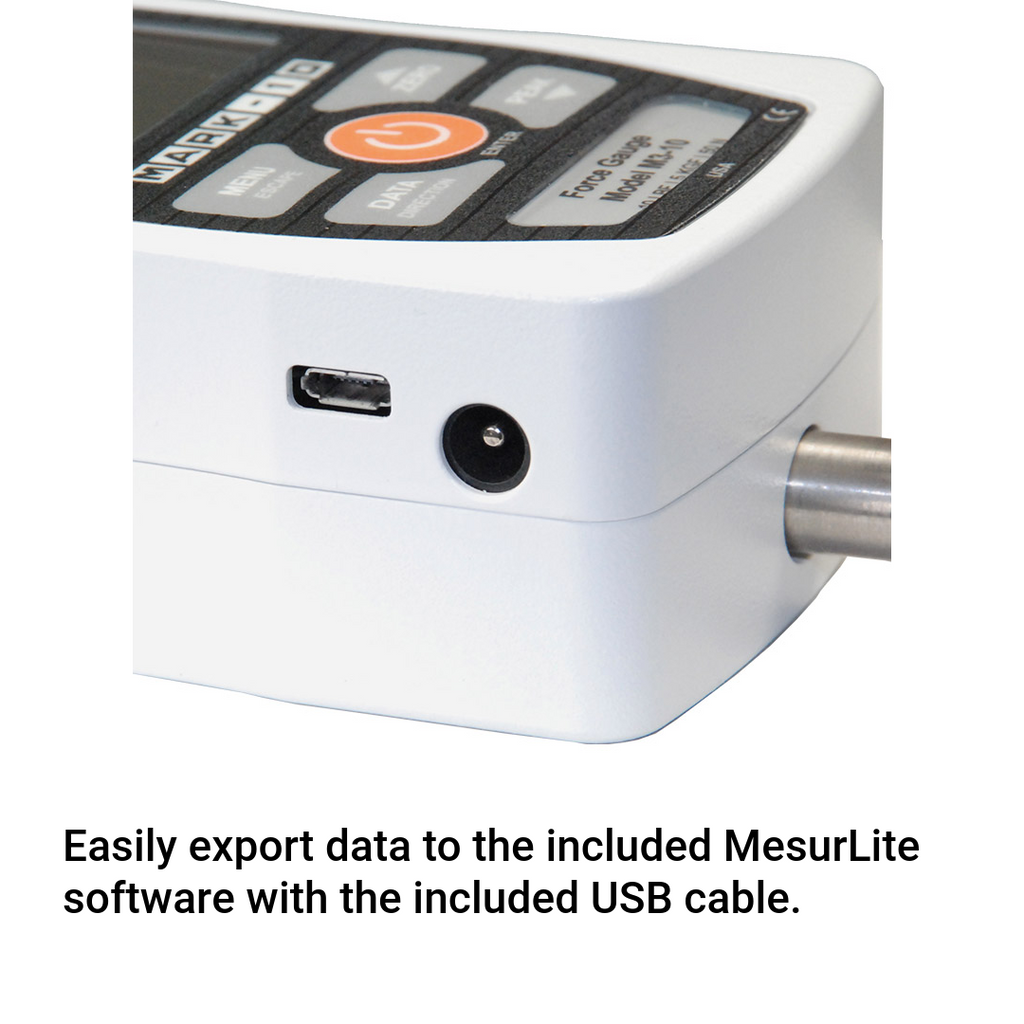

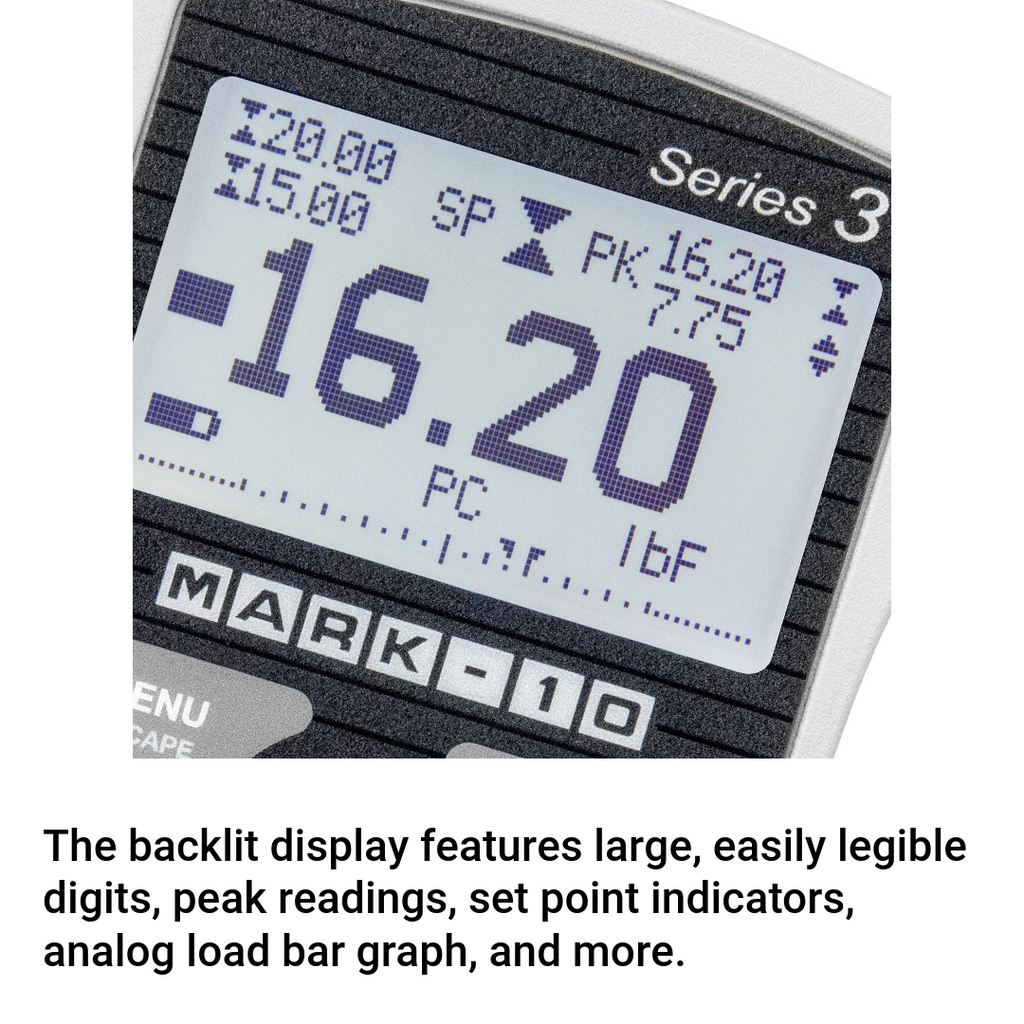

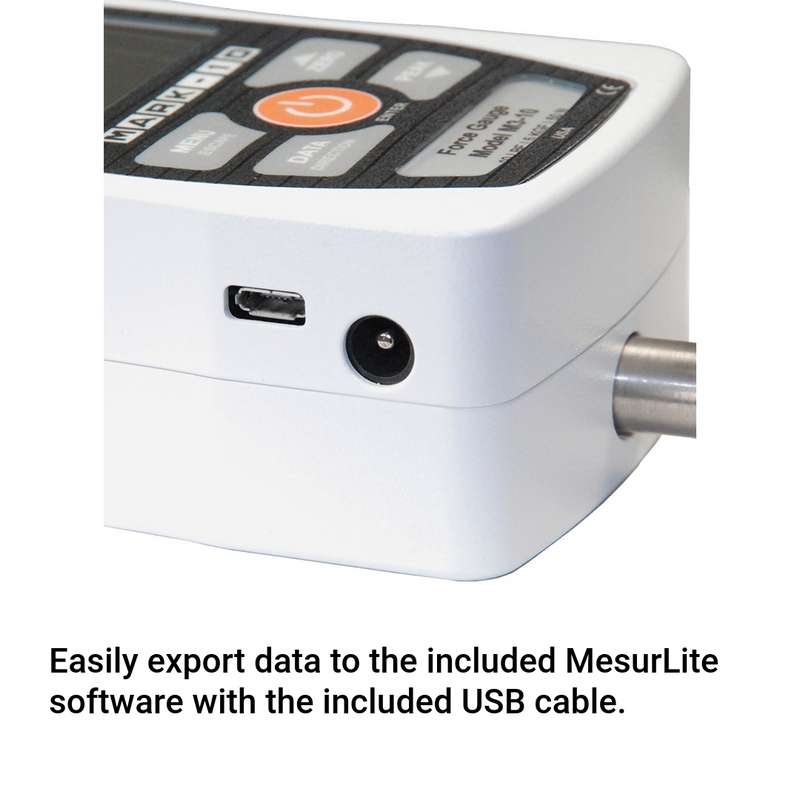

The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

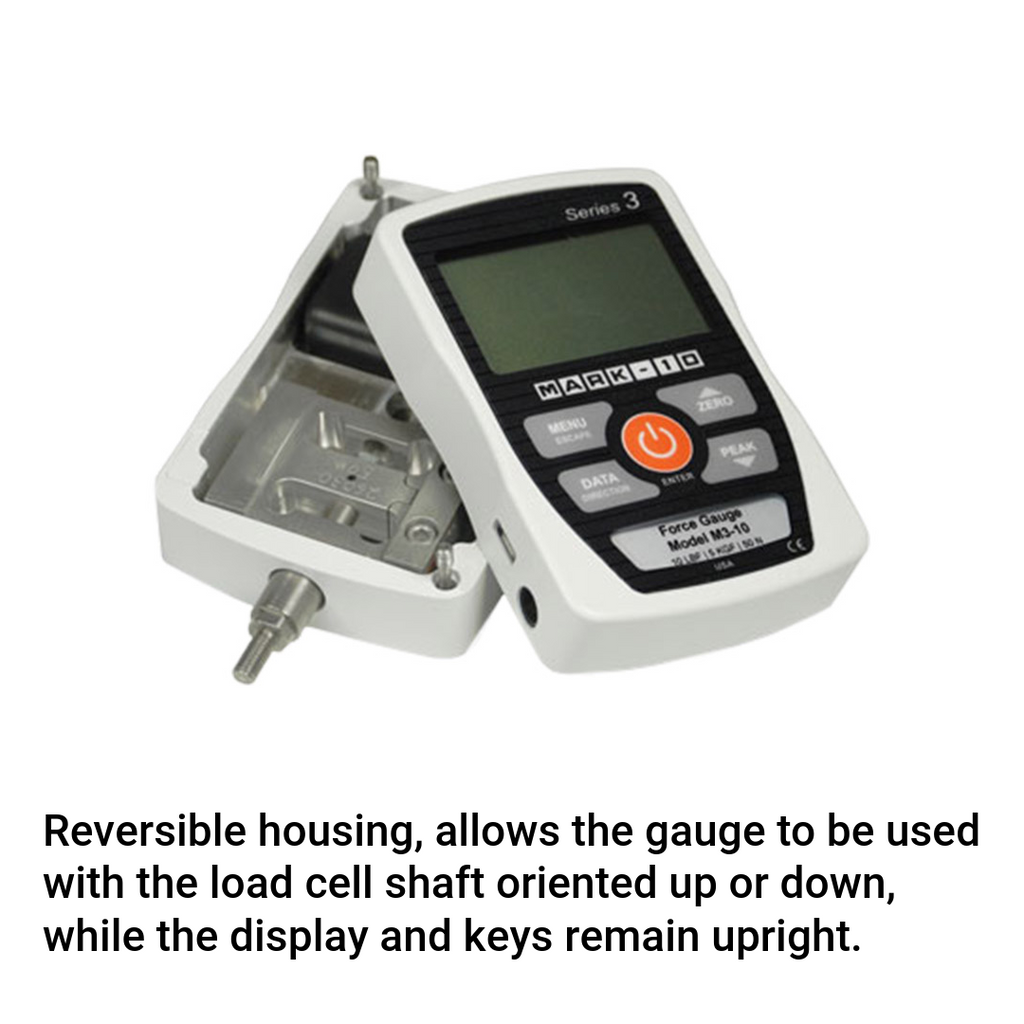

An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

The gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.


Features & Specifications

  • Accuracy: +/-0.3% of full scale
  • Sampling Rate: 2,000 Hz
  • Outputs: USB
  • Safe Overload: 200% of full scale
  • Threaded Connection
    • M3-012 - M3-100: #10-32 UNF
    • M3-200 - M3-500: 5/16-18 UNC
  • Measurement Units: lbF, gF, kgF, N (depending on model)
  • Power:  AC or rechargeable battery
  • Peak readings always displayed
  • 3 Year Warranty

Included Items

  • Carrying case
  • Attachments: Chisel, cone, v-groove, hook, flat, extension rod
  • AC adapter
  • Battery
  • USB cable
  • NIST-traceable certificate of calibration (data is available for an additional charge).




Models and Capacities Available

Capacity x Resolution
Model lbF kgF gF N
M3-012 0.12 x 0.0001 - 50 x 0.05 0.5 x 0.0005
M3-025 0.25 x 0.0002 - 100 x 0.1 1 x 0.001
M3-05 0.5 x 0.0005 - 250 x 0.2 2.5 x 0.002
M3-2 2 x 0.002 1 x 0.001 - 10 x 0.01
M3-5 5 x 0.005 2.5 x 0.002 - 25 x 0.02
M3-10 10 x 0.01 5 x 0.005 - 50 x 0.05
M3-20 20 x 0.02 10 x 0.01 - 100 x 0.1
M3-50 50 x 0.05 25 x 0.02 - 250 x 0.2
M3-100 100 x 0.1 50 x 0.05 - 500 x 0.5
M3-200 200 x 0.2 100 x 0.1 - 1000 x 1
M3-500 500 x 0.5 250 x 0.2 - 2500 x 2






Dimensions in[mm]

Series 3 force gauge dimensions
Models Thread
M3-012 - M3-100 #10-32 UNF
M3-200 - M3-500 5/16-18 UNC
