Description

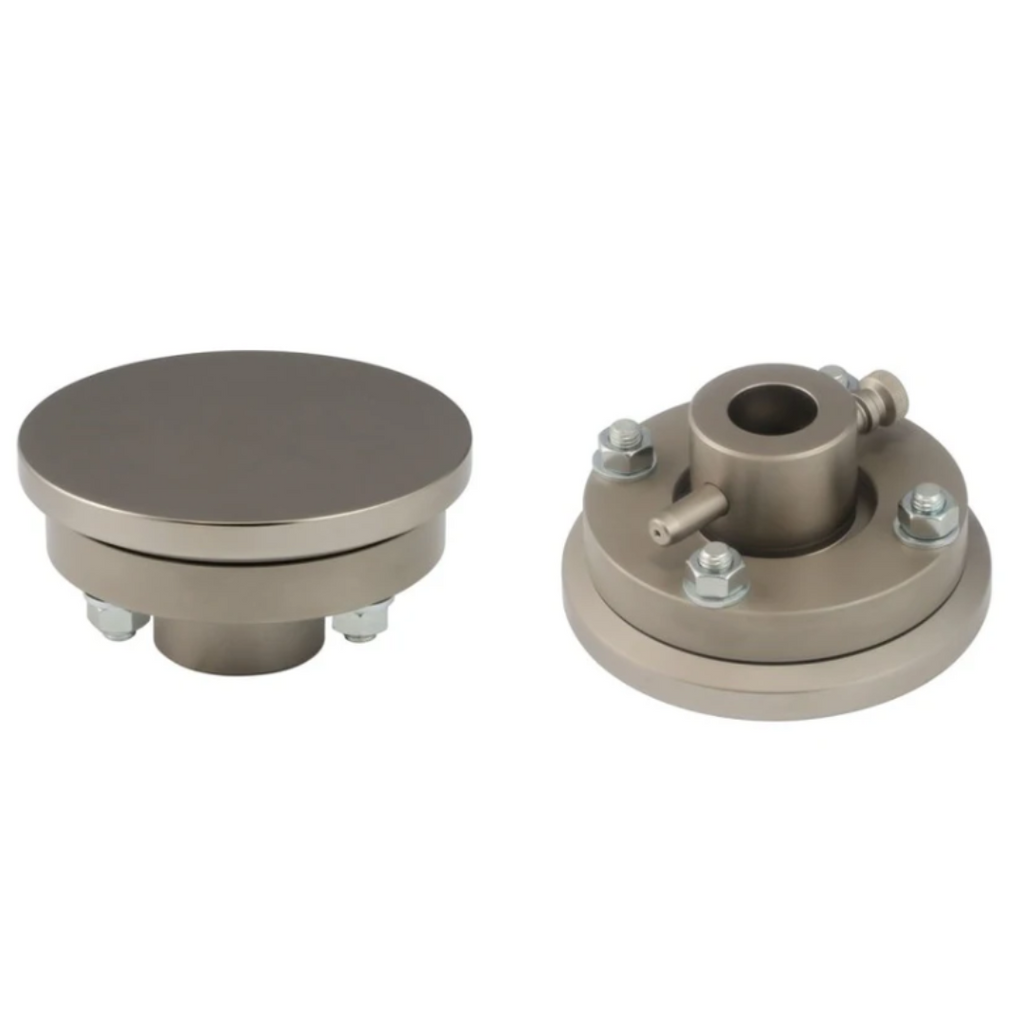

Self-aligning compression plates are designed to adjust ±1.5° angular displacement of the material being tested. This self-aligning compression plates can also be set to a fixed position by tightening the nuts.
Adapters are available to mount platens to almost any brand of test stand, load cell, and force gauge.
Scope of delivery is 1 compression plate.
- Steel platens for testing rubber, plastics, heavy duty springs, building products, composites and ceramics.
- Hardened steel 58 HRC, nickel-plated, -70°C … +350°C
|
Model
|
Diameter [A] | Load Capacity |
Eye End Coupling (B) |
Weight | ||||
| mm | inches | kN | lbF | mm | inches | kg | lbs | |
| SAP96-ST-318 | 96 | 3.78 | 50 | 11,000 | 31.8 | 1.25 | 6.1 | 11.7 |
| SAP116-ST-318 | 116 | 4.56 | 50 | 11,000 | 31.8 | 1.25 | 6.5 | 13.5 |
| SAP156-ST-318 | 156 | 6.14 | 50 | 11,000 | 31.8 | 1.25 | 7.1 | 15.7 |
| SAP196-ST-318 | 196 | 7.72 | 50 | 11,000 | 31.8 | 1.25 | 7.4 | 16.3 |
Eye End Connection Dimensions - mm
