Description
Series JFS force sensors are compatible with Series F test frame models up to 500 lbF (2.2 kN). They measure tension and compression forces.

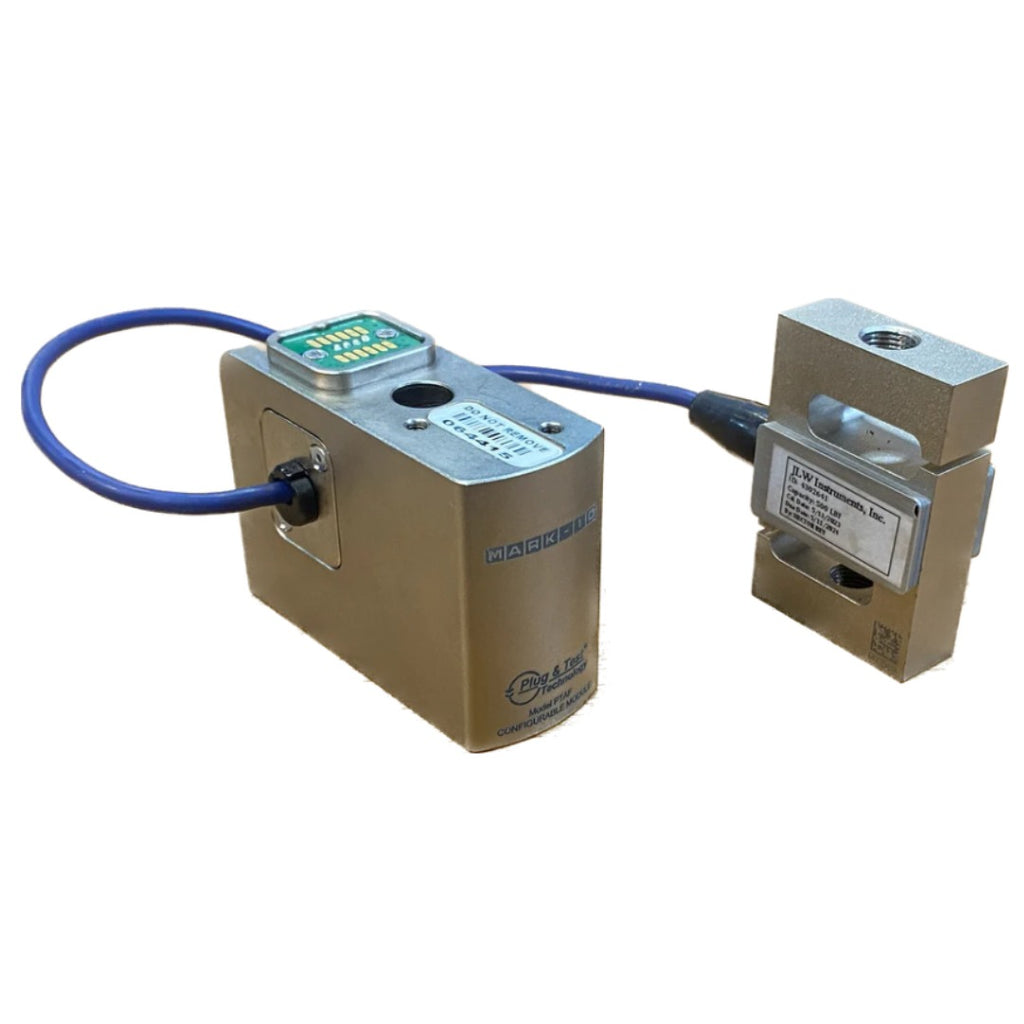

This load cell is built by JLW Instruments using a Mark-10 PTAF Plug & Test® adapter and JSB Load cell. We can ship this sensor fast usually within 2-3 business days.
Ranges are available from 10 to 500 lbF [50 N to 2.5 kN].
Compatible test stands:
- Series F EasyMESUR F105-EM, F305-EM, F505-EM, and F505H-EM
- Series F IntelliMESUR F105-IM(T), F305-IM(T), F505-IM(T), and F505H-IM(T)
Features
- Measure tension and compression force
- Suitable for larger and heavier grips and fixtures
- NIST-traceable certificate of calibration with data is included
- Warranty: 3 years
Specifications
- Accuracy: ± 0.15% of full scale + indicator or test frame
- Safe Overload: 200% of full scale
Capacity x Resolution
| Capacity x Resolution | ||||||
| Model | lbF | ozF | gF | kgF | N | kN |
| JFS-10 | 10 x 0.005 | 160 x 0.1 | 5 x 0.002 | 5000 x 2 | 50 x 0.02 | - |
| JFS-20 | 20 x 0.01 | 320 x 0.2 | 10 x 0.005 | 10000 x 5 | 100 x 0.05 | - |
| JFS-50 | 50 x 0.02 | 800 x 0.5 | 25000 x 10 | 25 x 0.01 | 250 x 0.1 | - |
| JFS-100 | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 50 x 0.02 | 500 x 0.2 | - |
| JFS-200 | 200 x 0.1 | 3200 x 2 | - | 100 x 0.05 | 1000 x 0.5 | 1 x 0.0005 |
| JFS-300 | 300 x 0.2 | 4800 x 5 | - | 150 x 0.1 | 1500 x 1 | 1.5 x 0.001 |
| JFS-500 | 500 x 0.2 | 8000 x 5 | - | 250 x 0.1 | 2500 x 1 | 2.5 x 0.001 |
Dimensions - in [mm]
| Model No. | A | B | THREAD C | D |
| FS06-50 |
0.46
[11.7] |
0.71
[18.0] |
1/4-28 UNF
|
6.00
[152.4] |
| FS06-100 | ||||
| FS06-200 | ||||
| FS06-300 |
0.9
[22.6] |
1.1
[27.9] |
1/2-20 UNF
|
|
| FS06-500 |
