Mark-10 Series F IntelliMESUR Advanced UTM (100, 300 & 500 lbF)

IntelliMESUR
Mark-10 SKU: F105-IM

Choose a model: F105-IM 100 lbF Test frame with software (no touchscreen)
Price:
Sale price$9,063.00 USD Regular price$9,540.00 USD

The price indicated does not factor in the load cell, grips, or other optional accessories.

In Stock.

{formbuilder:56981}

Do you already have this equipment and need it calibrated?

REQUEST CALIBRATON

Description

Engineered for Precision. Built for Versatility.

The Series F family of force testers delivers exceptional performance in both tension and compression testing, with robust capacities up to 500 lbF (2.2 kN). Whether you prefer a vertical or horizontal setup, these testers can be adapted seamlessly to your needs, offering a wide range of interchangeable force sensors, grips, and fixtures to handle virtually any testing requirement.

Effortlessly set up, run, and analyze tests with IntelliMESUR® software, from simple routines to complex, multi-step sequences, IntelliMESUR® empowers users with intuitive control—choose a tablet control panel or run it on your own Windows device.

Take your material analysis further with the optional Materials Testing Calculations Module, unlocking key insights with automated calculations such as tensile strength, Young’s modulus, yield point, and more—all at your fingertips.

Need Coefficient of Friction (COF) measurements? An optional module makes it easy to expand your capabilities.

From R&D labs to production floors, the Series F testers are your complete solution for force measurement.

Looking for higher force capacities? Explore our 750 lbf and 1500 lbf models—part of the same trusted Series F IntelliMESUR line.

Why buy from JLW Instruments?

We do more than sell—we calibrate, install, train, and support. Get expert advice, precision setup, and responsive service from a trusted partner in force measurement.



Features
  • Factory compensation of test frames and force sensors ensure position accuracy of ±0.002 in / 0.05 mm under any load, at any position.
  • Deflection compensation utility can be used to compensate for deflection within the grips and attachments. The deflection offset file can be associated with the test setup file.
  • Collects load and travel data at up to 1,000 Hz, and allows up to 4 million data points per run.
  • Save or export data automatically or manually. Save individual runs and results to a USB drive or file location of your choice.
  • Manual control can be used tor running a quick test without having to create a test profile.
  • Control user access with three different permission levels.
Specifications



F105 F305 F505 F505H
Load capacity*: 100 lbF
[0.5 kN]
300 lbF
[1.5 kN]
500 lbF
[2.2 kN]
Maximum travel: 18.0 in
[457 mm]
Speed range: 0.02 – 45 in/min
[0.5 – 1,100 mm/min]
Load accuracy
(% of full scale)
Test frame: ±0.1%
Force sensor alone: Series FS05: ±0.1% | Series R07: ±0.15%
Load sampling rate: 20,000 Hz
Data acquisition rate: 1,000 Hz
Speed accuracy: ±0.2% of setting, virtually no variation with load
Distance accuracy: ±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution: 0.0005 in [0.01 mm]
Limit switch repeatability: ±0.001 in [0.03 mm]
Power: Universal input 100-240 VAC, 50/60 Hz, 300W
Fuse type: 1.2 A, 250V, 3AG, SLO BLO
Weight (test frame only): 60 lb
[27 kg]
70 lb
[32 kg]
Shipping weight: 75 lb
[34 kg]
85 lb
[39 kg]
Environmental conditions: Indoor use only
Up to 6,500 ft [2,000 m] above sea level
Temperature range: 40 – 95°F [5 – 35°C]
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ±10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
Conformance: CE
Warranty: 3 years [see individual statement for further details]

 * Load capacity is reduced at higher speeds, as follows:
– F305: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
– F505 / F505H: limited to 300 lbF [1.5 kN] above 24 in [610 mm]/min

IntelliMESUR Software

Favorites

From IntelliMESUR®’s home screen, quickly access up to 10 favorite tests. Associate an image with each favorite for easy identification.

Results View

The results view displays user-selected results for each run. Statistics may be applied to selected results.

Graph View

The Graph view plots force vs. distance or force vs. time. Overlay up to 10 runs for visual comparisons.

Multi-Step Tests

Create a custom sequence of motion control and data collection actions with multi-step testing.

Manual Control

Run a quick test or manually adjust crosshead for setting up a sample.

Included Items

Test Frame with Touchscreen Controller

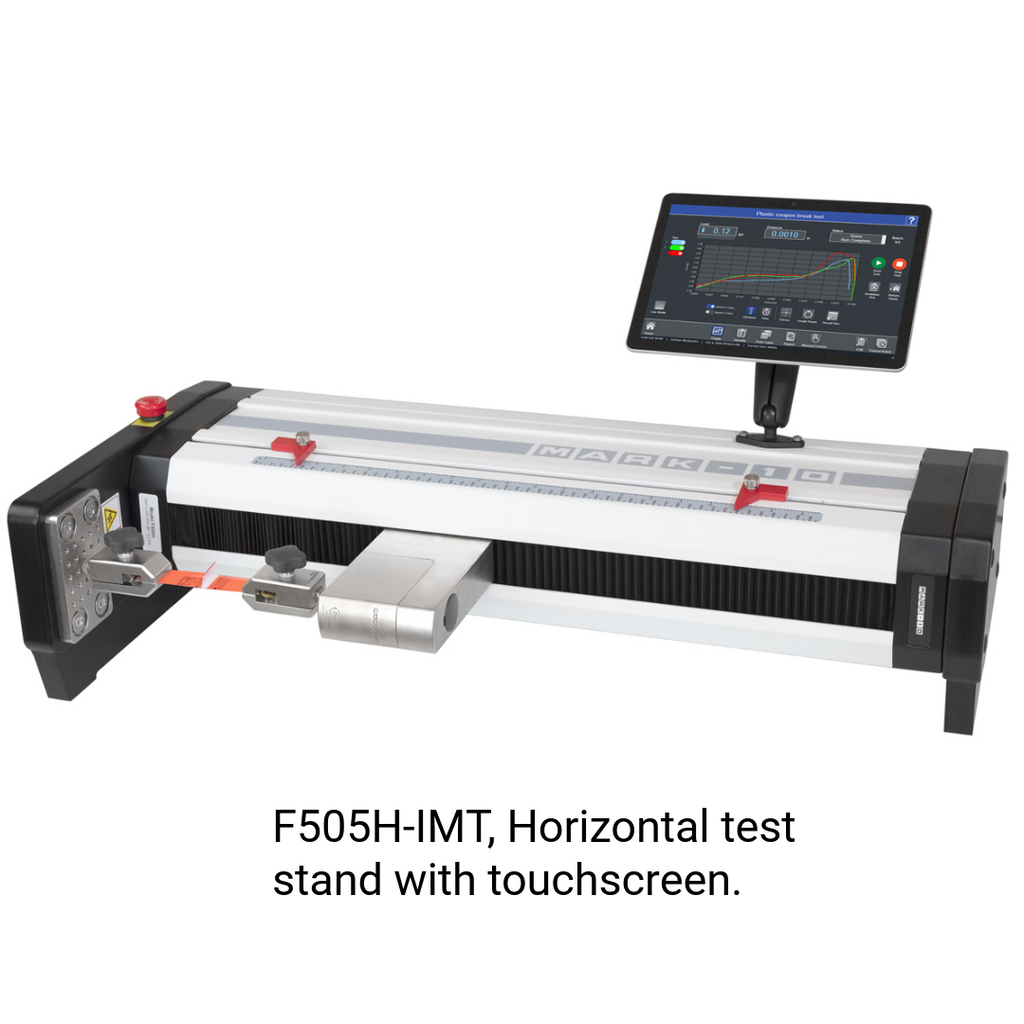

The F105-IMT, F305-IMT, F505-IMT, and F505H-IMT advanced test frames are shipped as shown at left, and include the following accessories:

(1) Control panel, mounting bracket, and hardware
(1) Mounting bracket, column end (F505H only)
(1) USB cable
(1) #10-32M medium hook
(1) 5/16-18M large hook
(1) #10-32F 2” diameter compression plate
(1) #10-32 F/F coupler
(1) Adapter, 5/16-18M to #10-32F
(1) Set screw, #10-32 x 3/4”
(2) Hex nut, #10-32
(1) Power cord
(1) Allen wrench set

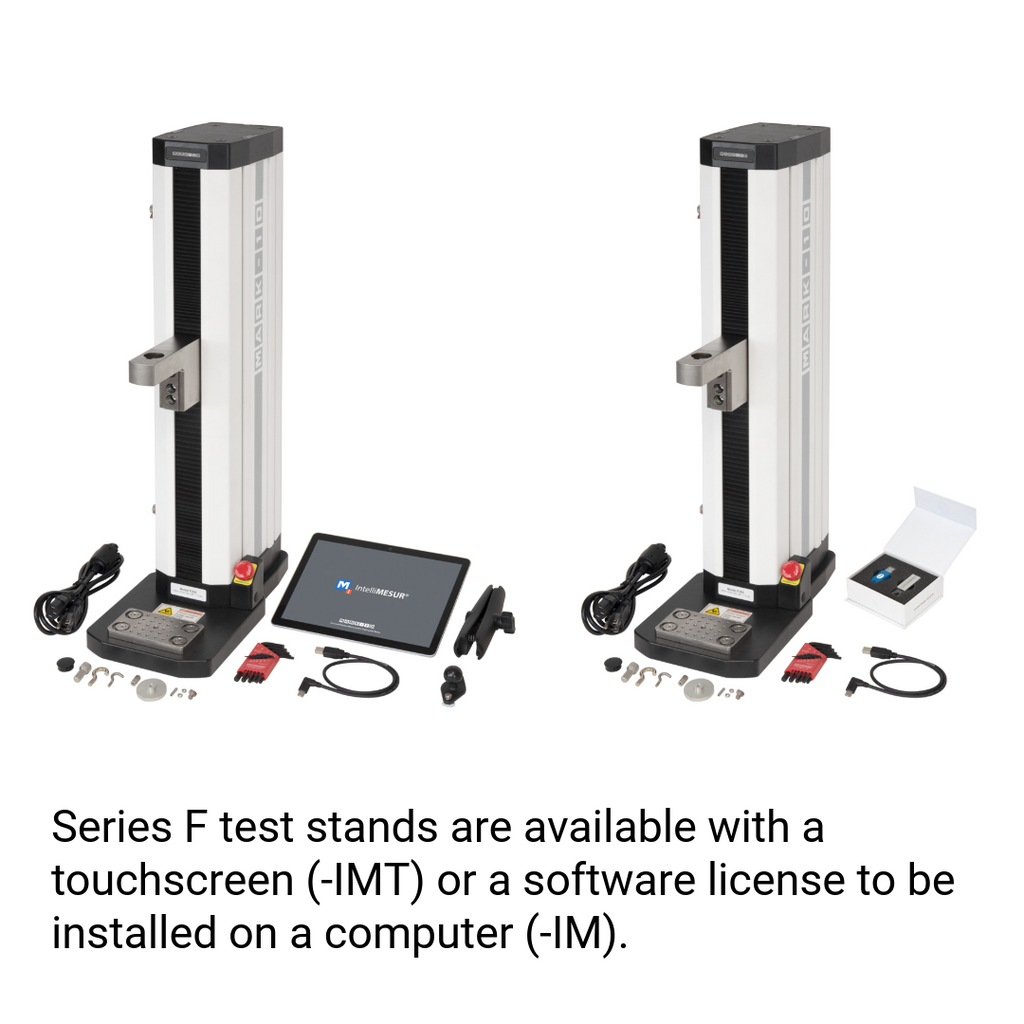

The F105-IM, F305-IM, F505-IM, and F505H-IM advanced test frames

Test Frame with Software License for Installing on a PC

The F105-IM, F305-IM, F505-IM, and F505H-IM advanced test frames are shipped as shown at left, and include the following accessories:

(1) Mounting bracket, column end (F505H only)
(1) USB flash drive containing software installation files
(1) USB dongle
(1) USB cable
(1) #10-32M medium hook
(1) 5/16-18M large hook
(1) #10-32F 2” diameter compression plate
(1) #10-32 F/F coupler
(1) Adapter, 5/16-18M to #10-32F
(1) Set screw, #10-32 x 3/4”
(2) Hex nut, #10-32
(1) Power cord
(1) Allen wrench set

This version does not include the touchscreen controller.

Optional Functions

The materials testing graph view displays Young's modulus, yield strength, offset yield strength, ultimate strength, and rupture.

Material Testing Calculations Module

(P/N: IMF002)

Characterize and analyze the behavior of materials, components, and assemblies with a suite of materials testing calculations, including:

  • Stress and strain
  • Tensile strength
  • Shear strength
  • Young’s modulus (auto-calculate or manually draw)
  • Yield point
  • Offset yield (user-specified percentage)
  • Rupture
  • Percent elongation
  • Flexural modulus
  • Force per unit width
  • Wide variety of results based on the above calculations, such as stress at maximum strain, strain at rupture, etc.

IntelliMESUR® formats calculations into a Results table, with corresponding statistics for multiple runs. View a stress-strain curve with annotated calculations. Display up to 10 runs simultaneously for visual comparison.

Coefficient of Friction (COF) Testing Module

Coefficient of Friction (COF) Testing Module

(P/N: IMF001)

Measure static and dynamic COF for a wide range of materials, per ASTM D1894 and other relevant standards. Specify the sled weight and configure data collection start and stop triggers. This module can be ordered upfront or enabled in the field via activation code.

Dimensions Vertical Test Frame- in [mm]

Dimensions for F105, F305, F505 test stands

Dimensions Horizontal Test Frame- in [mm]

F505H Dimensions
