Mark-10 F105-EM, F305-EM, F505-EM, Series F, EasyMESUR Motorized Test Stands

Mark-10 SKU: F105-EM

Choose a model: F105-EM (100 lbF Capacity)
Price:
Sale price$3,135.00 Regular price$3,300.00

{formbuilder:56981}

Description

Series F test frames with EasyMESUR® perform a wide range of tension and compression tests, including break testing, cycling, limit testing to a load or distance, load holding, average force testing, and more.

Set up and run tests, export results, and create a report via the integrated, easy-to-use touchscreen interface. EasyMESUR® force testers measure and analyze data with available graphing and reporting capabilities.

For unique needs, run the tester from a PC with your own custom application utilizing EasyMESUR®’s serial command library.

Engineered around a modular function platform, the EasyMESUR® run screen can be arranged with large, simple controls – or configured for more advanced applications with a selection of optional functions, including distance measurement, graphing, cycling, and more.

Generous travel, clearance, and depth dimensions accommodate samples of various shapes and properties. Modular mechanical design accommodates single- and double-column extensions for oversized specimens.

Specifications

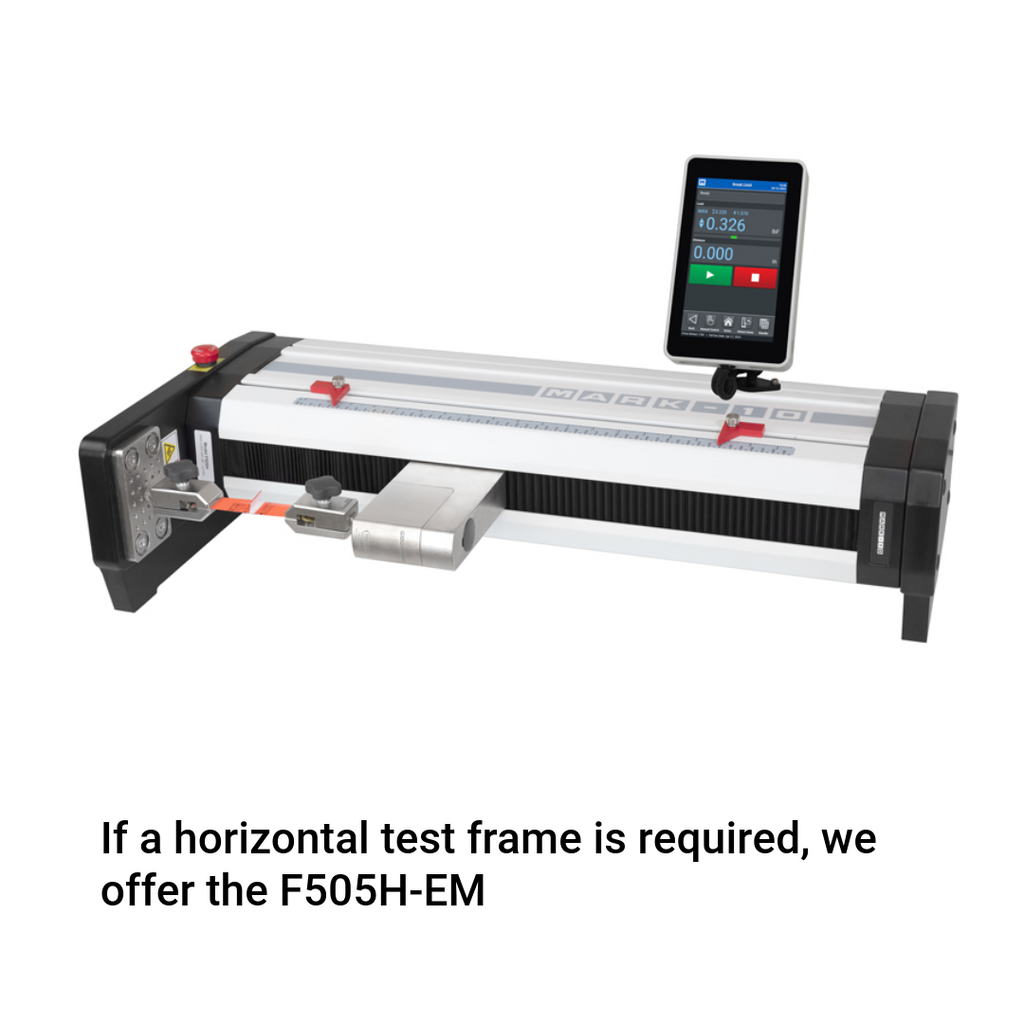

F105-EM F305-EM F505-EM F505H-EM
Load capacity*: 100 lbF
[0.5 kN]
300 lbF
[1.3 kN]
500 lbF
[2.2 kN]
Maximum travel: 18.0 in
[457 mm]
Standard speed range: 0.5 – 13 in/min
[13 – 330 mm/min]
Optional speed range: 0.02 – 45 in/min
[0.5 – 1,100 mm/min]
Load accuracy
(% of full scale)
Test frame: ±0.1%
Force sensor: Series FS05: ±0.1% | Series FS06: ±0.15% | Series R07: ±0.15%
Load sampling rate: 5,000 Hz
Data acquisition rate: 100 Hz
Speed accuracy: ±0.2% of setting, virtually no variation with load
Position accuracy: ±0.006 in [0.15 mm], at any load or position
Distance resolution: 0.001 in [0.02 mm]
Limit switch repeatability: ±0.001 in [0.03 mm]
Power: Universal input 100-240 VAC, 50/60 Hz, 120W
Fuse type: 1.2 A, 250V, 3AG, SLO BLO
Weight (test frame only): 60 lb
[27 kg]
70 lb
[32 kg]
Shipping weight: 75 lb
[34 kg]
85 lb
[39 kg]
Environmental conditions: Indoor use only
Up to 6,500 ft [2,000 m] above sea level
Temperature range: 40 - 95°F [5 - 35°C]
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ±10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
Conformance: CE, UKCA
Warranty: 3 years [see individual statement for further details]



 * Load capacity is reduced at higher speeds, as follows:

– F305: limited to 200 lbF [1 kN] above 24 in [610 mm]/min

– F505 / F505H: limited to 300 lbF [1.5 kN] above 24 in [610 mm]/min

EasyMESUR Software

The EasyMESUR® integrated control panel centralizes test setup, test frame control, and data collection into one convenient place. Use the 7” touchscreen to create and run a wide range of tests, including:

  • Test to a load
  • Test to a sample break
  • Test to a distance
  • Load holding
  • Cycle testing
  • Average force testing

View data in graphical format or results tables. Save or export data as needed, or generate a report.

Standard View

View large-format load and distance values, with pass/fail status.

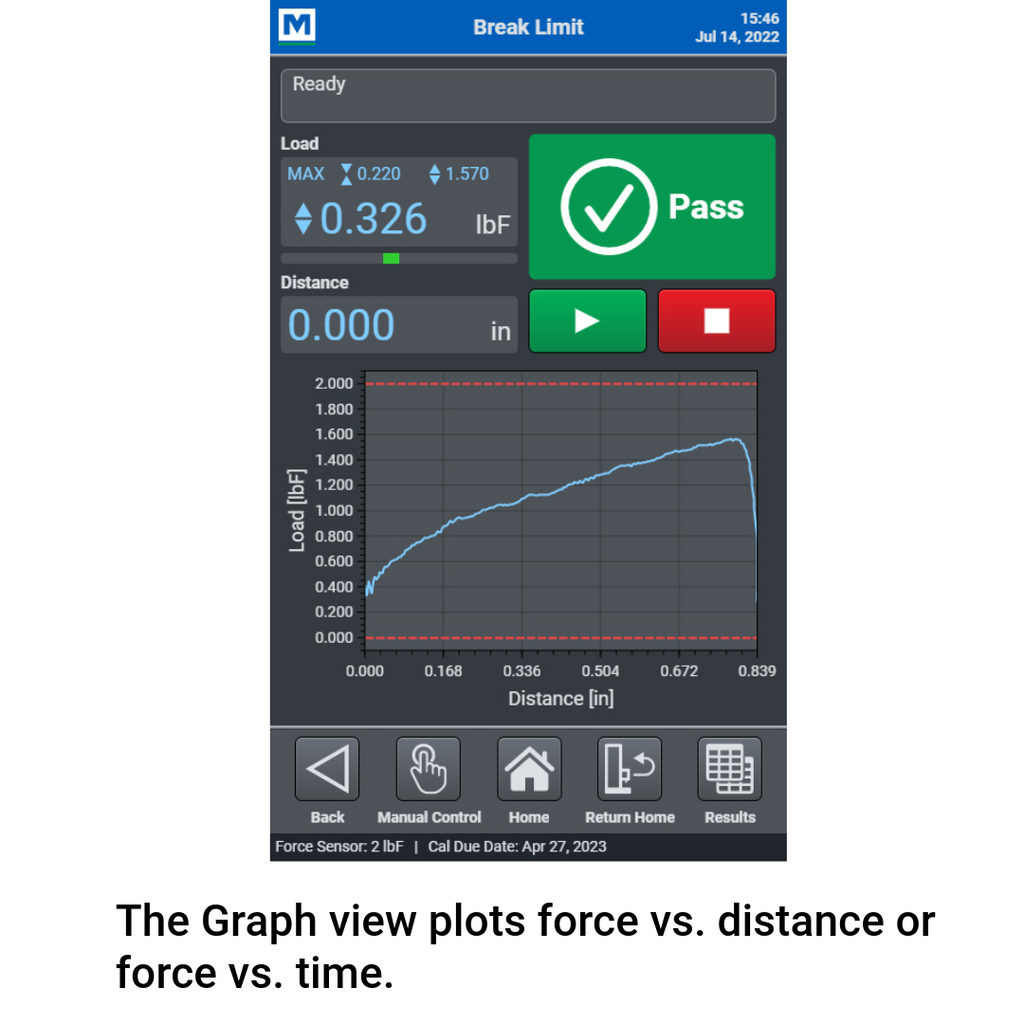

Graph View

View a graph of load vs. distance or time, with pass/fail status.

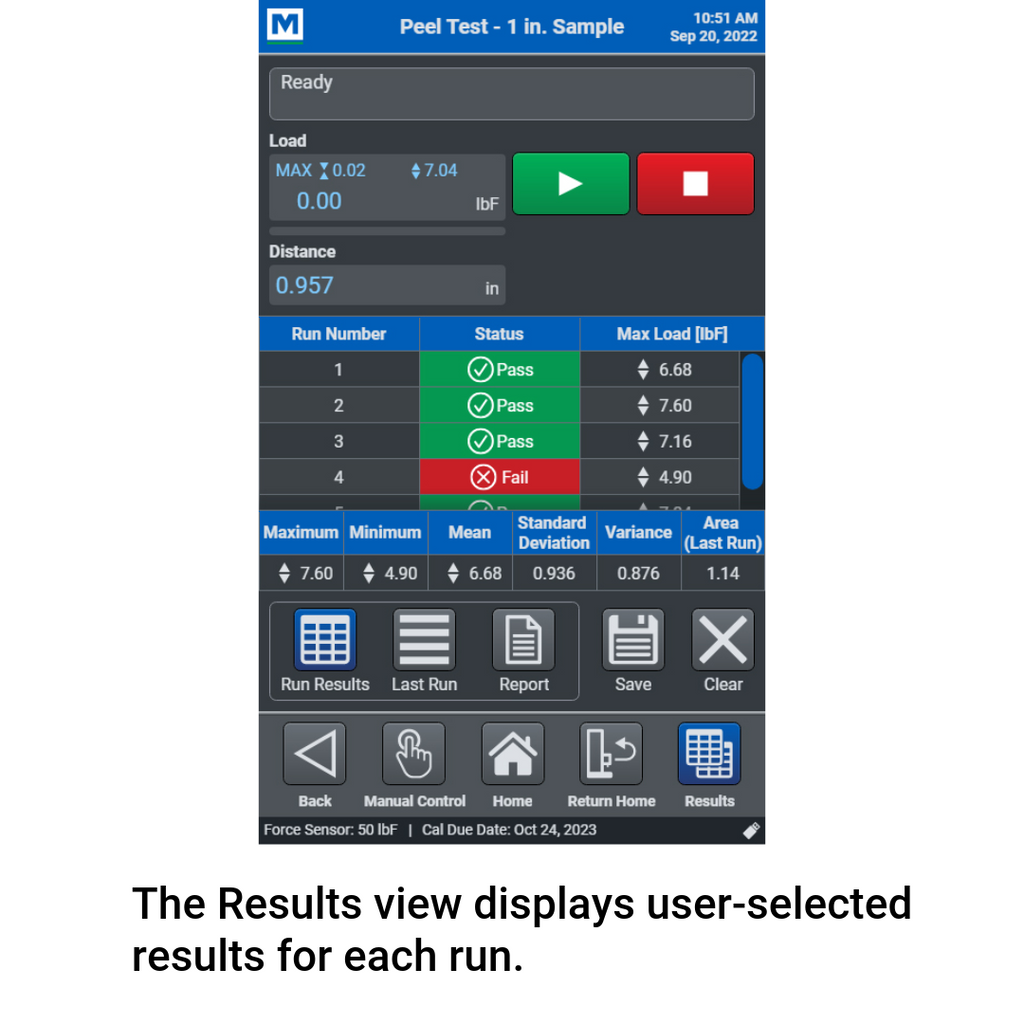

Results View

View results for each run, with corresponding statistics for the results.

Test setup is easy as 1-2-3

Select a test type, and EasyMESUR® will guide you through the setup.



Icons showing the test types to choose from in the EasyMESUR software wizard. These include Load limit, distance limit, break limit, load hold,  cycle and averaging.





1. Basic Test Settings
  • Test direction
  • Speed
  • Test-specific parameters
  • Data save preferences
2. Results Settings
  • Select results
  • Enable and configure pass/fail limits
  • Set data collection rate
  • Set auto-return to home
3. Graph Settings
  • Single-point vs. continuous graphing
  • Set load vs. time or vs. distance
  • Graphing start threshold
Applications

These are a few applications this test stand can be used for.

Tensile Testing

An F305-EM Test Frame shown configured for a tensile test with two G1061 Wedge Grips.

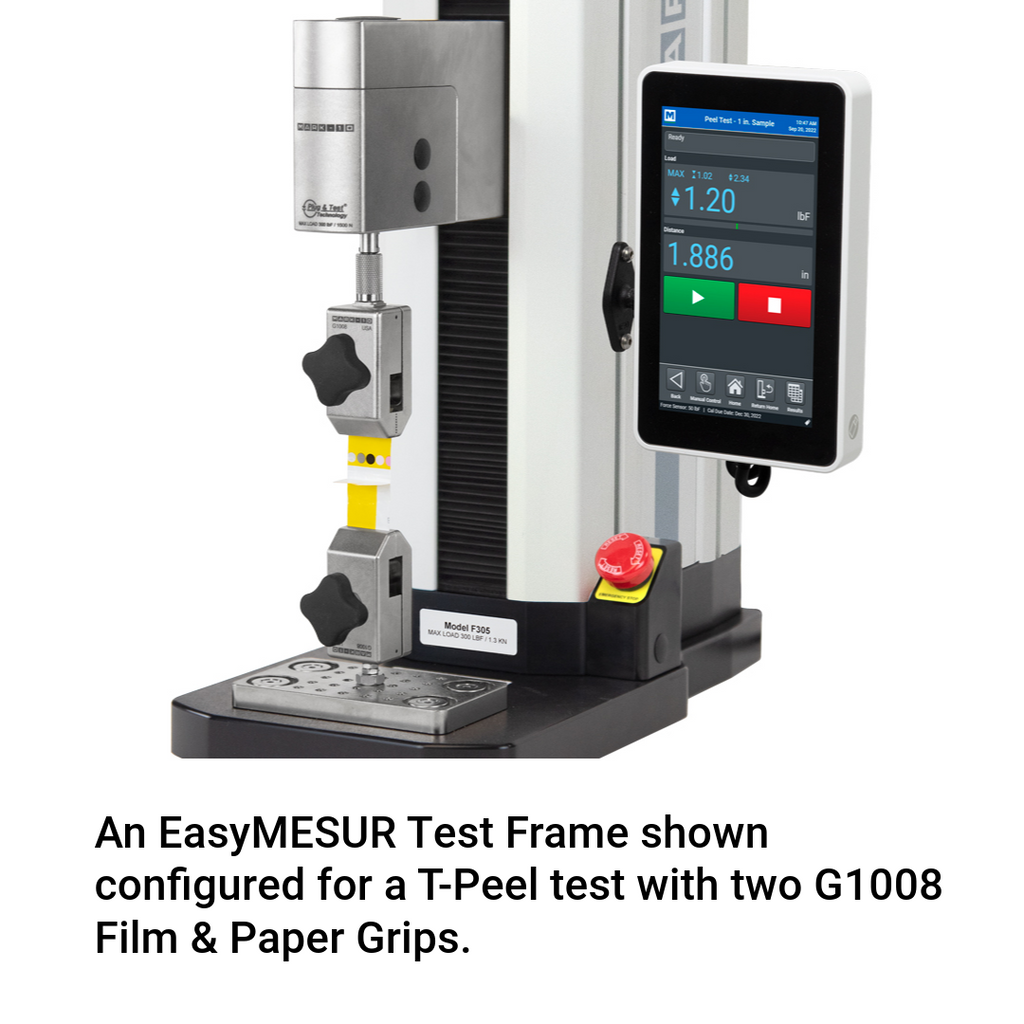

T-Peel Test on Packaging Seal

An F305-EM Test Frame shown configured for a vertical peel test with two G1008 Film & Paper Grips.

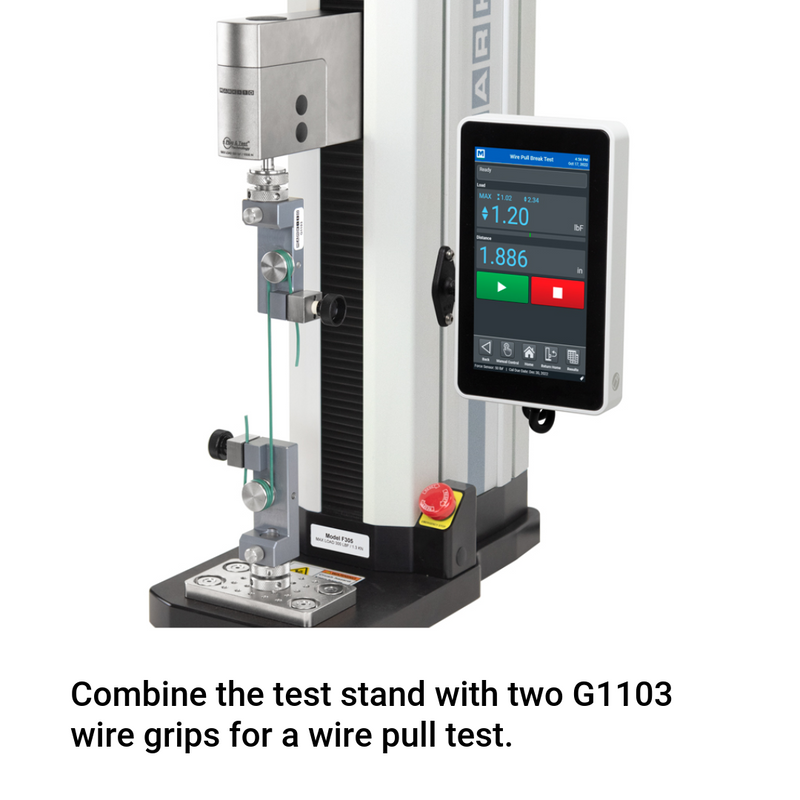

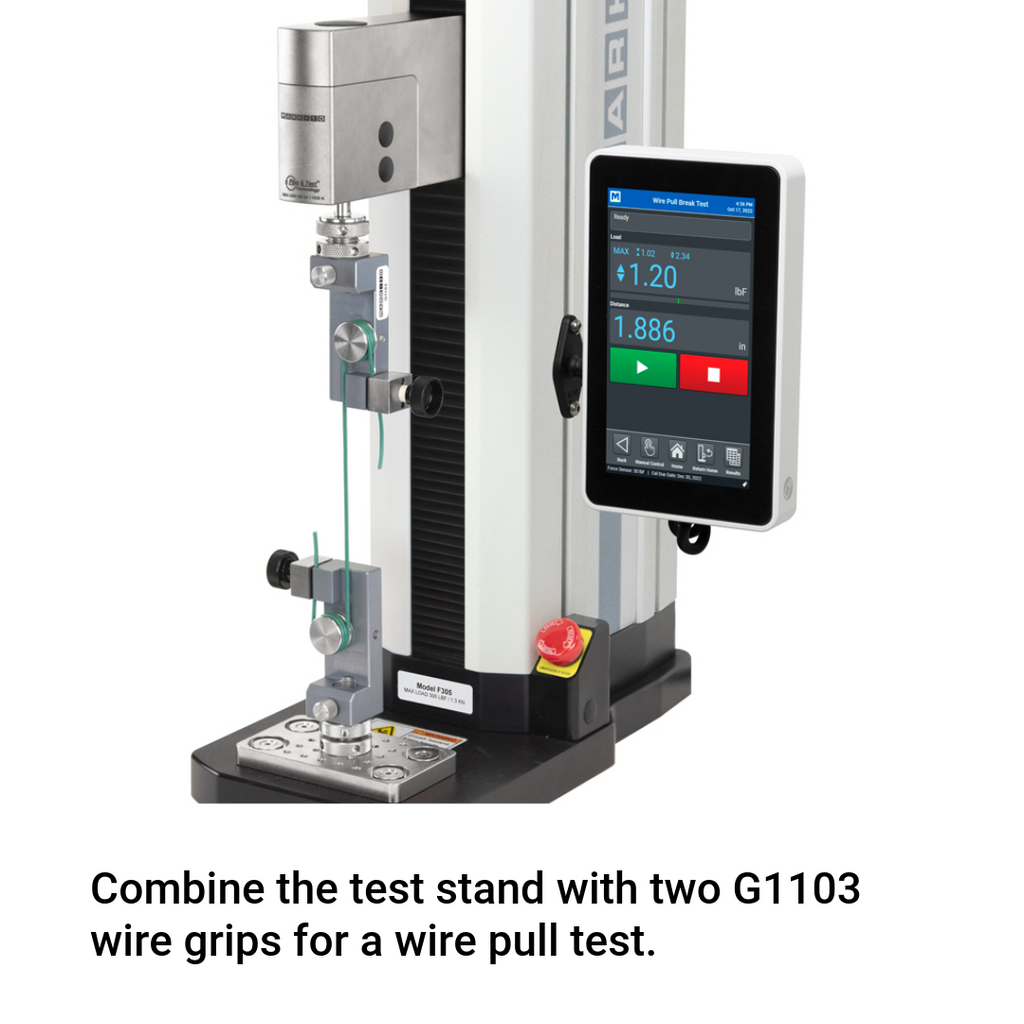

Wire Pull Testing

An F305-EM Test Frame is shown configured for a vertical wire pull test with two G1103 Wire / Rope Grips.

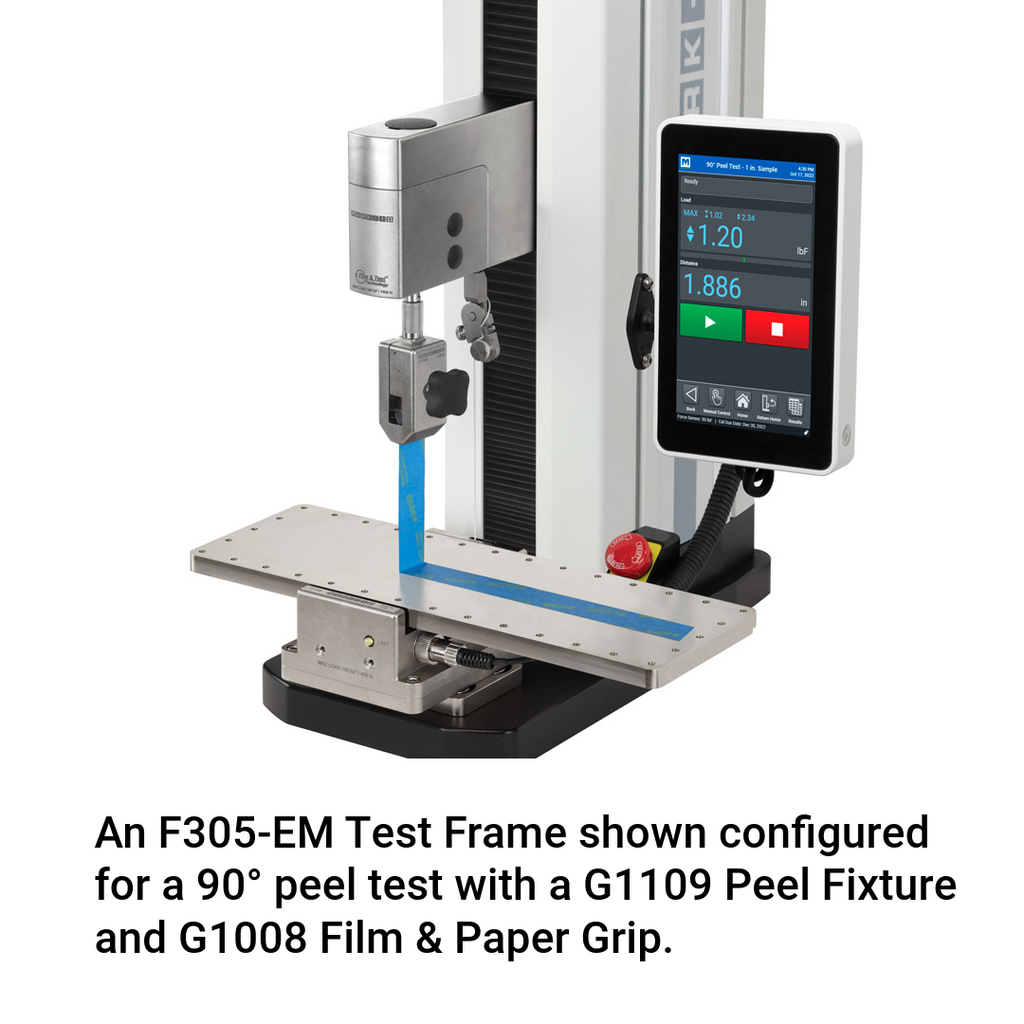

90 Degree Peel Test

An F305-EM Test Frame shown configured for a 90° peel test with a G1109 Peel Fixture and G1008 Film & Paper Grip.

Accessories

Series FS05 Force Sensors are compatible with F105, F305, F505, and F505H Series F Test Frames. To use this sensor on the higher capacity Series F (F755, F755S, F1505, and F1505S) test stands Adapter AC1083 is required .

Sensor ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN].

Rugged s-beam sensor for bulkier grips and fixtures. Capacities from 50 to 500 lbF [250 to 2,500 N].

A wide range of tension, compression, peel and other grips and fixtures.

6 ft. cable used to connect the EasyMESUR control panel to a PC for file transfer.

Provides pinch and sample debris protection for the operator. Includes an electrical interlock, preventing operation while the door is open.

Increase the vertical clearance for longer samples (travel distance remains the same). Select from 6, 12 and 24 inch heights. Multiple extensions may be stacked in line.

Extensions may be factory-installed at time of test frame order or field-installed, except for Model F505H. F505H (horizontal stand), factory installation required.

Accommodate up to a 20 in. [508 mm] wide sample, or ø21.5 in [ø546 mm] round sample. Select from 6, 12 and 24 in [150, 300, and 600 mm] heights. The base contains rows of T-slots for fixture mounting.

Not compatible with Mark-10 shields.

Optional Functions

  • Any of the below functions may be purchased at time of order or may be enabled in the field at a later date through a code activation process.
  • A complete options package (EMP-COMP-1) is also available, including all of the below features at a discounted price.
  • The test frames are shipped in Evaluation Mode, during which time all available functions are temporarily enabled for 160 hours of operation.

Individual Functions

Function Part No. Description Co-requirements
Distance Measurement EMF001-1 Measure distance, with the ability to zero the reading. -
Distance Limits EMF002-1 Stop at user-defined upper and lower distance limits. - Distance Measurement (EMF001-1)
Preload EMF003-1 Zero the travel position automatically at a user-defined preload value. - Distance Measurement (EMF001-1)
High Speed Extension EMF004-1 Extend the high end of the speed range, dependent upon test frame model. -
Low Speed Extension EMF005-1 Extend the low end of the speed range, dependent upon test frame model. -
Cycling EMF006-1 Set up to 100,000 cycles, with user-defined upper and lower dwell times. Cycle between any combination of limit switches, travel limits, breaks, and load limits. - If cycling to distance limits, add Distance Measurement (EMF001-1) and Distance Limits (EMF002-1)
- If cycling to a break point, add Break Detection (EMF007-1)
Break Detection EMF007-1 Stop when a user-defined drop in force occurs. -
Load Holding EMF008-1 Stop at, and maintain, a user-defined load for a specified period of time. -
FollowMe® EMF009-1 Push and pull on the sensor’s loading shaft to jog the crosshead up and down, ideal for manual positioning prior to a test. Speed increases with applied force. -
Graphing & Reporting EMF010-1 Graph load vs. time or distance, view statistics, and generate a report, including graph, results, run data, and other information. - If graphing load vs. distance, add Distance Measurement (EMF001-1)
PC Control EMF011-1 Control the test frame with your own application using via your own application with a library of motion control and data collection serial commands. While PC control is active, the control panel becomes a pendant, limited to basic, manual controls. - AC1107 cable, test frame to PC



Optional Function Packages

Package Part No. Includes
Distance Measurement EMP001-1 Distance Measurement (EMF001-1)
Distance Limits (EMF002-1)
Preload (EMF003-1)
Speed Extension EMP002-1 High Speed Extension (EMF004-1)
Low Speed Extension (EMF005-1)
Advanced Functionality EMP003-1 Cycling (EMF006-1)
Break Detection (EMF007-1)
Load Holding (EMF008-1)
FollowMe® (EMF009-1)
Complete Options EMP-COMP-1 All functions

Included Items

Items included with the F305-EM

The F105-EM, F305-EM, F505-EM, and F505H-EM advanced test frames are shipped as shown at left, and includes the following accessories:

(1) Control panel, mounting bracket, and hardware
(1) #10-32M medium hook
(1) 5/16-18M large hook
(1) #10-32F 2” diameter compression plate
(1) #10-32 M/F 2” extension rod
(1) #10-32 F/F coupler
(1) Adapter, 5/16-18M to #10-32F
(1) Set screw, #10-32 x 3/4”
(2) Hex nut, #10-32
(1) Power cord
(1) Allen wrench set

Dimensions - in[mm]

Dimensional drawing for F105-EM, F305-EM, F505-EM
