Description

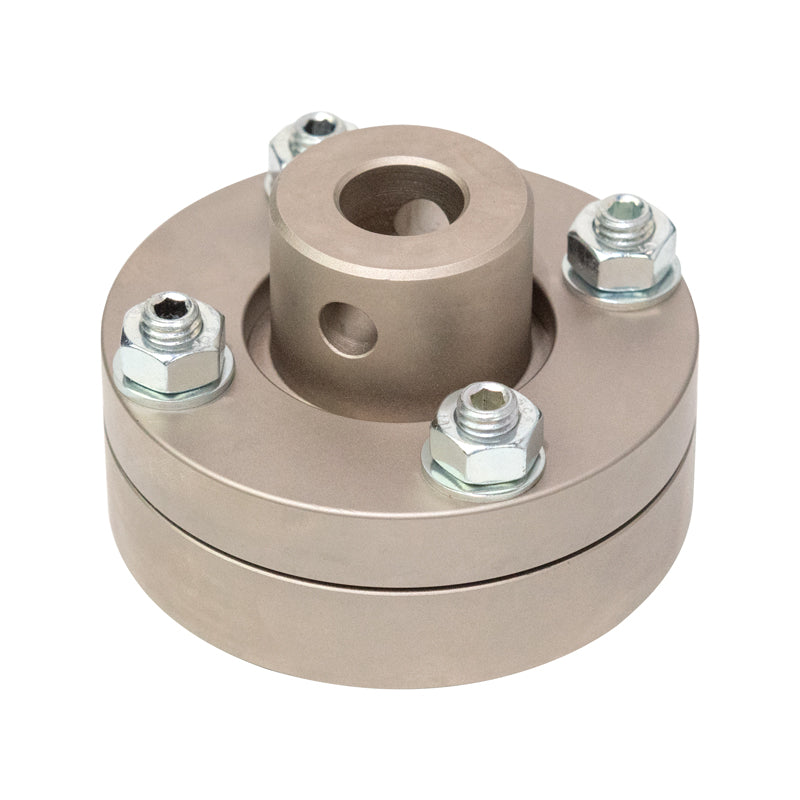

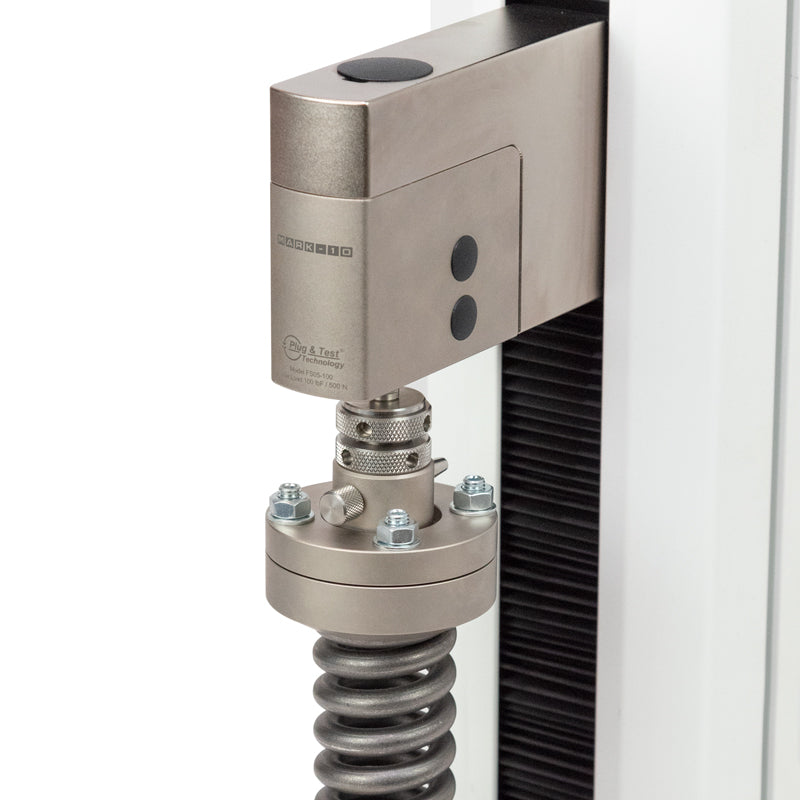

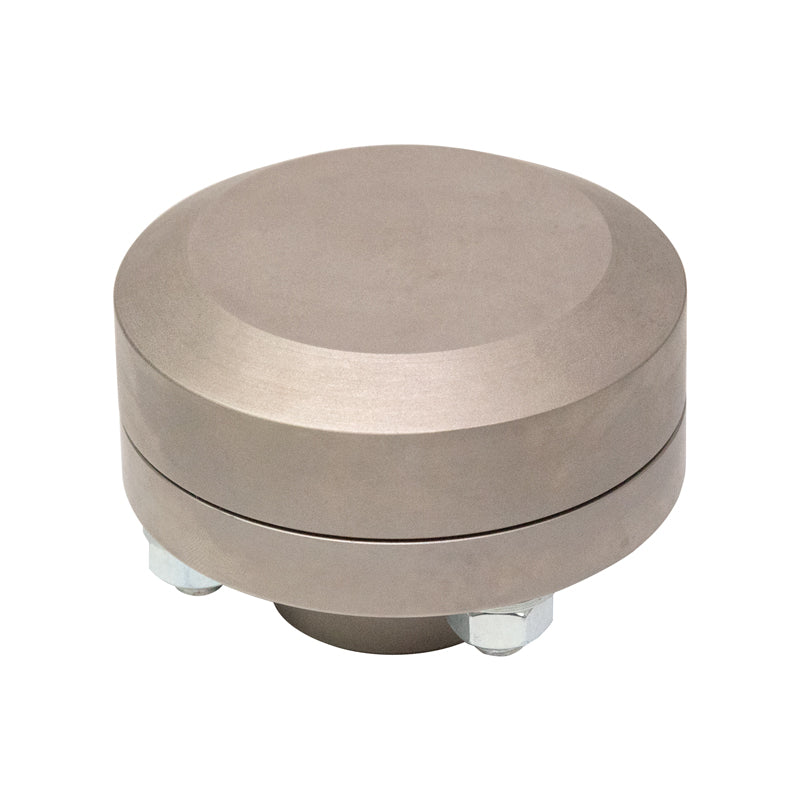

Maintain precise alignment and consistent load distribution with this self-aligning compression plate. Automatically compensate for sample angle variations, ensuring perfect parallelism and complete contact; essential for testing low-deflection springs and high spring-rate materials.
This compression plate features a 5/8" integrated eye end, the standard eye end size for Lloyd Instruments, Chatillon, and Mark-10 products. Furthermore, Adapters are available to mount these compression plates on any brand of test stand, load cell, or force gauge.
Features
- Self-aligning compression plate ensures that load is applied in-line with the sample
- Integrated eye end mounting
- Sold as a single compression plate
Specifications
|
Capacity lbF [kN] |
Weight lb [kg] |
Material | Angle* | HS Code | ECCN |
Country of Origin
|
| 2,000 [9] | 2.80 [1.27] |
Steel 58 HRC, nickel-plated | ±1.5° | 9024800000 | EAR99 | USA |
Dimensions - in[mm]
