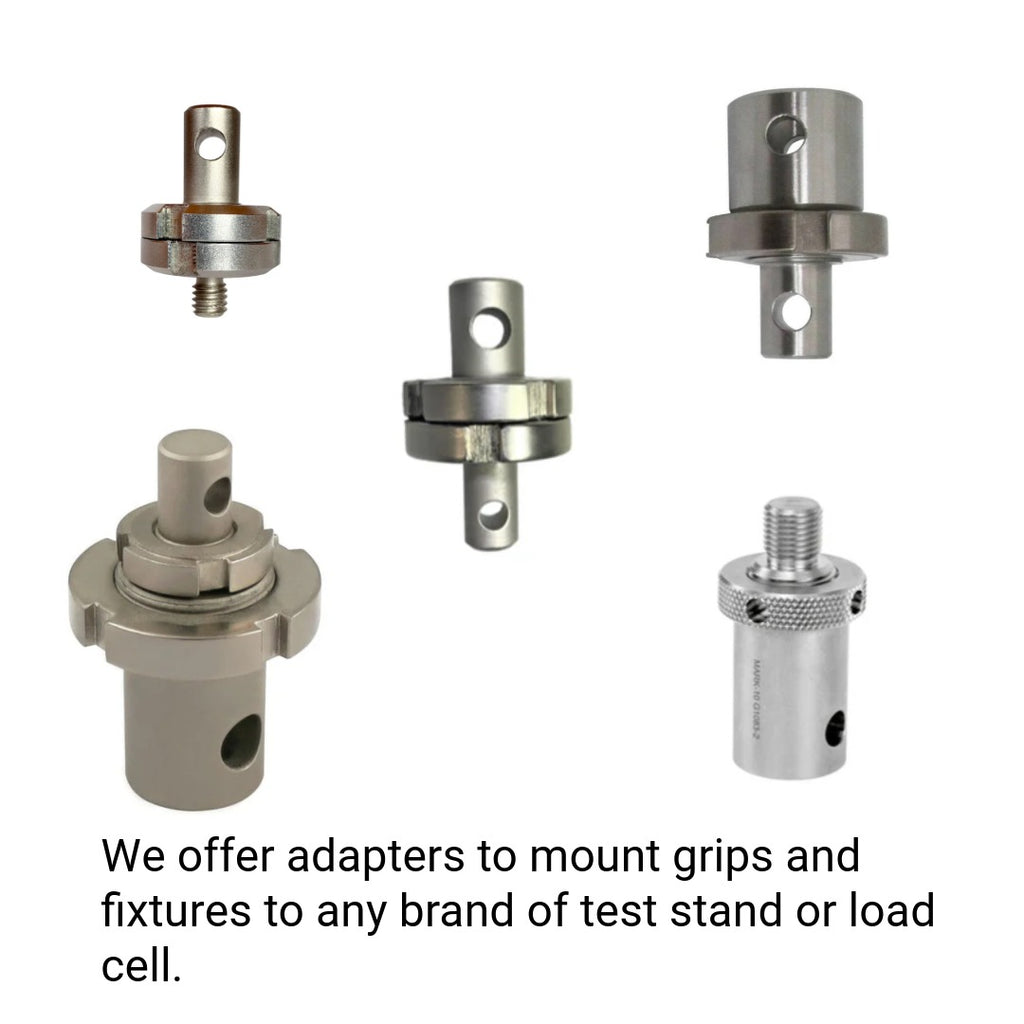

If the adapter you need isn't listed above, we offer a variety of additional adapter options.
Please call if you need help identifying the correct adapter, 312-666-0595.
Description
A pneumatic pincher grip is a special gripping device used in tensile testing machines to securely hold small test specimens during mechanical testing.
This grip is designed to mount on a standard 5/8" eye end. This connection type is commonly used on Lloyd Instruments, Chatillon, and Mark-10 equipment. We also sell these brands of test stands, load cells, and force gauges to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
Features and Specifications
- Tensile force: 1 kN
- Clamping force: 2 kN (horizontal) at 7 bar
- Opening: 0-6 mm
- Jaws: Pyramid (serrated) jaws
- Clamping Surface: 5x5 mm
- Material: Anodized aluminum
- Temperature range: -10 … +70°C
- Grip weight: 0.8 kg
Included Items
- (1) Pneumatic pincher grip with pyramid jaw faces.
- (1) Foot pedal control with fittings.
Dimensions - mm
