Description

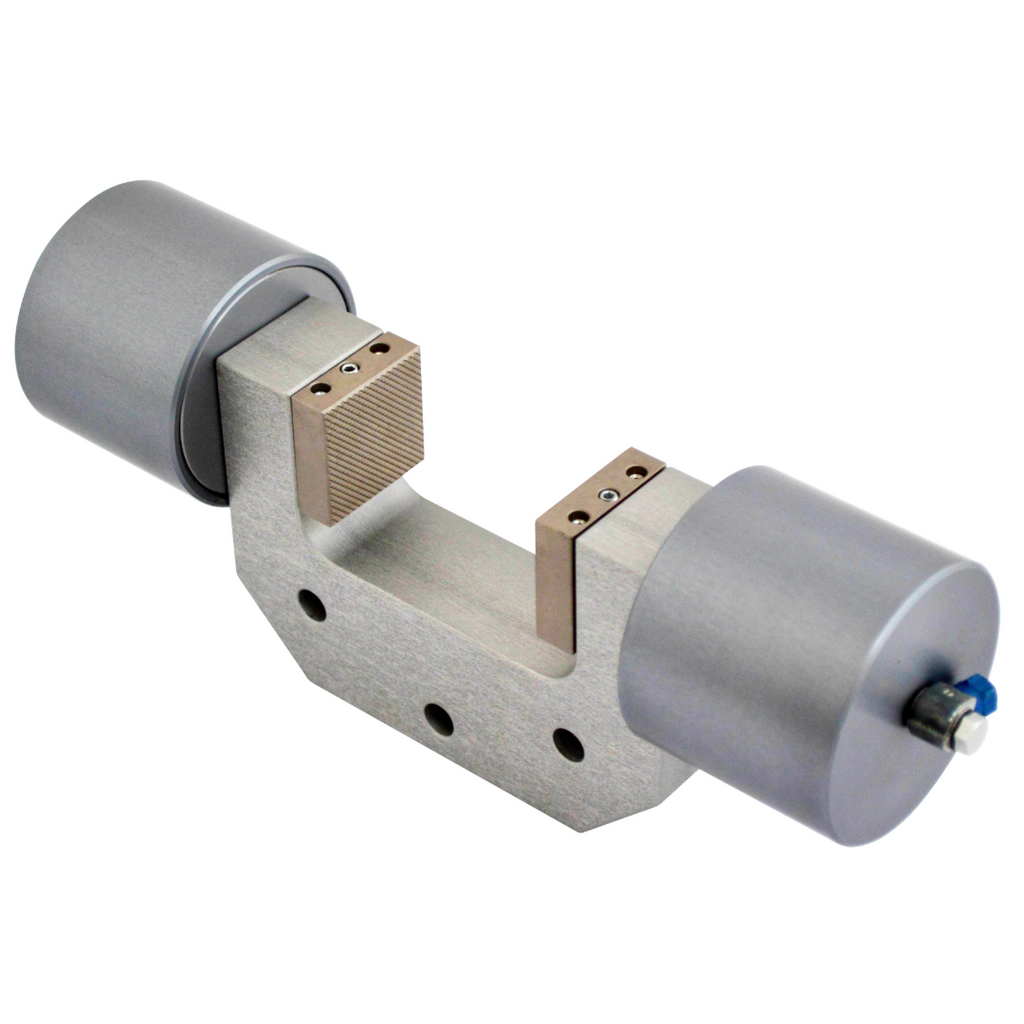

These pneumatic vice grips have are pneumatic actuated by a micro switch with an opening of 50 mm.
They are available with your choice of jaws (pyramid/crosscut, or rubber). A choice of 30 mm, 50 mm, 80 mm and 100 mm jaw widths are available for each jaw type (except V-Jaws).
Fits standard 5/8" eye ends; ready to use with Lloyd Instruments, Chatillon, and Mark-10 systems. Need the full setup? We carry compatible test systems, and load cells. Using a different brand? Our adapters make it easy to connect these grips to virtually any testing system.
Features and Specifications
- Force capacity: 1 kN [200 lbF]
- Connection: 15.9 mm (5/8") female eye end - Adapters for other sizes
- Grip body: Anodized aluminum
- Jaws: Steel, nickel-plated
- Maximum air pressure: 7 bar (100 psi)
| Jaw Type | Description | Size (H x W) |
Opening | Weight of 1 grip with pair of jaws | ||
|
Pyramid |
 |
Pyramids 1.2x45° |
30 x 30 |
0-50 mm |
1.1 kg | 2.5 lbs |
| 30 x 50 | 1.2 kg | 2.7 lbs | ||||
| 30 x 80 | 1.3 kg | 2.9 lbs | ||||
| 30 x 100 | 1.4 kg | 3.1 lbs | ||||
| Jaw Type | Description | Size (H x W) |
Opening | Weight of 1 grip with pair of jaws | ||
|
Rubber |
 |
1 mm rubber coating (NBR) |
30 x 30 |
0-48 mm |
1.1 kg | 2.5 lbs |
| 30 x 50 | 1.2 kg | 2.7 lbs | ||||
| 30 x 80 | 1.3 kg | 2.9 lbs | ||||
| 30 x 100 | 1.4 kg | 3.1 lbs | ||||
Included Items
(1) Pneumatic grip
(1) Set of jaws (2 jaws)
(1) Activation switch and tube mounted to the grip
Dimensions - mm
