Description

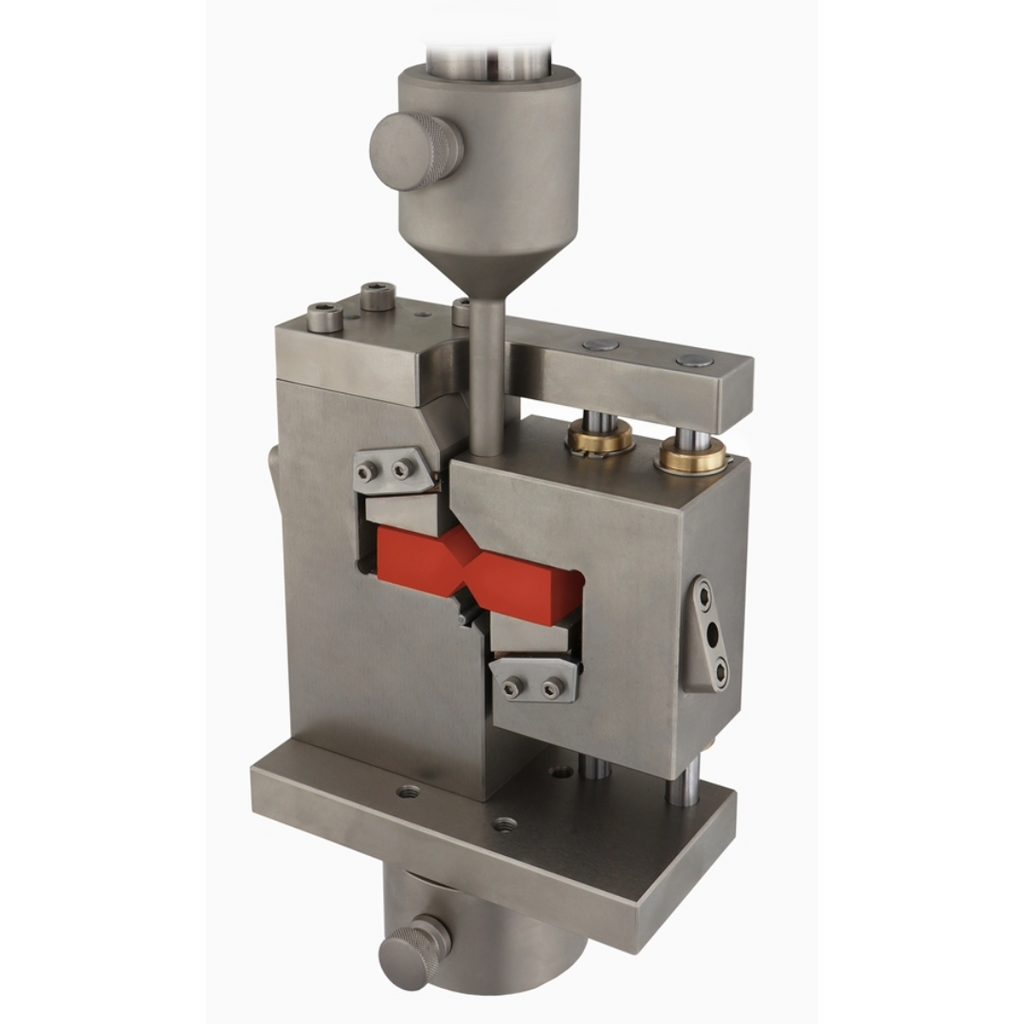

The V-Notched Beam Shear Test Fixture is designed for evaluating the shear properties of composite materials in accordance with Composite Materials Engineering ASTM D5379 (the Iosipescu method) test requirements. Commonly used for testing fiber-reinforced composites, laminates, and advanced engineered materials, the fixture provides accurate and repeatable shear loading through the standardized V-notched beam method. Its rigid construction and precision alignment help minimize unwanted bending stresses while ensuring consistent specimen positioning during testing.
Specifications
-
Force capacity: 50 kN (10,000 lbF)
- Opening: 18 mm-19.5 mm
-
Weight: 10 kg
-
Material: Steel, nickel-plated
- Connection: 31.8 mm (1 1/4") female eye end - Adapters for other sizes
-
Temperature range: -10 … +80°C
Included Items
1 fixture with compression probe and jaws

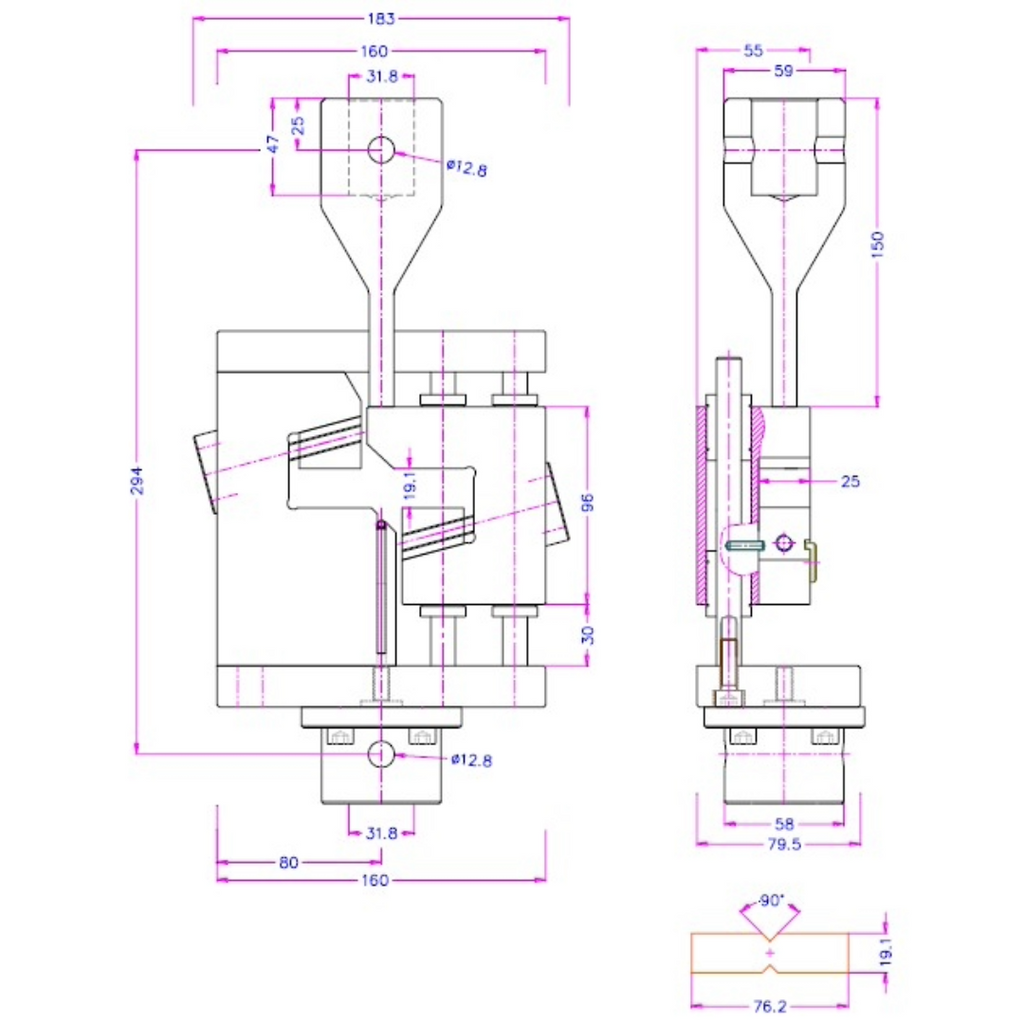

Dimensions - mm
