Mark-10 Digital Force Gauge Series 2 (M2)

Mark-10 SKU: M2-2

Choose a model: M2-2 [2 lbF Capacity]
Price:
Sale price$465.50 USD Regular price$490.00 USD
Lead Time: Ships in 1-3 business days

Most models are kept in stock. Please call, email or use the chat for the most accurate lead time.

Free Shipping
Free Shipping on orders $200 and up for orders placed online.
Credit card and PayPal are available at checkout. If you need a quote or want to issue a purchase order with payment terms please contact info@jlwinstruments.com or call 312-666-0595.
REQUEST CALIBRATON

Description

Series 2 digital force gauges for basic tension and compression force testing, this gauge will capture peak tension and compression.

The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.




Features

  • Calculates peak tension and compression values
  • 3 selectable units of measurement
  • Ultra-compact, ergonomic housing
  • Configurable default measurement unit and mode
  • 500 Hz sampling rate
  • Large, backlit graphic display with auto-dimming
  • Powered by rechargeable battery or AC adapter

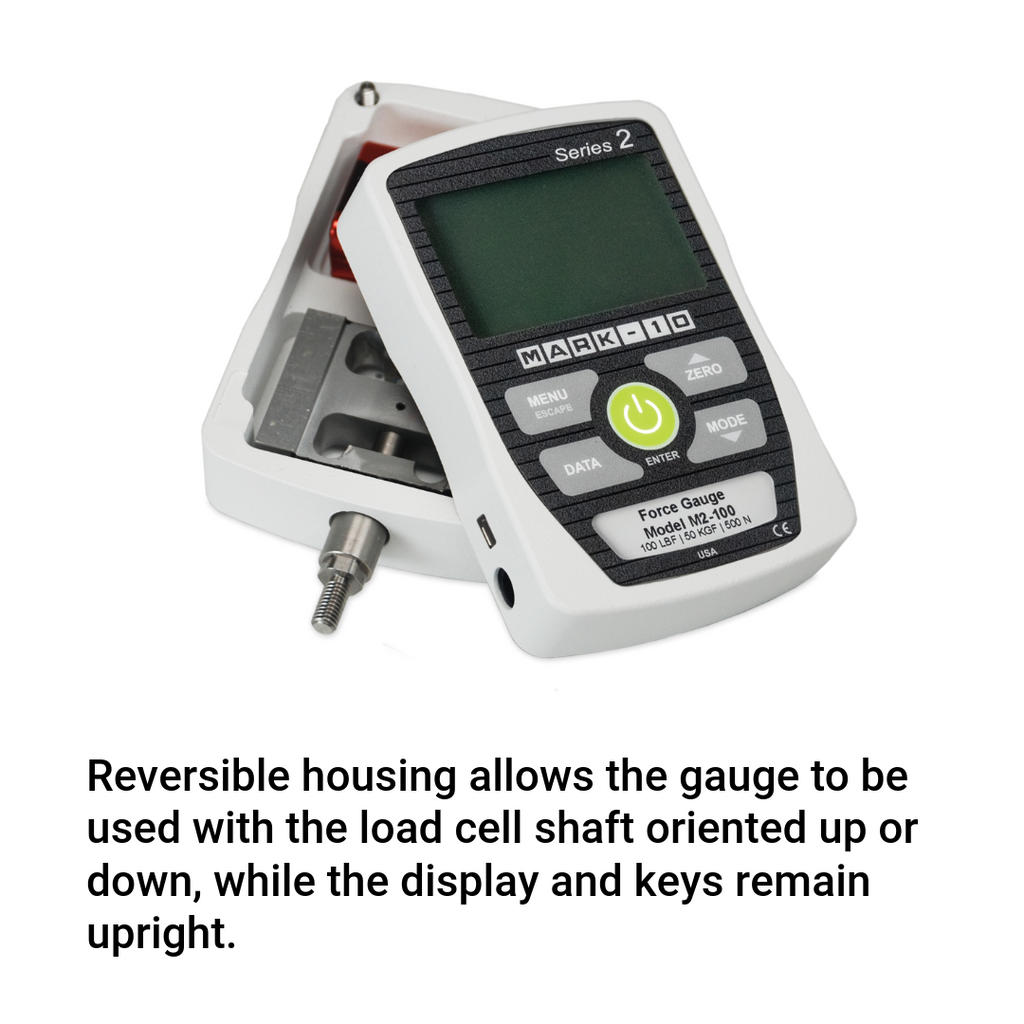

  • Reversible housing for alternate load cell orientation

Specifications

  • Accuracy: +/- 0.5% of full scale
  • Safe Overload: 200% of full scale
  • Sampling Rate: 500 Hz
  • Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
  • Battery life
    • Backlight on: up to 7 hours of continuous use
    • Backlight off: up to 24 hours of continuous use
  • Measurement Units: lbF, kgF, N
  • Weight
    • M2-2 – M2-100: 0.7 lb [0.33 kg]
    • M2-200 – M2-500: 0.9 lb [0.41 kg]
  • Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
  • Warranty: 3 years (see individual statement for further details)

    Included Items


    • Certificate of Conformance
    • AC adapter
    • Rechargeable battery (inside the gauge)

    This force gauge (Series 2) does not include attachments or a case. They are available to purchase. The Series 3 force gauge includes the attachments and case.


    Models Available

    Capacity x Resolution
    Model lbF kgF N
    M2-2 2 x 0.002 1 x 0.001 10 x 0.01
    M2-5 5 x 0.005 2.5 x 0.002 25 x 0.02
    M2-10 10 x 0.01 5 x 0.005 50 x 0.05
    M2-20 20 x 0.02 10 x 0.01 100 x 0.1
    M2-50 50 x 0.05 25 x 0.02 250 x 0.2
    M2-100 100 x 0.1 50 x 0.05 500 x 0.5
    M2-200 200 x 0.2 100 x 0.1 1000 x 1
    M2-500 500 x 0.5 250 x 0.2 2500 x 2



    If a higher force capacity, the Series 5 force gauge has capacities up to 2000 lbf (M5-2000)


    Optional Accessories

    Attachments for force gauges under 20 lbF
    23-1031-1 Attachment Kit includes the following parts
    G1028
    Small hook, #10-32F
    G1029 Flat head, #10-32F
    G1026 Cone, #10-32F
    G1025
    Chisel point, #10-32F
    G1027 V-groove, #10-32F
    G1024
    Extension rod, 5", #10-32F

    *The above kit has the small hook instead of the medium hook and coupling shown below. This lighter hook weighs less than the medium hook and coupling combination.

    Attachments for force gauges 5 lbF to 100 lbF
    23-1031-2 Attachment Kit includes the following parts
    G1038
    Medium hook, #10-32M (requires G1039)
    G1039
    Coupling, #10-32F/F
    G1029 Flat head, #10-32F
    G1026 Cone, #10-32F
    G1025
    Chisel point, #10-32F
    G1027 V-groove, #10-32F
    G1024
    Extension rod, 5", #10-32F



    Attachments for force gauges 200 lbF to 500 lbF
    23-1031-3 Attachment Kit includes the following parts
    G1035
    Large hook, 5/16-18M (requires G1037)
    G1037
    Coupling, 5/16-18F/F
    G1036 Flat head, 5/16-18F
    G1033 Cone, 5/16-18F
    G1032
    Chisel point, 5/16-18F
    G1034 V-groove, 5/16-18F
    G1031
    Extension rod, 5", 5/16-18F




      Documentation


      Dimensions

      Series 2 Force Gauge Dimensions





      Model Load Cell Thread
      M2-2 – M2-100 #10-32 UNF
      M2-200 – M2-500 5/16-18 UNC
