Series 2 Force Gauges

$394.25 $415.00

Choose a model
SKU: M2-2
Brand: Mark-10
Lead Time: Ships in 1-3 business days
Free Shipping
Free Shipping on orders $100 and up.
Credit card, PayPal and Amazon Pay are available at checkout. If you need a quote or want to pay with a PO please contact info@jlwinstruments.com.

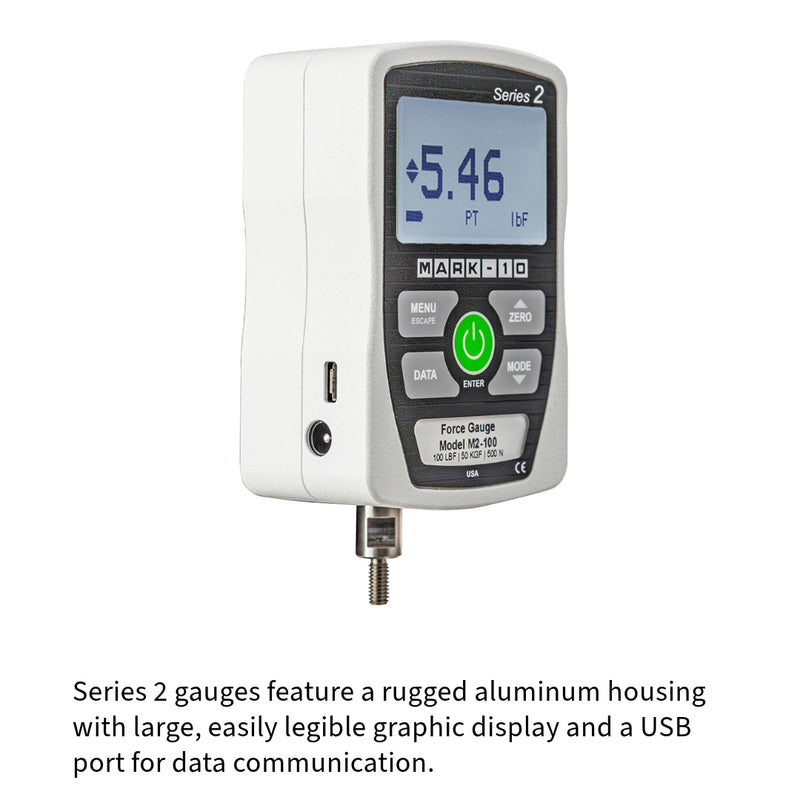

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2,500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

Features

  • Calculates peak tension and compression values
  • 3 selectable units of measurement
  • Ultra-compact, ergonomic housing
  • Configurable default measurement unit and mode
  • 500 Hz sampling rate
  • Large, backlit graphic display with auto-dimming
  • Powered by rechargeable battery or AC adapter
  • Reversible housing for alternate load cell orientation


Specifications

  • Accuracy: +/- 0.5% of full scale
  • Safe Overload: 200% of full scale
  • Sampling Rate: 500 Hz
  • Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
  • Battery life
    • Backlight on: up to 7 hours of continuous use
    • Backlight off: up to 24 hours of continuous use
  • Measurement Units: lbF, kgF, N
  • Weight
    • M2-2 – M2-100: 0.7 lb [0.33 kg]
    • M2-200 – M2-500: 0.9 lb [0.41 kg]
  • Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
  • Warranty: 3 years (see individual statement for further details)

    Included Items

    Included Items

    • Certificate of Conformance
    • AC adapter
    • Rechargeable battery
    • Quick-start guide
    • Resource CD (user manuals)

    Models Available

    Capacity x Resolution
    Model lbF kgF N
    M2-2 2 x 0.002 1 x 0.001 10 x 0.01
    M2-5 5 x 0.005 2.5 x 0.002 25 x 0.02
    M2-10 10 x 0.01 5 x 0.005 50 x 0.05
    M2-20 20 x 0.02 10 x 0.01 100 x 0.1
    M2-50 50 x 0.05 25 x 0.02 250 x 0.2
    M2-100 100 x 0.1 50 x 0.05 500 x 0.5
    M2-200 200 x 0.2 100 x 0.1 1000 x 1
    M2-500 500 x 0.5 250 x 0.2 2500 x 2





    Optional Accessories

    Attachments for force gauges under 20 lbF
    23-1031-1 Attachment Kit includes the following parts
    G1028
    Small hook, #10-32F
    G1029 Flat head, #10-32F
    G1026 Cone, #10-32F
    G1025
    Chisel point, #10-32F
    G1027 V-groove, #10-32F
    G1024
    Extension rod, 5", #10-32F

    *The above kit has the small hook instead of the medium hook and coupling shown below. This lighter hook weighs less than the medium hook and coupling combination.

    Attachments for force gauges 5 lbF to 100 lbF
    23-1031-2 Attachment Kit includes the following parts
    G1038
    Medium hook, #10-32M (requires G1039)
    G1039
    Coupling, #10-32F/F
    G1029 Flat head, #10-32F
    G1026 Cone, #10-32F
    G1025
    Chisel point, #10-32F
    G1027 V-groove, #10-32F
    G1024
    Extension rod, 5", #10-32F



    Attachments for force gauges 200 lbF to 500 lbF
    23-1031-3 Attachment Kit includes the following parts
    G1035
    Large hook, 5/16-18M (requires G1037)
    G1037
    Coupling, 5/16-18F/F
    G1036 Flat head, 5/16-18F
    G1033 Cone, 5/16-18F
    G1032
    Chisel point, 5/16-18F
    G1034 V-groove, 5/16-18F
    G1031
    Extension rod, 5", 5/16-18F





    Attachments Available for M2-2 - M2-100 Digital Force Gauges
    G1038
    Medium hook, #10-32M (requires G1039)
    G1039
    Coupling, #10-32F/F
    G1029 Flat head, #10-32F
    G1026 Cone, #10-32F
    G1025
    Chisel point, #10-32F
    G1027 V-groove, #10-32F
    G1024
    Extension rod, 5", #10-32F
    23-1031-2
    Attachments kit (qty. 1 of G1038 through G1024)



    Attachments Available for M2-200 - M2-500 Digital Force Gauges
    G1035
    Large hook, 5/16-18M (requires G1037)
    G1037
    Coupling, 5/16-18F/F
    G1036 Flat head, 5/16-18F
    G1033 Cone, 5/16-18F
    G1032
    Chisel point, 5/16-18F
    G1034 V-groove, 5/16-18F
    G1031
    Extension rod, 5", 5/16-18F
    23-1031-3
    Attachments kit (qty. 1 ea. of G1035 through G1031)



      Documentation

      Dimensions

      Push pull gauge dimensional drawing

      Force Gauge Comparison

      Mark-10
      Series Series 2 Series 3 Series 4 Series 5 Series 7
      Mark-10 Series 2 Digital Force Gauge Mark-10 Series 3 Digital Force Gauge Mark-10 Series 4 Digital Force Gauge Mark-10 Series 5 Digital Force Gauge Mark-10 Series 7 Digital Force Gauge
      Capacities 2 to 500 lbf
      10 to 2,500 N      		 0.12 to 500 lbf
      .5 to 2,500 N      		 0.12 to 500 lbf
      .5 to 2,500 N      		 0.12 to 2,000 lbf
      0.5 to 10,000 N      		 0.12 to 500 lbf
      0.5 to 2,500 N
      Accuracy 0.5% FS 0.3% FS 0.2% FS 0.1% FS 0.1% FS
      Data Outputs - USB USB, RS-232, Mitutoyo, Analog
      Calibration Cert. of Conformance included. NIST & ISO Optional NIST (No Data) Included. NIST with Data & ISO Optional NIST Included. ISO Optional

      Chatillon
      Series DFX2 (DFX-II) DFE2 (DFE-II) DFS2 (DFS-II)
      Chatillon DFX-II Digital Force Gauge Chatillon DFE-II Digital Force Gauge Chatillon DFS-II Digital Force Gauge
      Capacities 10 to 200 lbf
      50 to 1,000 N      		 2 to 500 lbf
      10 to 2,500 N      		 0.5 to 500 lbf
      2.5 to 2,500 N
      Accuracy 0.3% FS 0.25% FS 0.2% FS
      Data Outputs - USB, RS-232, Mitutoyo, Analog
      Calibration Cert. of Conformance included. NIST & ISO Optional NIST Included. ISO Optional



      Related Products
      23-1031 Series Force Gauge Attachment Kits
      Attachment kit includes a hook, flat, V-groove, point, chisel, and extension rod.  Designed for use with force gauges, manual test stands and motorized test stands.   Attachments for force gauges under 20 lbF 23-1031-1 Attachment Kit in...
      12-1049 Carrying Case
      Carrying case for Mark-10 Series 2 force gauges. Compartments in case will hold the force gauge and accessories.
      AC1030, AC1031, AC1032, AC1035 AC Adapters
      AC Adapters / chargers for Mark-10 force and torque gauges and indicators.
      Universal AC adapters / chargers for Mark-10 force and torque gauges and indicators.   Model Description AC1030 AC adapter / charger, 110V AC1031 AC adapter / charger, 220V EUR AC1032 AC adapter / charger, 220V UK AC1035...
      08-1026 Rechargeable Battery
      For use with all Mark-10 force gauges and torque gauges powered by rechargeable batteries.  Note: The 08-1006 battery, which was used with legacy Mark-10 gauges (Series BG, BGI, EG, and CG), is no longer available. The 08-1026 battery may be used ...
