Self-Aligning Compression Plates, Compression Plates, JLWForce
Roll over image to zoom in Click on image to zoom

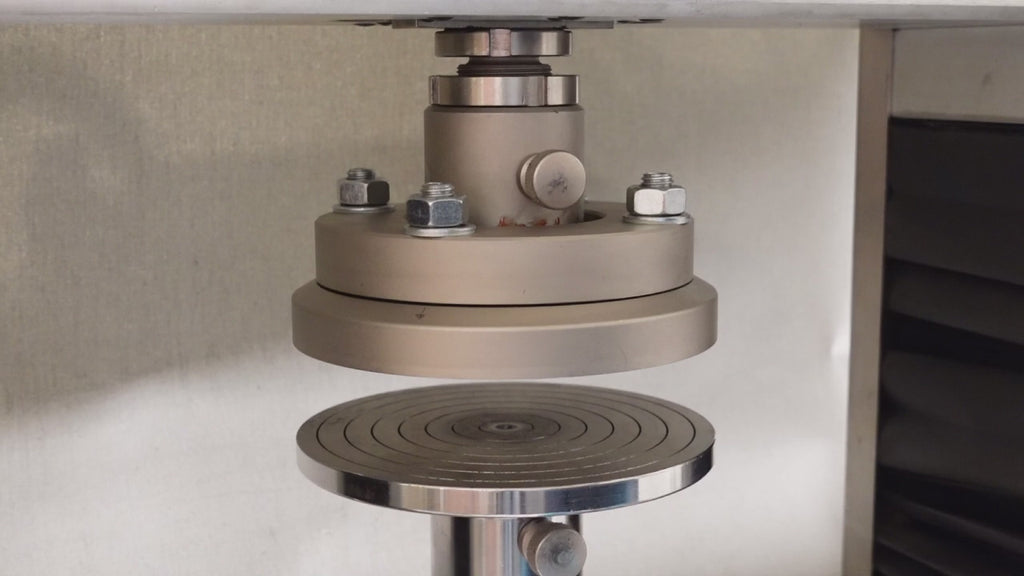

Self-Aligning Compression Plates, Compression Plates, JLWForce

Self-Aligning Compression Plates, 20 kN Force Capacity

Compression Plates, Probes, and Crush Fixtures

JLWForce SKU: SAP56-ST
Choose a model: SAP56-ST [56 mm diameter]
Price:
$845.00 USD
Lead Time: Ships in 3-6 business days
Free Shipping
Free Shipping on orders $200 and up for orders placed online.
Credit card and PayPal are available at checkout. If you need a quote or want to issue a purchase order with payment terms please contact info@jlwinstruments.com or call 312-666-0595.

If the adapter you need isn't listed above, we offer a variety of additional adapter options.

Please call if you need help identifying the correct adapter, 312-666-0595.

Description

Self-aligning compression plates are designed to adjust to angular displacement of the material being tested. These plates can also be set to a fixed position by tightening the nuts.

Self-aligning platens are designed for compression testing materials with uneven surfaces, variable load distribution, and angular misalignment between surfaces. These platens adapt to the changes in non-uniform loading.

Common materials self-aligning platens are used for testing; rubber, plastics, heavy duty springs, building products, composites and ceramics.

This compression plate features a 5/8" integrated eye end, the standard eye end size for Lloyd Instruments, Chatillon, and Mark-10 products. Furthermore, Adapters are available to mount these compression plates on any brand of test stand, load cell, or force gauge.
Specifications
  • Force Capacity: 20 kN [4500 lbF]
  • Swiveling angle: ±1.5°
  • Material:  Steel 58 HRC, nickel-plated
  • Temperature Range: -70 … +280°C
  • Connection: 15.9 mm (5/8") female eye end - Adapters for other sizes
  • Scope of delivery is 1 compression plate.



Self-aligning compression plate dimensions
Diameter [A] Radius [R] Weight
Model mm inches mm kg lbs
SAP56-ST 56 2.2 100 1.27 2.79
SAP96-ST 96 3.78 100 1.4 3.08
SAP116-ST 116 4.56 100 1.7 3.74
SAP156-ST 156 6.14 100 2.7 5.94
SAP196-ST 196 7.72 100 3.95 8.69



Eye End Connection Dimensions - mm
Fitting dimensions



Downloads

Self-Aligning Compression Plate Data Sheet
