Vice Grips for Tensile Testing

20 products

Showing 1 - 20 of 20 products

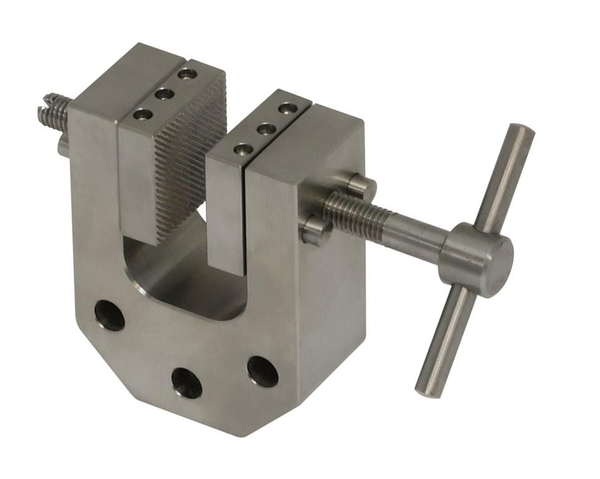

Vice grips are versatile grips used in tensile, peel and some compression testing applications. The side action screw allows for different thicknesses of samples and can be offset. Jaws can be changed to different surfaces including pyramid (crosscut), rubber, wave and v-jaw.

Connections on our grips and fixtures are threaded or have a female eye end. Grips and fixtures with a female eye end will have a 5/8" or 1.25" diameter. These sizes are standard for Lloyd Instruments, Chatillon, and Mark-10 equipment. We also sell these brands of test stands, load cells, and force gauges to use with our grips and fixtures.

We have adapters to fit our grips and fixtures to any test stand brand including Instron, MTS, Zwick, Shimpo, and more.

If you need assistance to determine which grip, fixture or adapter is needed, please contact us.

Showing 1 - 20 of 20 products

VG200, 200 lbF Vice Grip with Jaw Options, Vice Grips, JLWForce

JLWForce VG200, 200 lbF Vice Grip with Jaw Options

SKU: VG200-P30, VG200-P50, VG200-P80, VG200-P100, VG200-R30, V...

Force capacity: 1 kN (200 lbF)
Jaw sizes (mm): 30 x 30, 30 x 50, 30x80, 30x100
Jaw types: Pyramid, Rubber, V-Jaw and Wave
Opening: 0-30 mm

From $374.00 USD

VG500, 500 lbF Vice Grip with Jaw Options, Vice Grips, JLWForce

JLWForce VG500, Vice Action Tensile Grip with 500 lbF Force Capacity

SKU: VG500-P30, VG500-P50, VG500-P80, VG500-P100, VG500-R30, V...

Force capacity: 2.5 kN (500 lbF)
Jaw sizes (mm): 30 x 30, 30 x 50, 30x80, 30x100
Jaw types: Pyramid, Rubber, V-Jaw and Wave
Opening: 0-10 mm

From $431.00 USD

G1101, Parallel Jaw Grip, Medium, Vice Grips, Mark-10

Mark-10 Mark-10 G1101, Parallel Jaw Grip, 200 lbF

SKU: G1101

Force capacity: 1 kN (200 lbF)
Jaw sizes (mm): 30 x 30
Jaw type: Pyramid
Opening: 0-30 mm
Weight: 0.5 kg (1.0 lbs)

$370.50 USD $390.00 USD

VG1000, 1000 lbF Vice Grip with Jaw Options, Vice Grips, JLWForce

JLWForce VG1000, 1000 lbF Vice Grip with Jaw Options

SKU: VG1000-P50, VG1000-R50, VG1000-V15, VG1000-V30, VG1000-W5...

Force capacity: 5 kN (1,000 lbF)
Jaw sizes (mm): 30 x 50
Jaw types: Pyramid, Rubber, V-Jaws
Opening: 0-28 mm

From $625.00 USD

JLWForce VG1000-S50 Vice Action Tensile Grip 5KN 50mm Opening

SKU: VG1000-S50-P50, VG1000-S50-R50, VG1000-S50-V50, VG1000-S5...

Force capacity: 5 kN (1,000 lbF)
Jaw sizes (mm): 30 x 50, 30 x 100 mm
Jaw types: Pyramid, Rubber, V-Jaws
Opening: 0-50 mm

From $705.00 USD

G1100, Parallel Jaw Grip, Large, Vice Grips, Mark-10

Mark-10 Mark-10 G1100 Large Tensile Parallel Jaw Vice Grip

SKU: G1100

Force capacity: 10 kN (2,000 lbF)
Jaw size (mm): 40 x 60
Jaw types: Pyramid
Opening: 0-34 mm (1.34 in)
Weight: 2.7 kg (5.9 lbs)

$674.50 USD $710.00 USD

G1106, Self Centering Vise Grip, Vice Grips, Mark-10

Mark-10 Mark-10 G1106 Self Centering Vise Grip

SKU: G1106

Force capacity: 2.5 kN (500 lbF)
Jaw width: 2.1 in
Opening: 0-2 in

$845.50 USD $890.00 USD

Film and Paper Grips, Vice Grips, Mark-10

Mark-10 Mark-10 Film and Paper Grips G1008, G1015-1/-2/-3

SKU: G1008, G1015-1, G1015-2, G1015-3

Force capacity: 500 N (100 lbF)
Jaw width (in): 1, 3, 5, 7
Jaw type: Serrated
Opening: 0-30 mm
Weight: 0.14-0.41 kg (0.31-0.9 lbs)

From $285.00 USD $300.00 USD

Mark-10 Mark-10 Miniature Film and Paper Peel Grip G1124

SKU: G1124

Force capacity: 250 N (50 lbF)
Opening: 0 - 3.8 mm (0-0.15 in)
Weight: 0.04 kg (0.08 lb)

$256.50 USD $270.00 USD

G1013, Parallel Jaw Grip, Vice Grips, Mark-10

Mark-10 Mark-10 G1013, Parallel Jaw Grip

SKU: G1013

Force capacity: 1 kN (200 lbF)
Jaw width: 31.8 mm (1.25 in)
Jaw type: Pyramid
Opening: 0-6 mm (0-0.25 in)
Weight: 0.29 kg (0.75 lbs)

$242.25 USD $255.00 USD

VG1000-S100, 100mm Opening Vice Grips, Vice Grips, JLWForce

JLWForce VG1000-S100, 100mm Opening Vice Grips

SKU: VG1000-S100-P80, VG1000-S100-R80

Force capacity: 5 kN (1,000 lbF)
Jaw size (mm): 30 x 80
Jaw types: Pyramid
Opening: 0-100 mm (0-4 in)

$1,264.00 USD

G1074 Standard Vise Grip, Vice Grips, Mark-10

Mark-10 Mark-10 Test Stand Standard Vise Grip (G1074)

SKU: G1074

Force capacity: 2.5 kN (500 lbF)
Jaw width: 1.5 in
Opening: 0-1.5 in

$351.50 USD $370.00 USD

JLWForce VG210 Vice Grip for Peel and Tensile Testing

SKU: VG210-P30, VG210-R30, VG210-V30, VG210-W30

Force capacity: 1 kN (200 lbF)
Jaw dimensions: 30 x 30 mm
Jaw types: Pyramid, Rubber, V-Jaw and Wave
Opening: 0-10 mm

$392.00 USD

VG470 Small Vice Grip (Pincer Grip), Vice Grips, JLWForce

JLWForce VG450 Small Vice Grip (Pincer Grip)

SKU: VG450

Force capacity: 2 kN (450 lbF)
Opening: 0 – 10 mm
Pyramid (serrated) jaws, pyramids 1.2 x 45°

$686.00 USD

ASTM D5034

JLWForce Textile Fabric Grab Test Vice Grips, Pull Test to ASTM D5034

SKU: VG500-W25x50-D5034

Force capacity: 500 lbF [2.5 kN]
Jaws: 25 x 25 mm, 25 x 50 mm

$761.00 USD

JLWForce VG100, Small Vice Action Tension Grip, 100 lbf Capacity

SKU: VG100-P25-AF159, VG100-P50-AF159, VG100-R25-AF159, VG100-...

Force capacity: 500 N (100 lbF)
Jaw sizes: 10 x 25, 10 x 50 mm
Jaw types: Pyramid, Rubber
Opening: 0-8, 0-6 mm

$363.00 USD

JLWForce VG200-S50, 200 lbF Vice Grip with 50 mm Opening

SKU: VG200-S50-P30, VG200-S50-P50, VG200-S50-P80, VG200-S50-P1...

Force capacity: 1 kN (200 lbF)
Jaw sizes (mm): 30 x 30, 30 x 50, 30x80, 30x100
Jaw types: Pyramid, Rubber, V-Jaw and Wave
Opening: 0-50 mm

From $424.00 USD

JLWForce FG20-P Fiber & Filament Lightweight Spring Loaded Grip

SKU: FG20-P

$550.00 USD

JLWForce VG20 Pincher (Pincer) Grip Small Sample Clamping

SKU: VG20-6P

Force capacity: 100 N (20 lbF)
Opening: 0 - 3 mm

$550.00 USD

JLWForce VG4000 Large Tensile Parallel Jaw Vice Grip

SKU: VG4000-P60

Force capacity: 20 kN (4,000 lbF)
Jaw size (mm): 40 x 60
Jaw types: Pyramid
Opening: 0-32 mm (1.26 in)
Weight: 5.37 kg (11.8 lbs)

$995.00 USD
